Поз.
Артикул
Описание
5

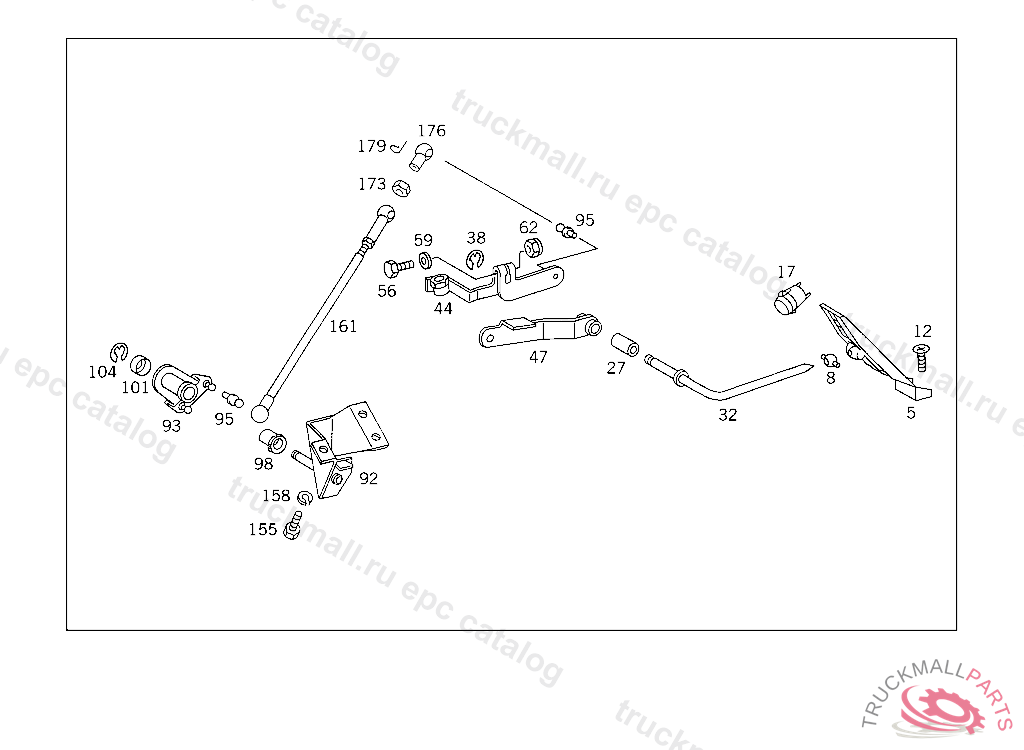

ACCELERATOR PEDAL
5
ACCELERATOR PEDAL
8
JOINT
12
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
17
STOP FULL THROTTLE
27
BUSHING ,B 892893
32
LEVER (PEDAL LEVER)
38
LOCK PLATE
44
LEVER (CONTROL LEVER)
47
LEVER (CONTROL LEVER)
56
SCREW BRACKET TO FRAME
59
WASHER PLUG SOCKET TO BRACKET
62
NUT , Replaced By: N913004006001
92
BRACKET REVERSING LEVER
93
LEVER
95
BALL STUD. BALL PIVOT TOP B10X4,5 MM
98
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
101
COVERING
104
LOCK PLATE
155
SCREW REDUCTION VALVE TO BRACKET
155
SCREW , Replaced By: A0079900801
158
LOCK WASHER RAIL TO BATTERY SUPPORT
161
ROD255 MM
161
ROD305 MM
173
NUT
176
BALL SOCKET AT CONTROL LEVER
176
BALL SOCKET PULL ROD TO LEVER
179
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
