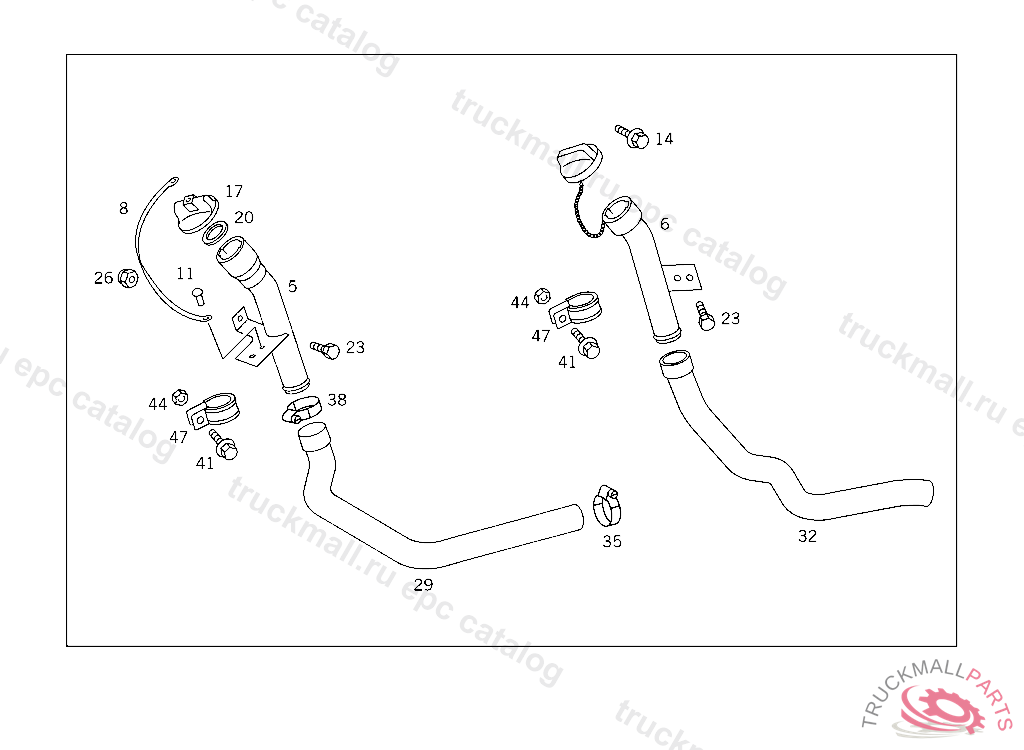

Поз.
Артикул
Описание
5
OIL FILLER NECK ,D 200054
6
OIL FILLER NECK ,D 200055
8
BRACKET (OIL FILLER PIPE),D 200054
11
RIVET ,800701
14
SCREW BRACKET TO OIL FILLER PIPE BRACKET,D 200055
17
COVER OIL FILLER NECK,D 200054
20
GASKET , Replaced By: A1020180080
20
GASKET COVER TO FITTING
23
SCREW , Replaced By: N910143008002
26
NUT HORN TO BRACKET M8
29
HOSE FROM OIL FILTER NECK TO ENGINE,D 200054
32
HOSE FROM OIL FILTER NECK TO ENGINE,D 200055
35
CLAMP , Replaced By: N000000000670
38
CLAMP , Replaced By: N000000000671
41
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
44
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
47
CLAMP , Replaced By: A3829950101
47
CLAMP
