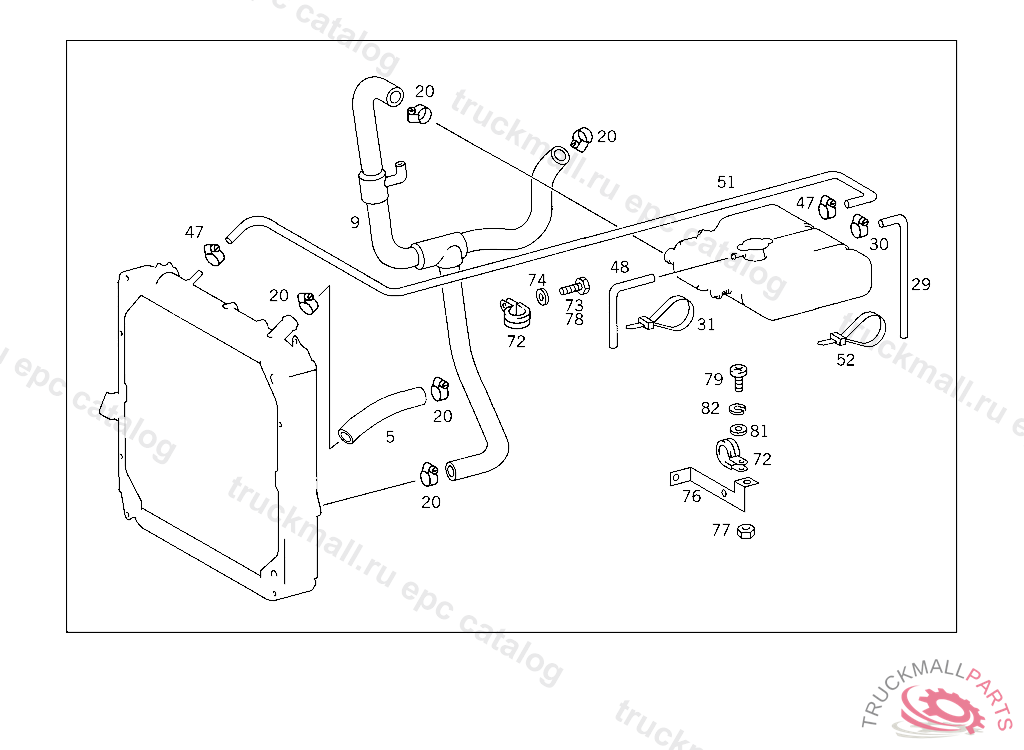

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
9
HOSE FROM RADIATOR TO WATER PUMP,D 247422
20
CLAMP , Replaced By: N000000000671
20
CLAMP
20
CLAMP , Replaced By: N000000000665
29
HOSE FROM ENGINE TO EXPANSION TANK
29
HOSE FROM EXPANSION TANK TO ENGINE 10X19X500
30
CLAMP HOSE TO FITTING AND TO OIL TANK
30
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
30
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
31
LOOM TIE ELECTRIC CABLE MOUNTING
31
LOOM TIE ELECTRIC CABLE MOUNTING
47
CLAMP , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
48
HOSE PARKING BRAKE VALVE,CONNECTION: "3"
51
HOSE , Replaced By: A6945010082
52
LOOM TIE
72
CLAMP SUCTION LINE TO CROSS MEMBER
72
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
72
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
73
SCREW BRACKET TO WATER RADIATOR
73
SCREW , Replaced By: N910105006023
73
SCREW LEVER TO ENGINE CONTROL SHAFT
74
WASHER TRAILER PLUG SOCKET TO BRACKET
76
BRACKET AT CYLINDER CRANKCASE
77
NUT
78
SCREW , Replaced By: N910143008002
79
SCREW CONTROL UNIT
81
WASHER PLUG SOCKET TO BRACKET
82
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
