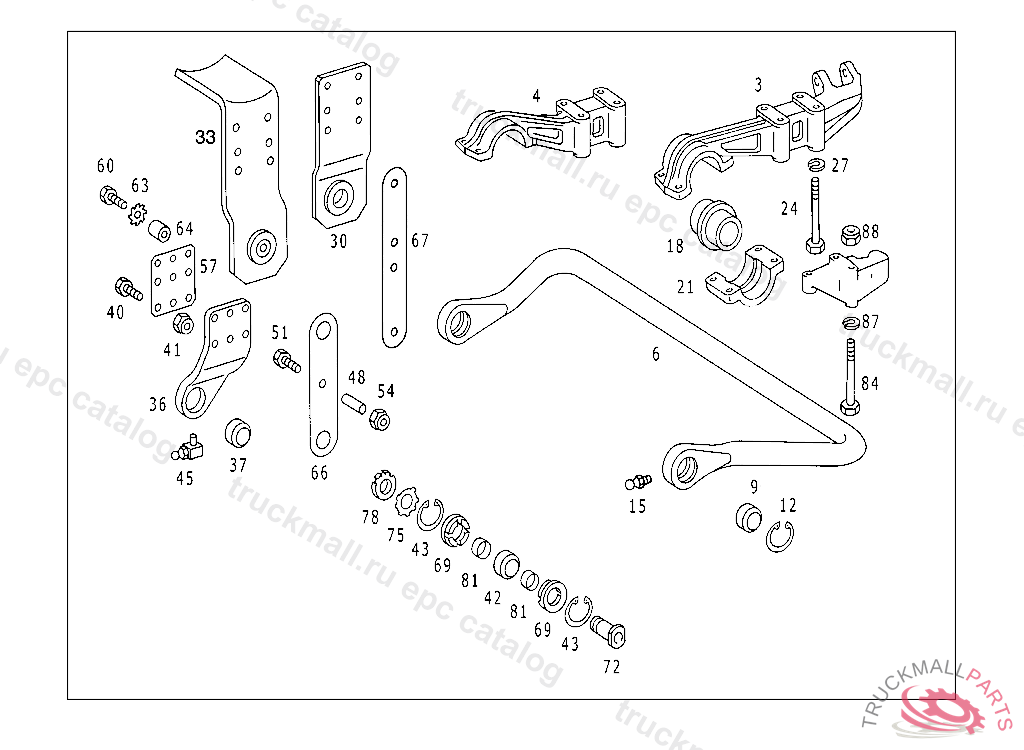

Поз.
Артикул
Описание
3
BRACKET LEFT STABILIZER
3
BRACKET LEFT STABILIZER
3
BRACKET RIGHT STABILIZER
3
BRACKET RIGHT STABILIZER
3
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
3
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
4
BRACKET RIGHT STABILIZER
4
BRACKET LEFT STABILIZER
6
TORSION BAR REAR AXLE
6
TORSION BAR , Replaced By: A3823207611
6
TORSION BAR REAR AXLE,D 005411
6
TORSION BAR REAR AXLE,D 005411
6
TORSION BAR , Replaced By: A3843207011
6
TORSION BAR REAR AXLE,D 005411
6
TORSION BAR REAR AXLE,D 005411
6
TORSION BAR , Replaced By: A3843207111
6
TORSION BAR ,D 005410
9
BUSHING
9
BUSHING
9
BUSHING
9
JOINT BEARING TORSION BAR TO LINK,5 903513
9
JOINT BEARING TORSION BAR TO LINK,5 903513
12
LOCK RING TORSION BAR TO LINK,5 903513
15
GREASE NIPPLE INTERMEDIATE LEVER
18
RUBBER MOUNTING TORSION BAR BEARING
18
RUBBER MOUNTING ,D 005411
18
RUBBER MOUNTING TORSION BAR BEARING
18
RUBBER MOUNTING TORSION BAR BEARING
18
RUBBER MOUNTING ,D 005411
18
RUBBER MOUNTING AT SHOCK ABSORBER BRACKET,D 005410
21
BRACKET AT SHOCK ABSORBER BRACKET
21
BRACKET STABILIZER TO FRONT AXLE
21
BRACKET AT SHOCK ABSORBER BRACKET
24
SCREW , Replaced By: N910105014010
24
SCREW , Replaced By: N910105014010
24
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
24
SCREW BATTERY CASE TO SIDE MEMBER
24
SCREW , Replaced By: N910105014010
24
SCREW BRACKET TO SPRING SADDLE M 14X1.5X110
24
SCREW , Replaced By: N910105014010
27
WASHER SHIFT LEVER TO PIVOT PIN
27
LOCK WASHER SUPPORT TO SIDE MEMBER
27
LOCK WASHER SUPPORT TO SIDE MEMBER
27
LOCK WASHER SUPPORT TO SIDE MEMBER
30
CONSOLE STABILIZER
30
CONSOLE STABILIZER
30
CONSOLE STABILIZER
33
CONSOLE RIGHT STABILIZER
33
CONSOLE LEFT STABILIZER
36
BEARING BRACKET RIGHT SIDE MEMBER,D 005411
36
BEARING BRACKET RIGHT SIDE MEMBER,D 005410
36
BEARING BRACKET LEFT SIDE MEMBER,D 005411
36
BEARING BRACKET LEFT SIDE MEMBER,D 005410
37
BUSHING
37
BUSHING
40
SCREW BEARING BRACKET TO SIDE MEMBER
40
SCREW BEARING BRACKET TO SIDE MEMBER
40
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
40
SCREW BEARING BRACKET TO SIDE MEMBER
40
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
40
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
40
SCREW BATTERY CASE
41
NUT , Replaced By: N910113016001
41
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
41
NUT , Replaced By: N910113016001
41
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
41
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
42
JOINT BEARING TORSION BAR TO LINK,5 903513
42
JOINT BEARING TORSION BAR TO LINK,5 903513
43
LOCK RING TORSION BAR TO LINK,5 903513
45
GREASE NIPPLE
45
GREASE NIPPLE
48
SPACER TUBE TORSION BAR TO BEARING BRACKET,D 228766
48
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
51
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
51
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
51
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M 12X1.5X75
51
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES 12X1.5X75,D 228765
54
NUT SUPPORT TO SIDE MEMBER
54
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
54
NUT SUPPORT TO SIDE MEMBER
57
PLATE. WEB STABILIZER
60
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
60
SCREW BEARING BRACKET TO SIDE MEMBER 16X1.5X35
60
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
63
SERRATED WASHER BEARING BRACKET AND PLATE TO FRAME
64
WASHER CONSOLE TO FRAME
66
LINK TORSION BAR TO BEARING BRACKET,D 005411
66
LINK TORSION BAR TO BEARING BRACKET,D 005410
66
LINK TORSION BAR TO BEARING BRACKET,D 005411
66
LINK HOLE SPACING: 270 MM, THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3843237116
66
LINK HOLE SPACING: 270 MM, THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3843237116
67
LINK TORSION BAR TO BEARING BRACKET
69
SEAL RING TORSION BAR TO BEARING BRACKET,D 005410
69
SEAL RING LINK TO BEARING BRACKET,5 903513
72
PIN TORSION BAR TO BEARING BRACKET,D 005410
75
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
78
NUT TORSION BAR TO BEARING BRACKET,5 904660
81
SPACER TUBE LINK TO BEARING BRACKET,5 903513
84
SCREW BRACKET TO SPRING SADDLE M 14X1.5X110
84
SCREW TORSION BAR TO BEARING BRACKET M14X1.5X80
84
SCREW BATTERY CASE
84
SCREW TORSION BAR TO BEARING BRACKET M14X1.5X80
84
SCREW ,5 903513, Replaced By: N308765016011
84
SCREW BRACKET TO SPRING SADDLE M 14X1.5X110
84
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
84
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
87
WASHER , Replaced By: N000125017016
87
LOCK WASHER SUPPORT TO SIDE MEMBER
88
NUT , Replaced By: N910113014000
88
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
BRACKET LEFT SHOCK ABSORBER
999
BRACKET RIGHT SHOCK ABSORBER
999
HELPER SPRING BRACKET LEFT REAR
999
HELPER SPRING BRACKET RIGHT REAR
999
BRACKET , Replaced By: A6953267140
999
BRACKET , Replaced By: A6953267340
