Поз.
Артикул
Описание

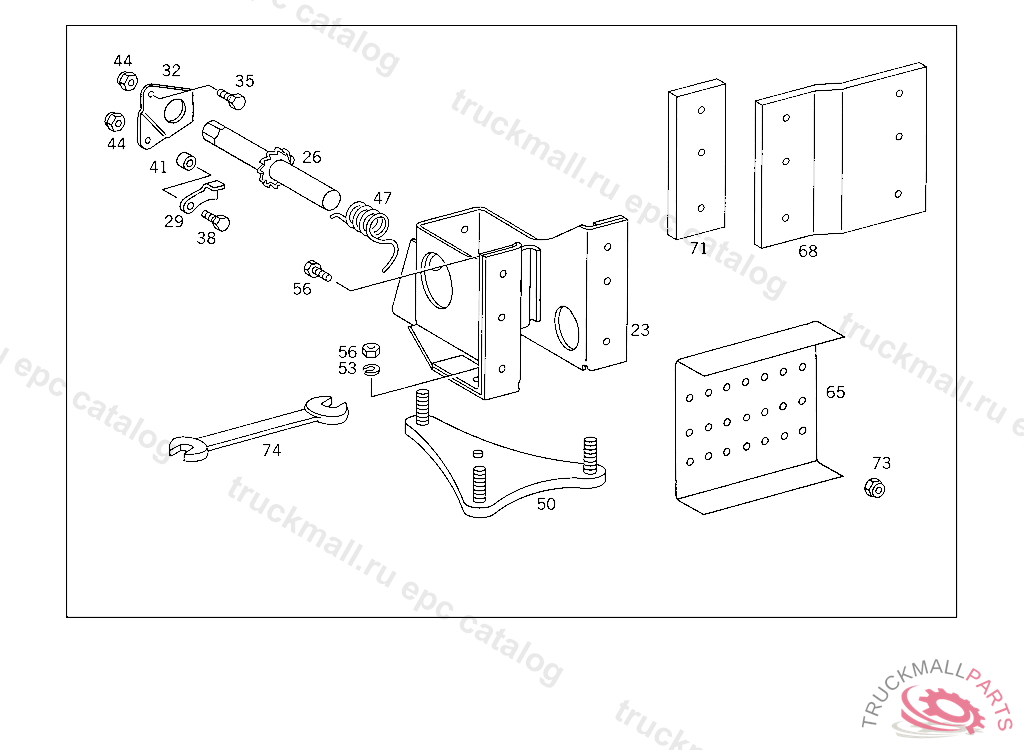

23
BRACKET SPARE WHEEL CARRIER
23
BRACKET SPARE WHEEL CARRIER
26
SHAFT
29
PAWL SHAFT TO SPARE WHEEL CARRIER
32
PLATE SHAFT TO SPARE WHEEL CARRIER
35
SCREW CROSS MEMBER TO SIDE MEMBERS
38
SCREW , Replaced By: N304017010040
41
BUSHING SHAFT TO SPARE WHEEL CARRIER
44
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
47
CABLE SPARE WHEEL CARRIER
50
BRACKET (10-HOLE RIM)
50
BRACKET (10-HOLE RIM)
53
LOCK WASHER BELL HOUSING TO TRANSMISSION
56
NUT SUPPORT TO SPARE WHEEL CARRIER
56
NUT CONTROL ARM TO REAR AXLE
65
REINFORCEMENT INSIDE
65
REINFORCEMENT INSIDE
68
REINFORCEMENT INSIDE
71
BASE BLOCK
73
NUT BRACKET TO BATTERY CASE
73
NUT , Replaced By: N910113014000
74
KEY. OPEN END WRENCH24/27
74
WRENCH
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO REAR CROSS MEMBER
999
SCREW ANGLE TO CROSS MEMBER M 10X30
999
WASHER BRACKET TO TRANSMISSION
999
BRACKET SPARE WHEEL MOUNTING
999
LEVER (CONTROL LEVER)
