Поз.
Артикул
Описание

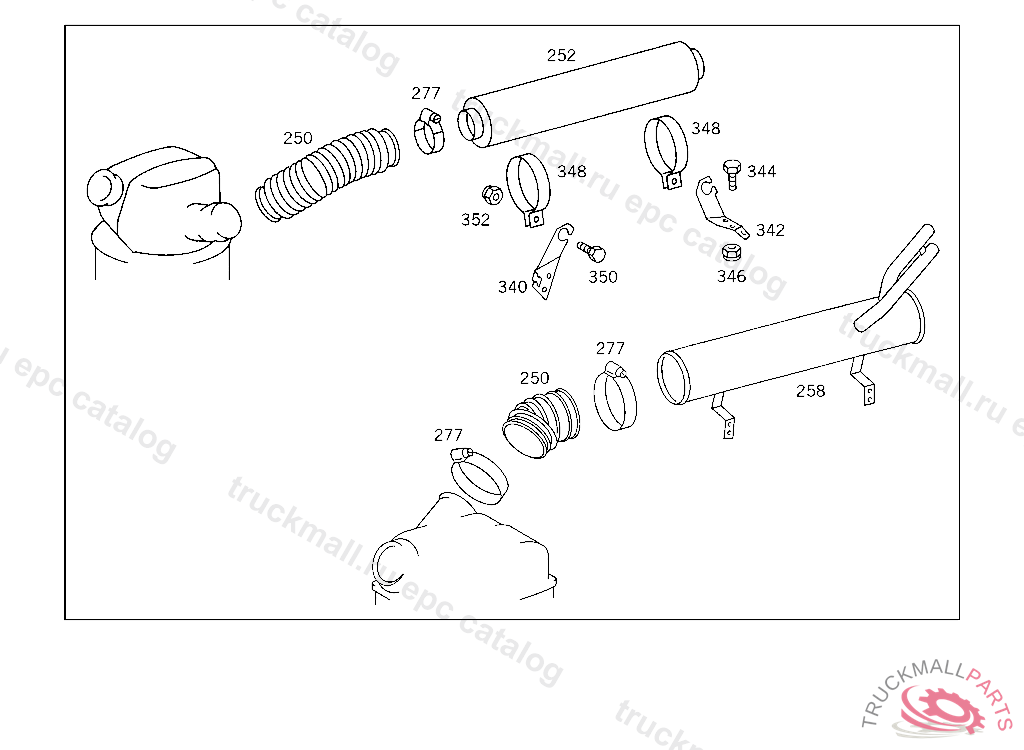

250
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
252
AIR CLEANER (INTAKE MUFFLER)
258
AIR INTAKE PIPE
277
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
277
CLAMP
277
CLAMP , Replaced By: A0059970690
340
BRACKET MUFFLER TO SIDE MEMBER
342
BRACKET MUFFLER TO SIDE MEMBER
344
SCREW , Replaced By: N304017008034
346
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
346
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
346
NUT , Replaced By: N913004008001
348
STRAP INTAKE MUFFLER
350
SCREW , Replaced By: N304017010002
350
SCREW BRACKET TO SIDE MEMBER
352
NUT , Replaced By: N910113010000
352
NUT STRAP TO BRACKET
999
WARNING INDICATOR AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
RING WARNING INDICATOR
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
999
STRAP AIR CLEANER TO SUPPORT
999
SUPPORT , Replaced By: A6565200033
999
SUPPORT , Replaced By: A6565200133
999
STRAP AIR CLEANER
999
CONSOLE FRAME
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR RIGHT
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
MUFFLER AIR CLEANER
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
SUPPORT AIR CLEANER
999
SUPPORT AIR CLEANER,4 785295
