Поз.
Артикул
Описание

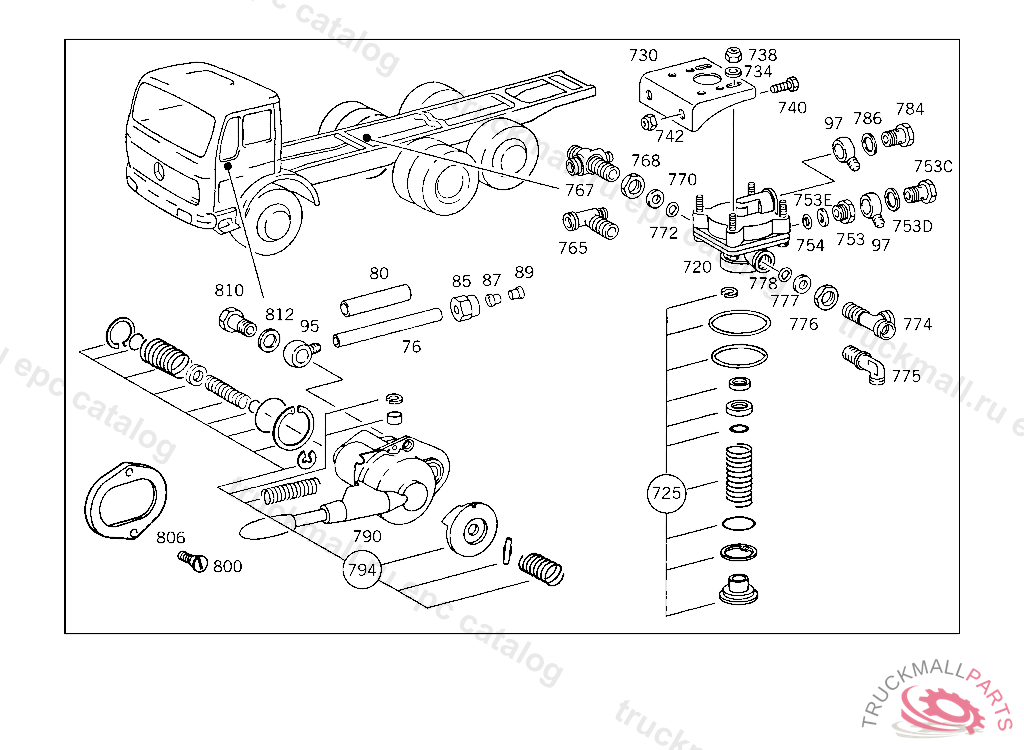

76
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
76
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
80
INSULATING HOSE RED, ORDER BY THE METER
85
UNION NUT , Replaced By: N915017008100
85
UNION NUT LINE CONNECTION
87
GLAND LINE CONNECTION
89
SLEEVE , Replaced By: N915062006000
89
SLEEVE LINE CONNECTION
95
BANJO UNION HEATING CONNECTION,K 169122
97
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
720
VALVE (RELAY VALVE) GRAU
720
VALVE (RELAY VALVE) GRAU
720
VALVE (RELAY VALVE) KNORR
720
VALVE (RELAY VALVE) KNORR
720
VALVE , Replaced By: A0034295344
720
VALVE (RELAY VALVE) WABCO
720
VALVE (RELAY VALVE) WABCO
720
VALVE (RELAY VALVE) BOSCH
720
VALVE (RELAY VALVE) BOSCH
720
VALVE , Replaced By: A0034291644
725
REPAIR KITWABCO
725
REPAIR KITWABCO
734
WASHER , Replaced By: N000125008443
734
WASHER EXHAUST MUFFLER TO STRAP
738
NUT , Replaced By: N913004008001
738
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
738
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
753
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
753
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
765
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
768
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
770
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
772
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
775
FITTING ,4 667210
775
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
776
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
777
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
777
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
778
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
778
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
784
HOLLOW SCREW , Replaced By: N915036012101
784
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
786
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
790
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
790
VALVE HAND BRAKE VALVE KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
790
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
790
VALVE HAND BRAKE VALVE KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
794
REPAIR KIT , Replaced By: A0004305760
794
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
800
SCREW ACCELERATOR PEDAL TO CAB M 6X25
806
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
810
HOLLOW SCREW , Replaced By: N915036010108
810
HOLLOW SCREW FUEL LINE TO FEED PUMP
812
SEAL RING FUEL LINE TO FEED PUMP
999
GREASE NIPPLE PROTECTIVE TUBE
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
INSULATING HOSE
999
INSULATING HOSE COLOR CODE BLUE,YB227219
999
SNAP RINGTO 000 431 94 14,000 431 96 14
999
SNAP RING GEAR INDICATOR TO INSTRUMENT PANEL
999
SEAL RING AT TANK
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING LINE CONNECTION
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING LINE CONNECTION
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING , Replaced By: N007603010110
999
UNION NUT , Replaced By: N915017012100
999
GLAND , Replaced By: A0019901967
999
GROOVED NAILTO 000 431 94 14,000 431 96 14,4 478329
999
PIN ROD TO BRACKET,4 628862
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW PEDAL TO CAB FLOOR
999
SCREW CONSOLE TO CONSOLE
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT INTERMEDIATE SPEED STOP
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO SIDE MEMBER M 12X40
999
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
SCREW , Replaced By: N304017008016
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW BRACKET TO BELL HOUSING
999
SCREW STRAP TO BRACKET
999
SCREW REAR AXLE REGULATING SOLENOID VALVE
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW PLUG , Replaced By: N000908012009
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 001 431 71 14,001 431 73 14
999
LOCK RING22X1.2,TO 001 431 71 14
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PINROCKINGER,TYP 59 U150
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN PUSH ROD TO BRAKE PEDAL
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
999
LEVER , Replaced By: A6744310039
999
BRACKET , NOT USED
999
LINE , Replaced By: A6254293501
999
WASHER BUMPER BRACKET TO COUPLING MOUTH
999
FITTING CONNECTION TO STOP LIGHT SWITCH
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GROMMET BATTERY CABLE THRU SIDE MEMBER
999
CLAMP BRAKE LINE TO REAR AXLE,4 644238
999
BRACKET (REGULATING VALVE),4 478330
999
BRACKET TEST CONNECTION
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET BRAKE POWER REGULATOR
999
BRACKET BRAKE VALVE
999
BRACKET INTERMEDIATE LEVER,6 003895
999
BRACKET , Replaced By: A3854313240
999
SPACER TUBE INTERMEDIATE LEVER TO BRACKET,6 003895
999
LEVER , Replaced By: A6204310839
999
CONNECTOR ,4 219724
999
ROD FROM CONNECTOR TO REAR AXLE II,6 003895
999
ROD , Replaced By: N900331008420, +001A0004310667, +001N000934008010
999
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 4 316398, Replaced By: A3854302692
999
ROD , Replaced By: N900331008427, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
BRACKET REAR AXLE I,6 003895
999
BRACKET RIGHT FRONT BRAKE HOSE,4 677168
999
BRACKET LEFT FRONT BRAKE HOSE,4 677168
999
BRACKET RIGHT FRONT BRAKE HOSE TO FRONT AXLE
999
LEVER LEFT, 402,407 FROM CHASSIS 657000
999
ROD REAR, REAR AXLE I,4 272929
999
SUPPORT , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415, Replaced By: A3854260240, +001A3854310853, +001N000931010379, +001N913004010008
999
LINE , Replaced By: A6194290801
999
HUB , NOT USED
999
SPACER TUBE VALVE TO CROSS MEMBER
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SPACER TUBE TEST CONNECTION TO BRACKET, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
999
ROD ,4 478504, Replaced By: N900331008426, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3604292940
999
ANGLE LINE MOUNTING
999
LEVER , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 349554, Replaced By: A3854200681
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 349554, Replaced By: A3854200581
999
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
999
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
999
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
999
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
PROTECTIVE CAP , Replaced By: A0004210887
999
CLAMP 3/2-WAY SOLENOID VALVE
999
BUSHING ,4 2827078 000001-8 001702
999
CLAMP BRAKE LINE MOUNTING
999
VALVE CLUTCH SLAVE CYLINDER
999
SEAL RING BRAKE HOSE
999
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
999
THREADED UNION PRESSURE REGULATOR,CONNECTION "3",5 148813 ORDER BY THE METER
999
SEAL RING , Replaced By: A0049970248
999
SEAL RINGTO 001 431 43 05
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER TEVES,TO 001 431 35 05,001 431 43 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
WHEEL BRAKE CYLINDER , WITH OFFSET BLEEDER CONNECTION WITH 8-MM,OR 10-MM,MOUNTING SCREWS EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0044206818
999
SEAL RINGTO 000 431 95 14,4 847617
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER SCHAEFER,TO001 431 94 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
FITTING , Replaced By: A0029906171
999
SEAL RINGBOSCH
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER, NOT FOR USE WITH MERCEDES-BENZ CAB
999
WHEEL BRAKE CYLINDER , WITH 8-MM,OR 10-MM,MOUNTING SCREWS, Replaced By: A0074202018
999
SEAL RINGTO 000 431 95 14,4 847617
999
SEAL RINGTO 000 439 95 14,4 847617
999
SEAL RINGTO 000 431 95 14,4 847617
999
SEAL RINGTO 001 431 71 14,001 431 73 14
