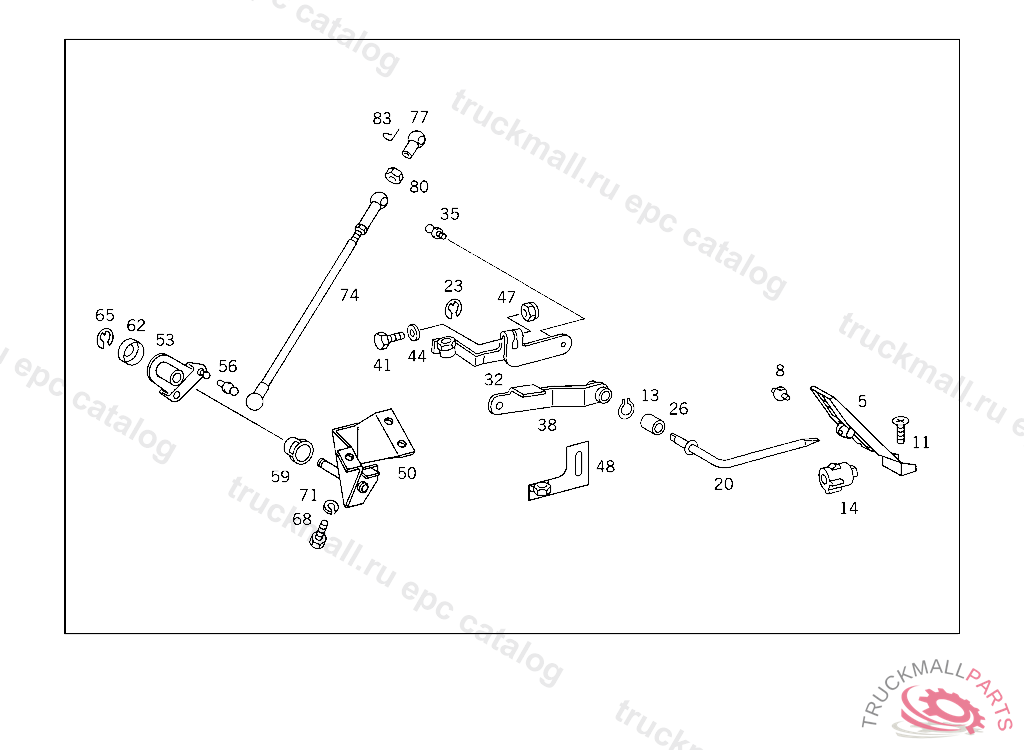

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
13
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
14
STOP FULL THROTTLE
20
LEVER (PEDAL LEVER)
23
LOCK PLATE
26
BUSHING ,B 892893
32
LEVER (CONTROL LEVER)
35
BALL PIVOT INTERMEDIATE LEVER
38
LEVER (CONTROL LEVER)
41
SCREW BRACKET TO FRAME
44
WASHER PLUG SOCKET TO BRACKET
47
NUT PUMP TO BRACKET
48
BRACKET REVERSING LEVER,B 915840
48
BRACKET REVERSING LEVER,B 915841
50
BRACKET REVERSING LEVER
53
LEVER
56
BALL PIVOT INTERMEDIATE LEVER
59
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
62
COVERING , Replaced By: A4073015088
62
COVERING
65
LOCK PLATE
68
SCREW SWITCH TO BRACKET 8X16
71
LOCK WASHER TAIL LAMP TO BRACKET
74
ROD265 MM
74
ROD305 MM
77
BALL SOCKET PULL ROD TO LEVER
80
NUT
83
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
