Поз.
Артикул
Описание

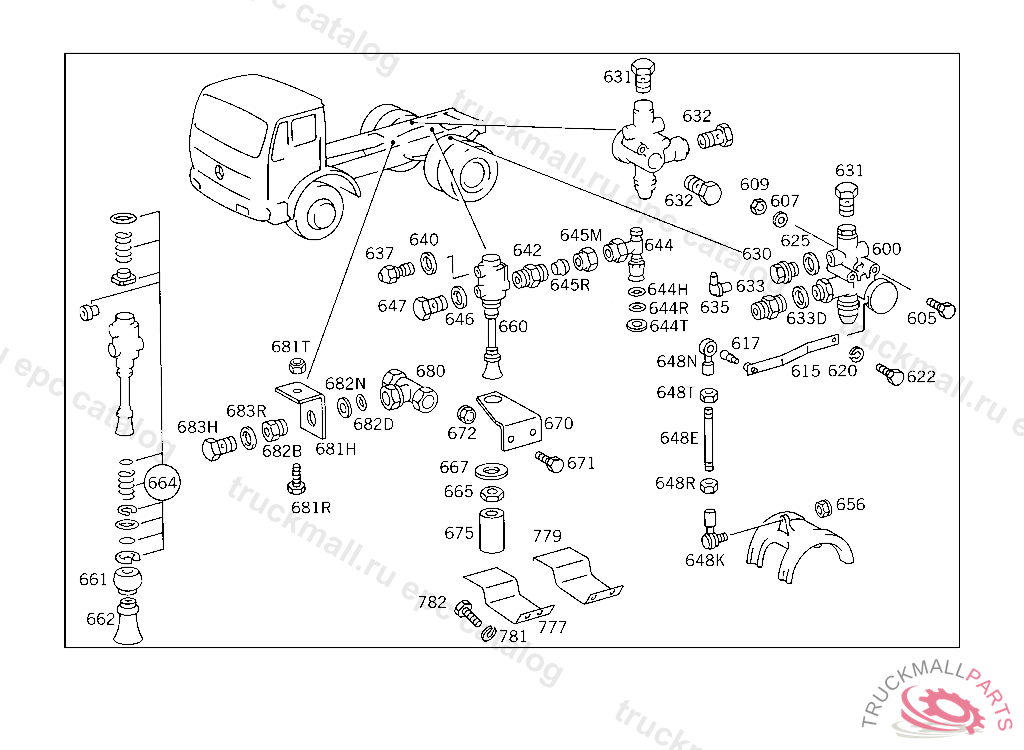

600
VALVE
600
VALVE , Replaced By: A0003283230
605
SCREW FRONT AXLE REGULATING SOLENOID VALVE
605
SCREW , Replaced By: N000933008134
607
WASHER ANTE-FREEZE DEVICE TO STRAP
609
NUT , Replaced By: N913004008001
609
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
615
LEVER , Replaced By: A6523200527
617
BALL PIVOT BOTTOM B13X5 MM
620
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
622
SCREW , Replaced By: N304017008016
622
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
625
SEAL RING LINE CONNECTION
630
SCREW PLUG , Replaced By: N000908012009
630
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
631
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
632
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
633
FITTING RELAY VALVE,CONNECTION: "40",5 359430
633
FITTING , Replaced By: A0029979572
637
VALVE (CHECK VALVE)
640
SEAL RING LINE CONNECTION
642
FITTING , Replaced By: A0019972572
642
SCREW-IN FITTING LINE CONNECTION
642
FITTING LINE CONNECTION, Replaced By: N000000006446
644
VALVE (TEST VALVE), 415 5 014668 416 5 000515 417 4 972023
647
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
660
VALVE (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE, 415 5 014668 416 5 000515 417 4 972023
660
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004342501
661
CUP 3/2-WAY VALVE WABCO
662
HANDLE , 415 5 014668 416 5 000515 417 4 972023
664
REPAIR KIT 3/2-WAY VALVE WABCO
665
NUT , Replaced By: N080705026003
665
NUT 3/2-WAY VALVE TO CAB,4 685151
667
LOCK PLATE VALVE TO BRACKET
670
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE
671
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
671
SCREW , Replaced By: N304017008027
672
NUT , Replaced By: N913004008001
672
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
675
RUBBER BUFFER AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE, 415 5 014668 416 5 000515 417 4 972023
680
VALVE TWO-WAY VOSS
680
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
779
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED4 2751984 602074, Replaced By: A3933200543, +001A3933280284
779
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE,4 602075
781
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
782
SCREW CLAMP TO BRACKET AND TO PIPE
999
SLEEVE LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW LINE TO OIL RADIATOR
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
UNION NUT LINE CONNECTION
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N910113010002
999
NUT , Replaced By: N910113010000
999
LOCK WASHER FITTING TO BRACKET
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
HEXAGON NUT
999
NUT STRAP TO BRACKET
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
999
NUT L.H. THREAD
999
NUT
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING , Replaced By: A0009970171
999
NUT CHECK VALVE TO AIR RESERVOIR
999
GREASE NIPPLE
999
SCREW
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING FUEL LINE TO FEED PUMP
999
FITTING OIL LINE CONNECTION
999
GLAND LINE CONNECTION
999
SCREW , Replaced By: N000963008036
999
SCREW FOR SPRING CLAMPS
999
SCREW BRACKET TO SHIM, 415 5 014668 416 5 000515 417 4 972023
999
SCREW BRACKET TO TORSION BAR,4 9511495 554754
999
SCREW TORSION BAR TO BEARING BRACKET M 16X115,5 903514
999
SCREW SPACER TUBE TO MOUNTING
999
SCREW SHOCK ABSORBER TO TOP BRACKET
999
NUT , Replaced By: N304035008001
999
NUT , Replaced By: N304035008002
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SPRING LEAFNO.3
999
SPRING LEAFNO.9
999
SPRING LEAFNO.8
999
SPRING LEAFNO.7
999
SPRING LEAFNO.6
999
SPRING LEAFNO.5
999
REPAIR KIT , Replaced By: A3955860332
999
REPAIR KIT , Replaced By: A3953200165
999
PLATE FRONT SPRINGS TO FRONT AXLE
999
SHACKLE PIN , Replaced By: A3955860232
999
SHACKLE PIN PARTS KIT
999
TORSION BAR ,4 275576
999
SPRING SEAT TORSION BAR TO REAR AXLE,LEFT,5 554754
999
ADHESIVE FOIL GUIDE SIGN
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
SHIM FRONT SPRINGS TO FRONT AXLE
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 335/270 MM,5 0636025 184731
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 335/225 MM,5 0636025 184731
999
U-BOLT , Replaced By: A3873310825, +002A6203310026, +002A3873310144
999
RUBBER BUFFER SPRING STOP
999
PIN FRONT SPRINGS TO FRONT AXLE 26 MM
999
ROD
999
GROMMET LINE MOUNTING 19/13 MM
999
SHACKLE PIN , Replaced By: A3955860232
999
SPRING LEAFNO.10
999
SPRING LEAF , Replaced By: A6593210619
999
SPRING LEAF , Replaced By: A6593210618
999
SPRING LEAF , Replaced By: A6593210617
999
SPRING LEAF , Replaced By: A6593210616
999
SPRING LEAF , Replaced By: A6593210615
999
SPRING LEAF , Replaced By: A6593210713
999
BRACKET , Replaced By: A3183281840
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3094921819
999
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
FITTING
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
FITTING , Replaced By: A0029905971
999
GROMMET AT SIDE MEMBER,5 314333
999
SEAL RING5X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING4 X 1.50 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING8X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
999
LOOM TIE ,4 809255
999
FITTING (PARTS KIT),LINE RUPTURE
999
BALLTO 003 429 22 44
999
VALVE
999
LOOM TIE LINE MOUNTING 280 MM
999
ELBOW FITTING CAB FLOOR
999
T-FITTING EXTENSIBLE BRAKE VALVE, 4 691696
999
REPAIR KITBOSCH
999
REPAIR KITTO 001 429 52 44
999
HANDLE
999
HANDLE ,5 292411
999
FITTING , Replaced By: A0039979972
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
BUSHING , Replaced By: N915062009000
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BANJO UNION , Replaced By: N915052006013
999
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
HOLLOW SCREW , Replaced By: N915047008100
999
T-FITTING 3/2-WAY VALVE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
REPAIR KITWABCO
999
REPAIR KIT WITH BALL PIVOT TO 393 350 55 05, 658 350 00 05 ,
999
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS ON KNORR VALVE SV 1280-I/69324, Replaced By: A0003201067
999
REPAIR KIT CONTROL VALVE KNORR SV 3111-I/73100,K 186867
999
OPERATING PLATE
999
YOKE TOP
999
YOKE BOTTOM
999
VALVE BODYTO 002 429 95 44
999
VALVE , Replaced By: A0004291182
999
DIAPHRAGM
999
VALVE , Replaced By: A0004290782
999
DIAPHRAGM , Replaced By: A0004290745
999
VALVE (CHECK VALVE)
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
GASKETTO 003 429 22 44
999
VALVE SEAT RINGWABCO,5 433388
999
BUSHINGWABCO,5 433388
999
JOINT (CENTRAL JOINT) TO 658 350 00 05,EHRENREICH
999
JOINT (CENTRAL JOINT) TO 393 350 54 05,LEMFOERDER
999
REPAIR KIT CENTRAL JOINT,WITH BALL PIVOT TO 393 350 55 05, EHRENREICH
999
JOINT (CENTRAL JOINT) TO 393 350 55 05,EHRENREICH
999
REPAIR KIT. JOINT WITH BALL PIVOT
999
PROTECTIVE CAP , Replaced By: A0003290092
999
PROTECTIVE CAPTO 000 329 04 25,000 329 08 25,K 186867
999
BOOT ,5 292411
999
BOOT
999
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 957391, Replaced By: A0003280292
999
BOOT ,4 809255
999
PROTECTIVE CAP ,4 809255
999
SPACER RINGTO 002 323 86 00,003 323 03 00,
999
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
999
REPAIR KIT AIR SPRING VALVE
999
REPAIR KIT CONTROL VALVE KNORR SV 3111-I/83153,K 186867
999
VALVETO 000 329 04 25,000 329 08 25,K 186867
