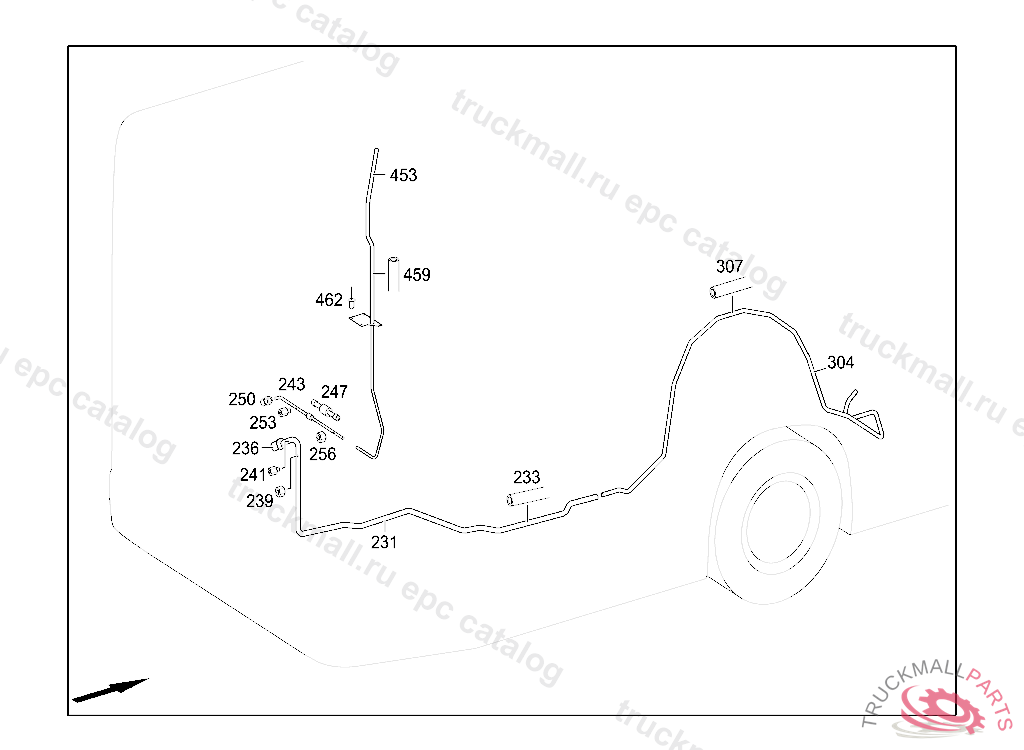

CITARO 18M 4-TUERER - 628.252 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
231
233
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
236
PIPE SOCKET1/1 16",D22MM
239
PIPE SOCKET
241
PIPE SOCKET
243
247
NON-RETURN VALVE
250
FITTING3/4"
253
PIPE SOCKET
256
PIPE SOCKET
304
304
307
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
307
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
453
459
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
459
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
462
RIVET NAME PLATE TO BRACKET
999
CLEANER
