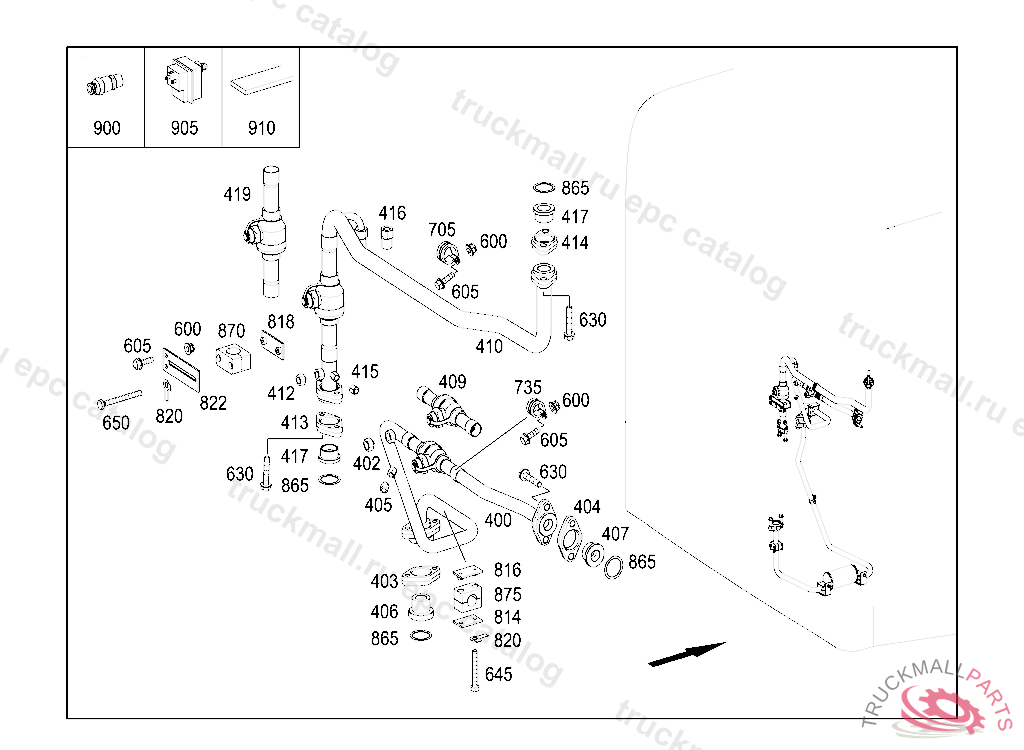

Поз.
Артикул
Описание
400
PIPE LINE
400
PIPE LINE
402
PIPE SOCKET
403
FLANGE
404
FLANGE NOT THREADED D36MM
405
PIPE SOCKET
406
FITTING
407
FITTING
409
SHUT-OFF VALVENW20
409
VALVE , Replaced By: A0048305784
410
PIPE LINE
412
PIPE SOCKET
413
FLANGE
414
FLANGE NOT THREADED D36MM
415
PIPE SOCKET
416
FITTING3/4"
417
FITTING
419
SHUT-OFF VALVENW25
419
VALVE , Replaced By: A0048305884
600
NUT BRACKET TO FIRE WALL
605
SCREW BRACKET AND CLAMP M6X20
630
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
645
SCREW APPARATUS PLATE M 6X45
650
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
705
MOUNTING CLAMP28/15
705
CLAMP CABLE HARNESS MOUNTING
705
CLAMP28/15, Replaced By: A0019951842
735
CLAMP22/15, Replaced By: A0019951442
735
CLAMP DELIVERY AND SUCTION LINES TO FRAME
735
MOUNTING CLAMP22/15
814
BACKPLATE MOUNTING FOR PRESSURE AND RETURN LINE TO A 000 553 17 86
816
PLATE MOUNTING FOR PRESSURE AND RETURN LINE TO A 000 553 17 86
818
TRAY
820
LOCK
822
BRACKET
865
GASKET34X42 MM
870
RUBBER MOUNTING MOUNTING FOR PRESSURE AND RETURN LINE 28MM
875
RUBBER MOUNTING LINE MOUNTING 22 MM
900
VALVE. FILLING VALVE ON SUCTION SIDE
905
OIL-BREAK SWITCH ON DELIVERY SIDE
905
OIL-BREAK SWITCH ON SUCTION SIDE 0,4 BAR
910
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
CABLE TIE LINE MOUNTING 375X8.4MM
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
