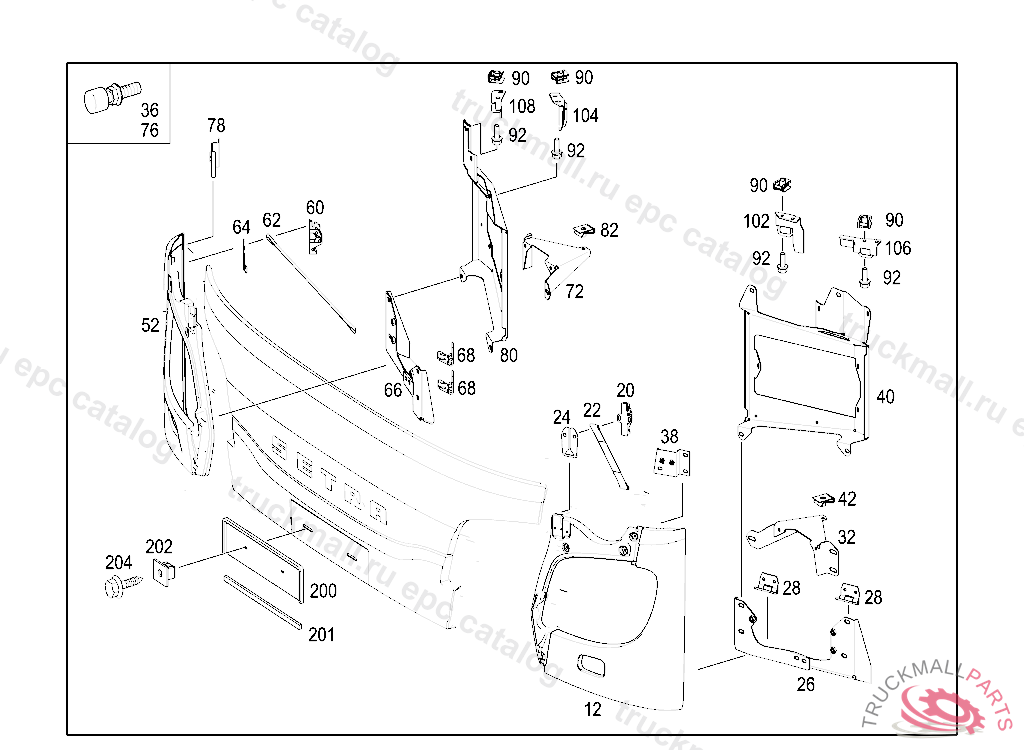

Поз.
Артикул
Описание
12
BUMPERETTE WITH FOGLAMP
20
LOCK
22
BAND
24
BRACKET
26
BRACKET
28
HINGE
32
BRACKET
36
BUFFER LEFT, FROM CHASSIS: 010 077937
38
BRACKET
40
BRACKET
42
LOCK. NUT , Replaced By: A0039941745
52
BUMPERETTE WITH FOGLAMP
60
LOCK
62
BAND
64
BRACKET
66
BRACKET
68
HINGE
72
BRACKET
76
BUFFER LEFT, FROM CHASSIS: 010 077937
78
BRACKET
80
BRACKET
82
LOCK. NUT , Replaced By: A0039941745
90
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
92
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
92
SCREW , Replaced By: N914146006102
102
BRACKET
104
BRACKET
106
BRACKET
108
BRACKET
200
BRACKET
200
BRACKET LINCENSE PLATE BRACKET
201
BRACKET
202
LOCK LICENSE PLATE TO BUMPER
204
COMBINATION BOLT VACUUM LINE TO SHOCK ABSORBER CONSOLE
