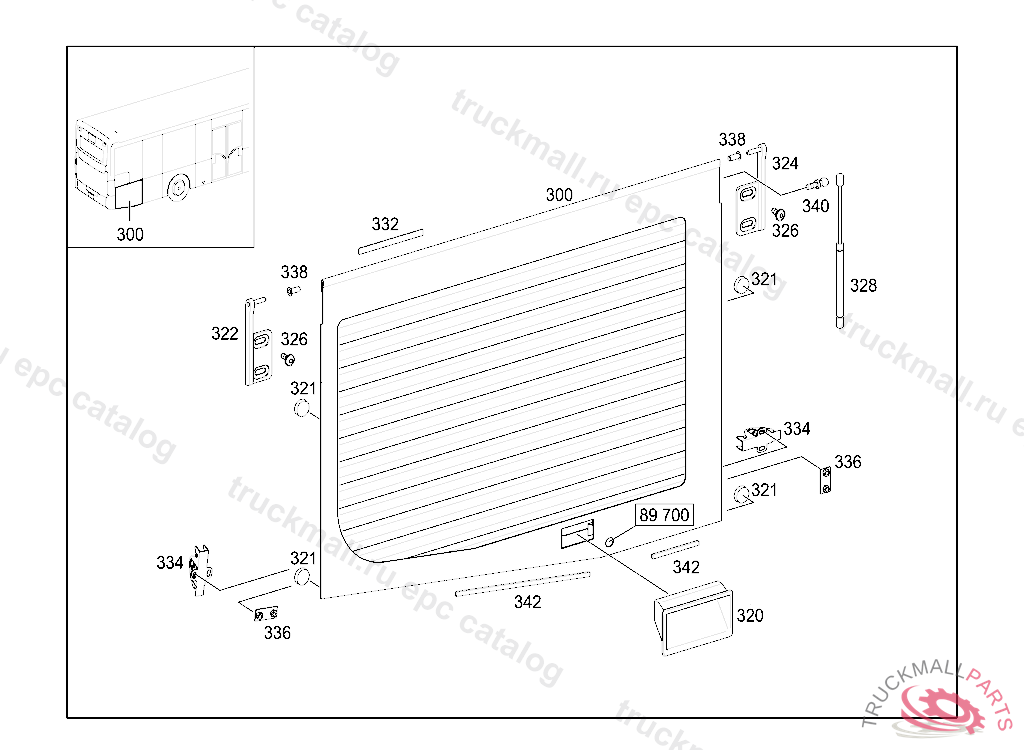

S 416 NF - 628.887 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
300
FLAP RADIATOR FLAP
320
HANDLE
321
RUBBER BUFFER
322
MOUNTING
324
MOUNTING
326
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X16
328
GAS SPRING
332
ADHESIVE TAPE2,5X10 MM, TO BE ADAPTED DURING ASSEMBLY ORDER BY THE METER
334
LOCK
336
PLATE
338
BUSHING
340
BALL PIVOT ACCELERATOR PEDAL
342
SEALING TAPE. ADHESIVE TAPE AIR INTAKE PIPE TO BRACKET
