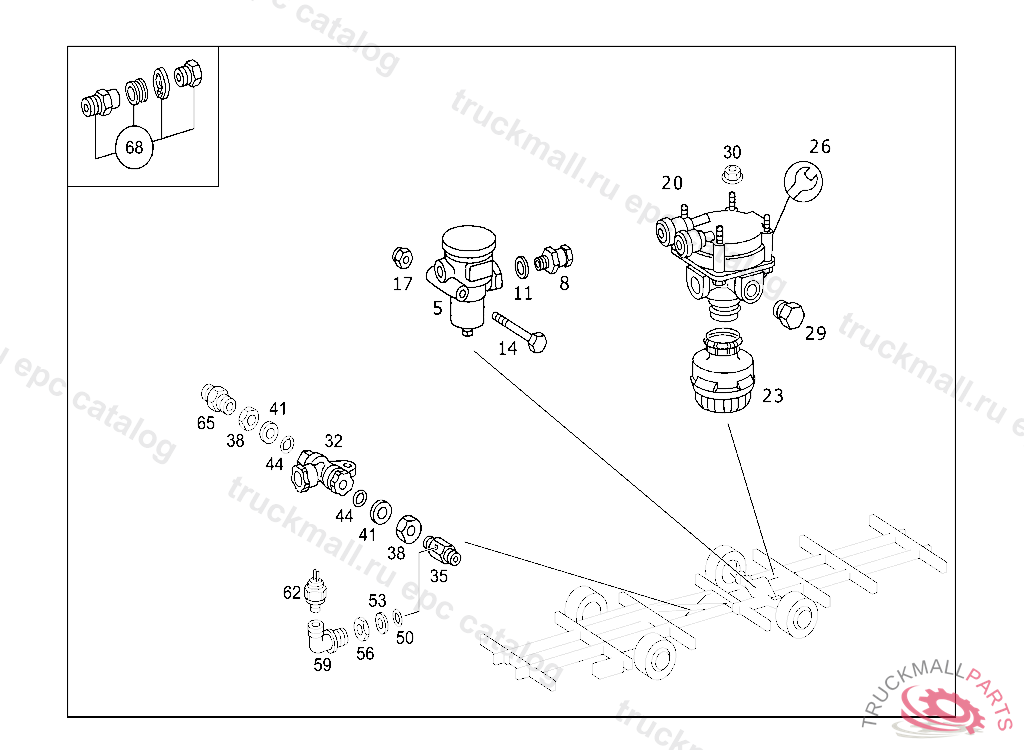

Поз.
Артикул
Описание
5
VALVE PRESSURE LIMITER 2.4BAR
5
VALVE SHUTTLE VALVE
8
FITTINGM 16X1.5
11
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
11
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
14
HEXALOBULAR BOLT BRACKET TO BRACKET
17
NUT HORN TO BRACKET M8
20
VALVE (RELAY VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
MUFFLER VALVE BLEEDING
26
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
29
SCREW PLUG AIR RESERVOIR
30
NUT HORN TO BRACKET M8
32
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
32
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
35
FITTING TWO-WAY VALVE,CONNECTION: "2" M22X1.5/M22X1.5/M12X1.5
38
NUT CHECK VALVE TO AIR RESERVOIR
41
THRUST RING CHECK VALVE TO AIR RESERVOIR
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
44
O-RING CHECK VALVE TO AIR RESERVOIR
44
SEAL RING LINE CONNECTION
50
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
50
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
53
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
53
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
53
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
56
SCREW. UNION SCREW LINE CONNECTION
56
NUT BULKHEAD FITTING TO BRACKET
59
ELBOW FITTING CAB FLOOR
59
FITTING
62
SWITCH COMPRESSOR
62
SWITCH SUPPLY PRESSURE CONTROL
65
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
VALVE (QUICK-RELEASE VALVE) WABCO
