Поз.
Артикул
Описание
10

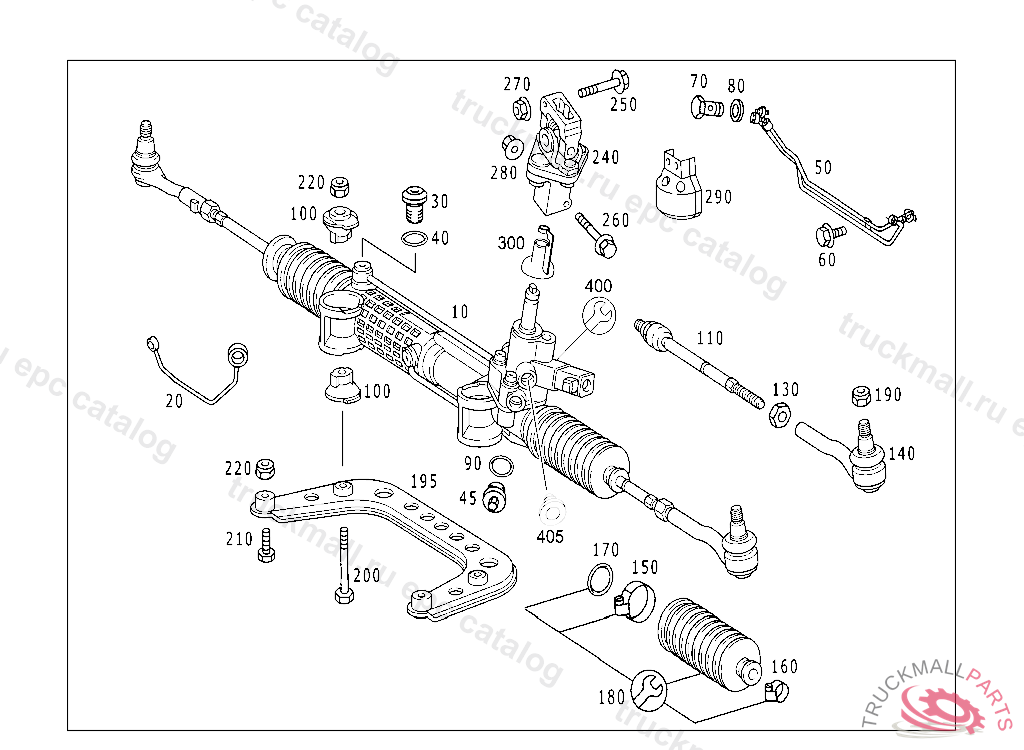

STEERING BOX ASSEMBLY RACK-AND-PINION STEERING
10
STEERING BOX ASSEMBLY RACK-AND-PINION STEERING
10
STEERING BOX ASSEMBLY RACK-AND-PINION STEERING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
LINE
30
SCREW LINE TO STEERING
40
SEAL RING LINE TO STEERING
45
HOLLOW SCREW LINE TO STEERING
50
LINE (OIL LINE)
60
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
70
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
70
BANJO BOLT OIL LINE TO PUMP
80
SEALING RING. SEAL RING ENGINE BREATHING
80
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
90
SEAL RING LINE TO STEERING
100
RUBBER MOUNTING AT STEERING GEAR
110
TIE ROD LEFT AND RIGHT INSIDE
130
NUT BRACKET TO SIDE MEMBER,K 035196
140
TIE ROD OUTSIDE LEFT
140
TIE ROD OUTSIDE RIGHT
150
CLAMPING PIECE LEFT AND RIGHT INSIDE
160
CLAMPING PIECE LEFT AND RIGHT OUTSIDE
170
SEAL RING INNER BOOT ON STEERING
180
REPAIR KIT RACK-AND-PINION STEERING
190
NUT FOR TAPPING SCREW SPRING CONTROL ARM TO WHEEL BEARING
195
MOUNTING PLATE STEERING TO CROSS MEMBER
200
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
210
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
210
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
220
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
240
STEERING COUPLING ,A 166260
250
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
260
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
270
NUT STEERING COUPLING TO STEERING GEAR,A 166260
280
NUT STEERING COUPLING TO STEERING GEAR,A 166260
290
COVERING STEERING COUPLING
300
BOOT RACK-AND-PINION STEERING
400
RS PROPORTIONAL VALVE
405
PLUG
