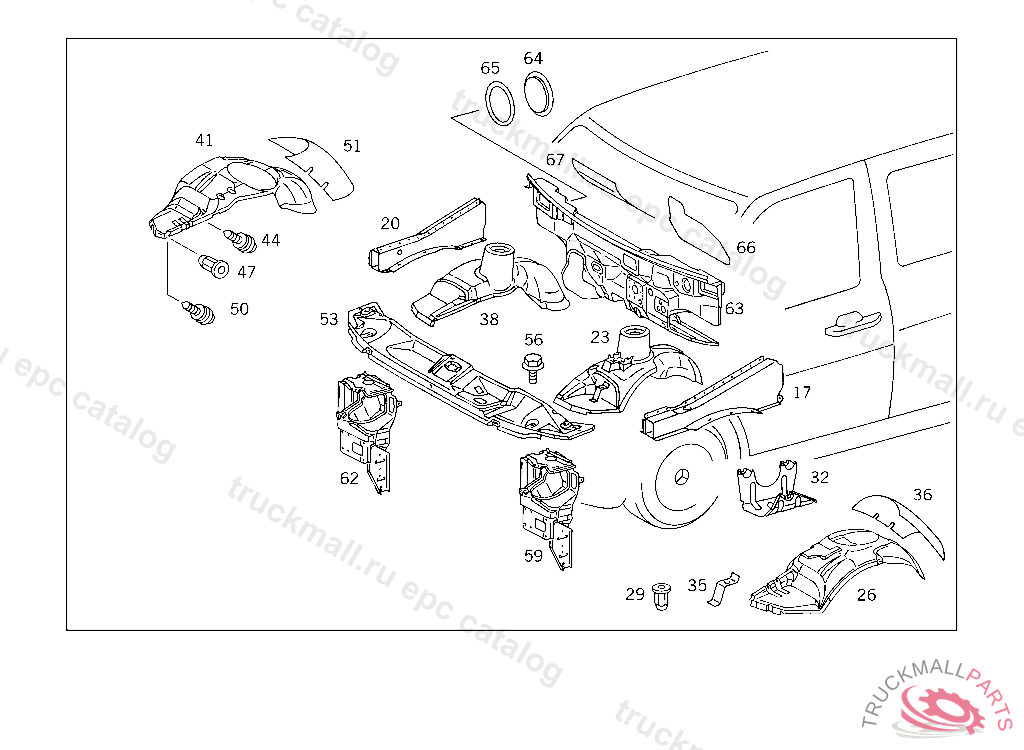

Поз.
Артикул
Описание
17
STRUT ON LEFT FRONT WHEELHOUSE
20
STRUT ON RIGHT FRONT WHEELHOUSE
23
WHEELHOUSE FRONT LEFT
23
WHEELHOUSE , Replaced By: A6386100674
23
WHEELHOUSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 149091, Replaced By: A6386101374
26
WEEL ARCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 149091, Replaced By: A6386111174
26
WEEL ARCH FOR SECTION REPAIR,FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
29
RIVETED NUT
32
BRACKET USED WITH ABS, 149092
32
BRACKET USED WITH ABS, 149091
32
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 088989, Replaced By: A6383101809
35
HOLDER PANE WASHER RESERVOIR
36
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
38
WHEELHOUSE FRONT RIGHT
41
WEEL ARCH FRONT RIGHT
44
WELD SCREW
47
RIVETED NUT
50
PIN
51
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
53
SUPPORT FRONT CROSS MEMBER
56
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
59
END PIECE COWL,LEFT
62
END PIECE COWL,RIGHT
63
63
FRONT PANEL FOR ENGINE WITHOUT TURBOCHARGER
63
FRONT PANEL , Replaced By: A6386201108
63
64
COVER AT FIRE WALL
65
SEAL AT FIRE WALL
66
INSULATION1,5 MM, TO BE ADAPTED DURING ASSEMBLY
67
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
