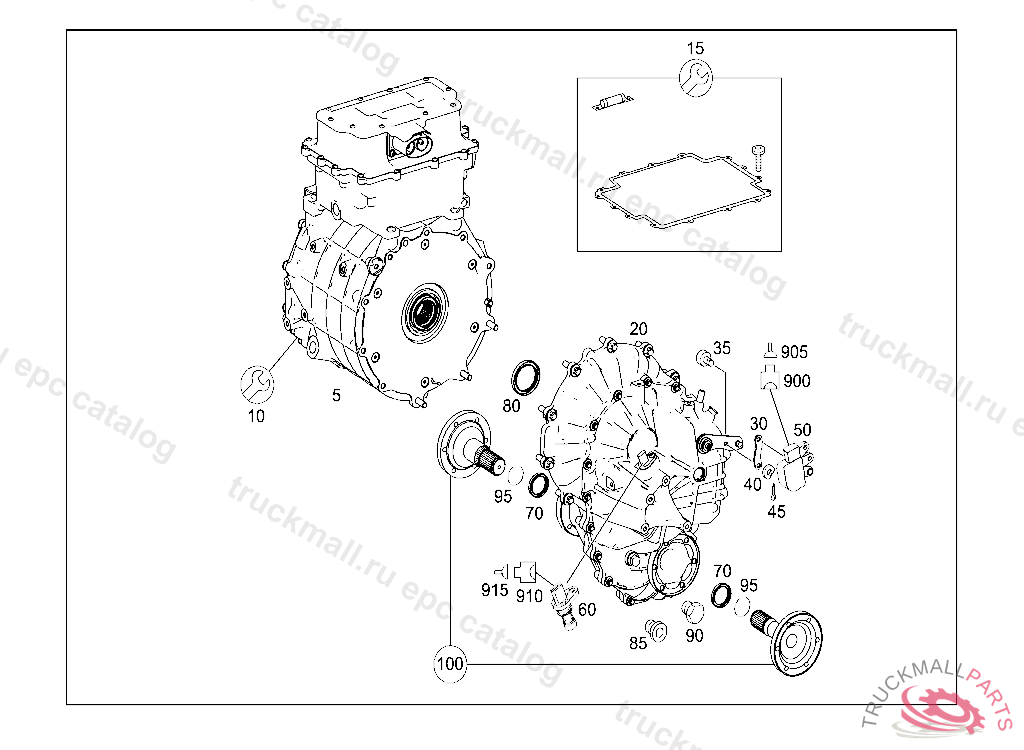

Поз.
Артикул
Описание
5
ELECTRIC TRACTION MOTOR ,375407520120131
5
ELECTRIC TRACTION MOTOR ,375407620120131
10
RS ELECT. TRACTION MOTOR
15
RS ELECT. TRACTION MOTOR
20
SWITCHING OUTPUT STAGE
30
LINK ROD
35
PIN BRAKE CABLE TO INTERMEDIATE LEVER
40
WASHER COMPRESSED AIR LINE TO BRACKET
45
COTTER PIN ROD TO INTERMEDIATE LEVER
50
POSITION SENSOR
60
RPM SENSOR
70
RADIAL SHAFT SEALING RING DRIVE SHAFT
80
RADIAL SHAFT SEALING RING MAIN SHAFT
85
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
90
SCREW PLUG DRAIN PLUG
95
SNAP RING DRIVE SHAFT
100
TS FLANGE, ROUND
900
PIN BUSHING HOUSING 6-POLE
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
GASKET. BLIND PLUG BLUE
905
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
910
COUPLING HOUSING FUEL LEVEL SENSOR 3-PIN MLK1.2,X36/3
915
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
915
CONTACT SPRING OXYGEN SENSOR 0.75-1.0 MM2 MLK1.2,G3/1
915
FEMALE CONTACT FUEL PUMP M3/3
