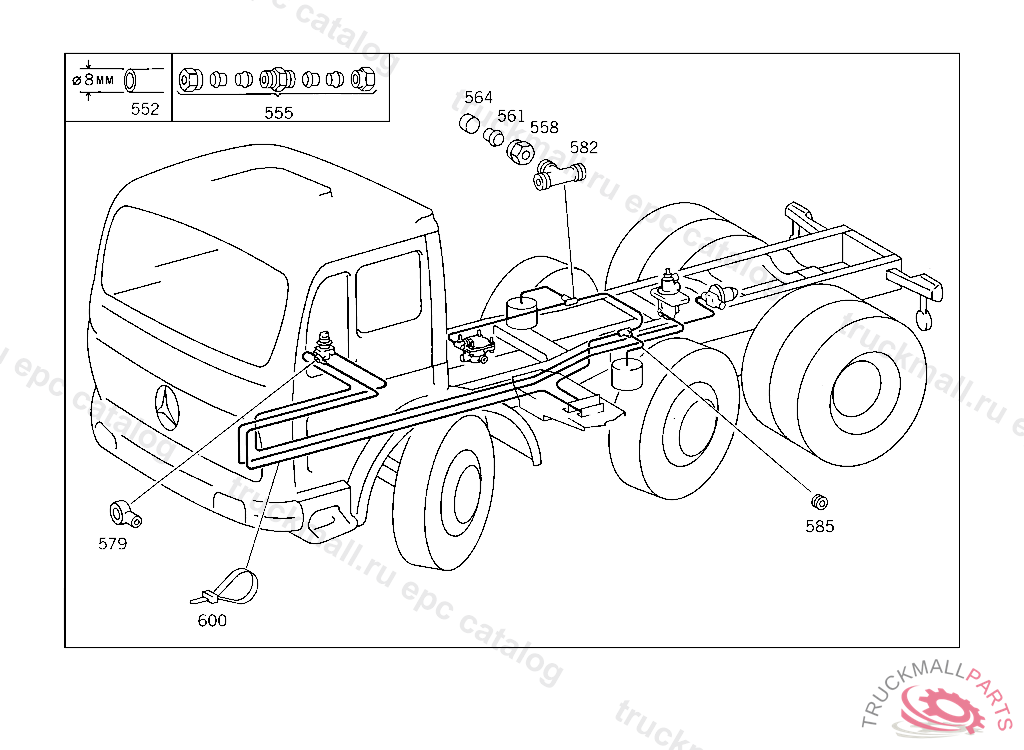

Поз.
Артикул
Описание
552
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
552
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
552
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
555
FITTING , Replaced By: A0029905971
555
FITTING (PARTS KIT),LINE RUPTURE
558
UNION NUT LINE CONNECTION
561
GLAND LINE CONNECTION
564
SLEEVE LINE CONNECTION
579
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
582
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
585
GROMMET AT SIDE MEMBER,5 314333
600
LOOM TIE LINE MOUNTING 280 MM
600
LOOM TIE LINE MOUNTING
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT STRAP TO BRACKET
999
SEAL RING LINE CONNECTION
999
SCREW GUSSET PLATE TO CROSS MEMBER
999
STEP BEARINGTO 655 328 01 41/02 41
999
BUSHING SPRING EYE,FRONT
999
WASHER SUPPORTING ARM TO CYLINDER CRANKCASE
999
SHIM BETWEEN THE SPRING LEAVES
999
SPRING CLAMP LOWER PART
999
SPRING CLAMP CENTRAL PART
999
SPRING CLAMP UPPER PART
999
SPRING CLAMP UPPER PART
999
ADHESIVE FOIL GUIDE SIGN
999
SHIM BETWEEN THE SPRING LEAVES 3 MM
999
SPRING CLAMP CENTRAL PART
999
SPRING CLAMP LOWER PART
