Поз.
Артикул
Описание

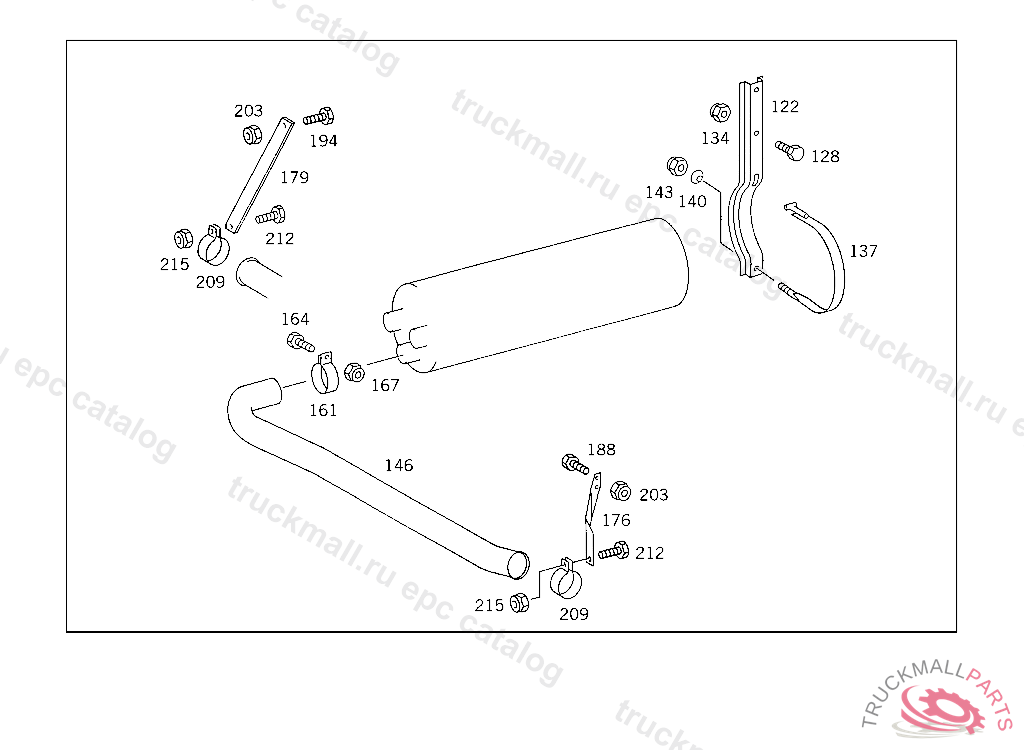

122
BRACKET , Replaced By: A6524911141
122
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
128
SCREW , Replaced By: N308676014020
128
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
134
NUT , Replaced By: N910113014001
134
NUT BRACKET TO SIDE MEMBER
137
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
140
SPHERICAL WASHER STRAP TO BRACKET
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
161
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
167
NUT , Replaced By: N910113010000
167
NUT STRAP TO BRACKET
