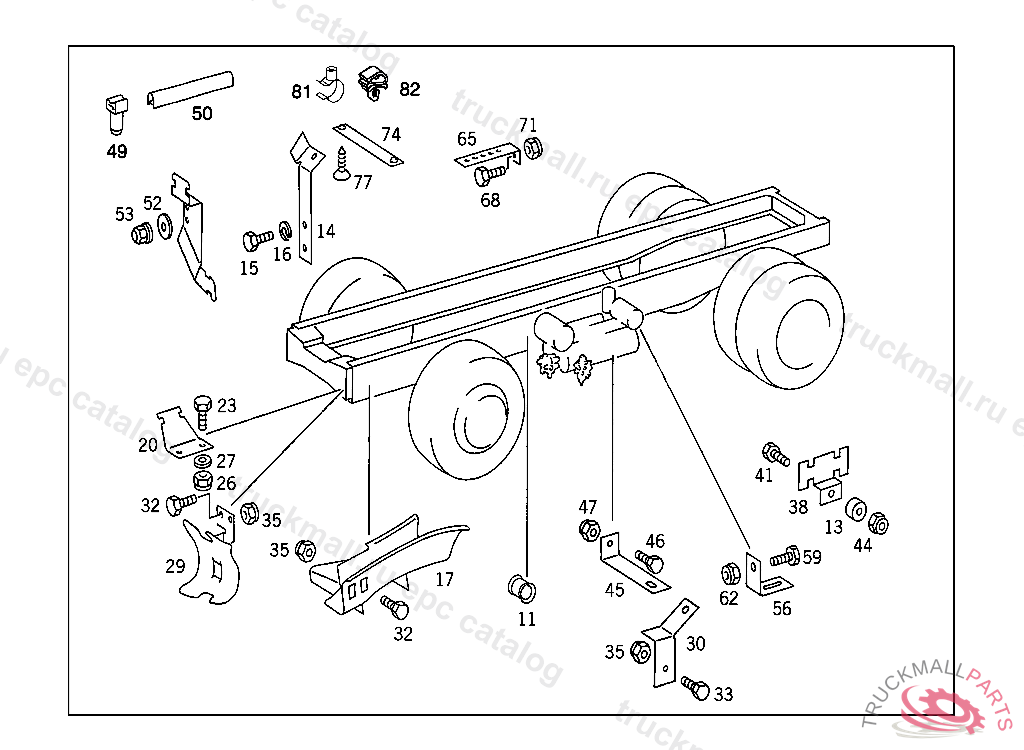

Поз.
Артикул
Описание
11
GROMMET LINE THRU FRAME
13
WASHER , Replaced By: A3609902340
13
WASHER BRACKET TO LEFT SIDE MEMBER
14
BRACKET BREATHER LINE TO FRONT AXLE
15
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
15
SCREW , Replaced By: N304017008016
16
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
BRACKET LEFT COMPRESSED AIR LINES
17
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
17
BRACKET RIGHT COMPRESSED AIR LINES
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
20
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
23
SCREW PIPE CLAMP
23
SCREW , Replaced By: N304017008021
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT , Replaced By: N913004008001
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
27
WASHER EXHAUST MUFFLER TO STRAP
27
WASHER , Replaced By: N000125008443
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
30
BRACKET AT SIDE MEMBER
33
SCREW , Replaced By: N304017008021
33
SCREW PIPE CLAMP
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT , Replaced By: N913004008001
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
BRACKET BREATHER LINE TO SIDE MEMBER
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
41
SCREW , Replaced By: N304017008027
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
49
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
49
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
49
BRACKET LINE TO FRONT PANEL
50
EDGE GUARD SECTION , Replaced By: A0019872272
50
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
52
WASHER , Replaced By: N009021005205
52
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
53
NUT BRACKET TO PIN
56
BRACKET FUEL LINE TO BELL HOUSING
59
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
74
BRACKET , Replaced By: A6554314640
74
BRACKET BRACKET TO CONTROL ARM
74
BRACKET , NOT USED, Replaced By: A6554314640
77
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
81
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
82
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
BRACKET COMPRESSED AIR LINES
