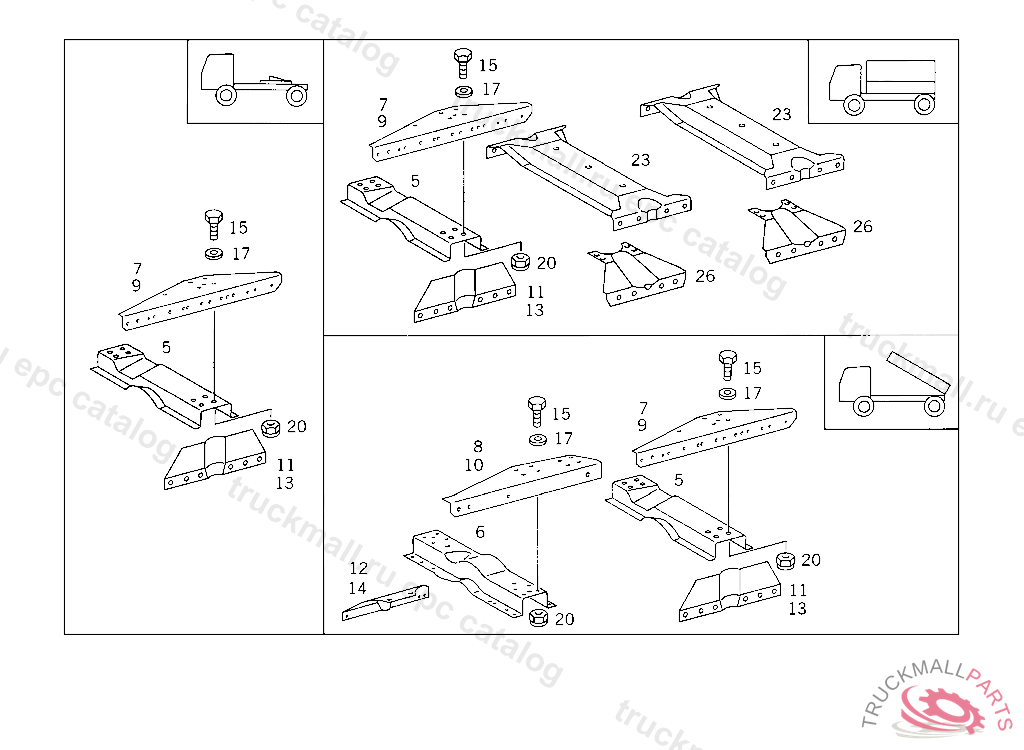

1722 AK,1724 AK,1824 AK 1827 AK - 652.336 - 31 FRAME
Поз.
Артикул
Описание
6
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3
8
GUSSET PLATE , Replaced By: A3813120652
8
ANGLE TOP LEFT
10
GUSSET PLATE , Replaced By: A3813120752
10
ANGLE TOP RIGHT
12
ANGLE BOTTOM LEFT
14
ANGLE BOTTOM RIGHT
15
SCREW STRUT TO CONSOLE
15
SCREW STRUT TO CONSOLE
17
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
20
NUT STRAP TO SUPPORT
20
NUT STRAP TO SUPPORT
