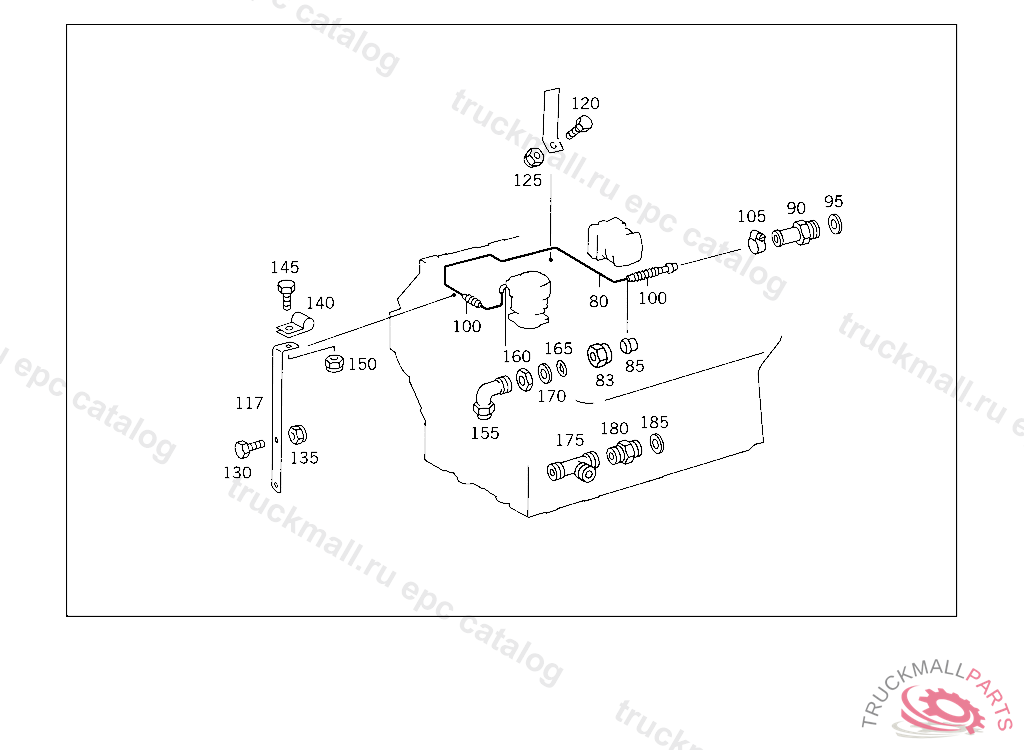

Поз.
Артикул
Описание
80
LINE SUCTION LINE
83
UNION NUT LINE CONNECTION, Replaced By: N000000006243
83
NUT LINE CONNECTION
85
SEAL CONE LINE CONNECTION
85
GLAND , Replaced By: A0019901267
90
FITTING AIR COMPRESSOR,CONNECTION: "10"
95
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
100
HOSE , Replaced By: A4969970082
100
HOSE , ORDER BY THE METER
105
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
105
CLAMP25-40X13 MM
117
BRACKET COMPRESSED AIR LINE MOUNTING
117
BRACKET , Replaced By: A4232050740
117
BRACKET , Replaced By: A4222051540
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
130
SCREW , Replaced By: N304017008021
130
SCREW PIPE CLAMP
135
NUT , Replaced By: N913004008001
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
145
SCREW , Replaced By: N304017006020
145
SCREW LICENSE PLATE TO BRACKET
150
NUT , Replaced By: N913004006001
150
NUT PUMP TO BRACKET
155
ELBOW FITTING LINE CONNECTION TO AIR COMPRESSOR "10"
160
NUT SUCTION LINE TO OIL PUMP
165
THRUST RING SUCTION LINE TO OIL PUMP
165
SEAL RING LINE CONNECTION
170
THRUST RING SUCTION LINE TO OIL PUMP
175
T-FITTING LINE CONNECTION
180
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
185
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 223600
999
BRACKET ,K 223600
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
