Поз.
Артикул
Описание

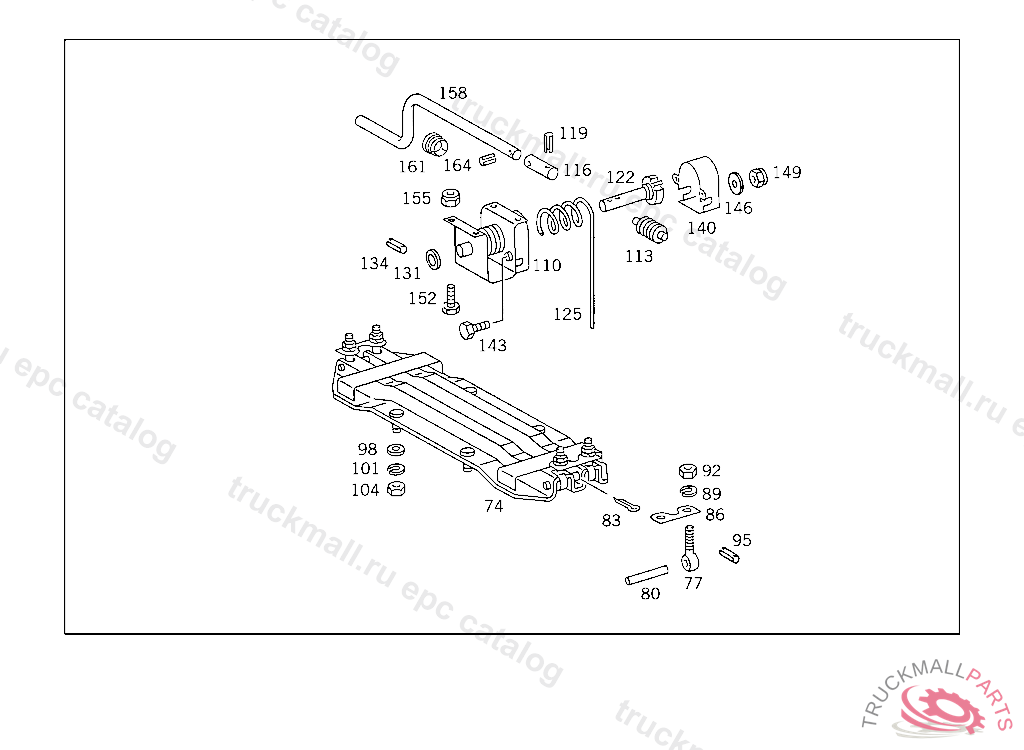

74
BRACKET SPARE WHEEL MOUNTING,K 058473
74
BRACKET SPARE WHEEL MOUNTING,K 058474
77
SCREW , Replaced By: A6519900023
77
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
80
PIN AT BRACKET
83
COTTER PINROCKINGER TYP 260 G140
86
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
89
LOCK WASHERROCKINGER TYP 59 G140,59 G150
92
NUT , Replaced By: N308673016001
92
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
95
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
98
WASHER SPARE WHEEL TO BRACKET
101
LOCK WASHER SPARE WHEEL TO BRACKET
104
NUT , Replaced By: N308673020002
104
NUT , Replaced By: N308674020000
104
NUT REAR SPRING TO REAR AXLE
110
SPARE WHEEL HOIST
113
WORM
116
BUSHING
119
CLAMPING SLEEVE CRANK TO BUSHING
122
STOP GEAR ,5 127460
125
WIRE CABLE
131
WASHER WORM AND SHAFT TO BRACKET
134
CLAMPING PIN BRACKET TO SUPPORT
134
CLAMPING SLEEVE , Replaced By: N308752008000
140
COVERING PROTECTION PLATE TO BRACKET
143
SCREW COVER PLATE TO BRACKET
146
WASHER , Replaced By: N009021006208
146
WASHER COMPRESSED AIR LINE TO BRACKET
149
NUT , Replaced By: N913004006001
149
NUT PUMP TO BRACKET
152
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
155
NUT , Replaced By: N910113010000
155
NUT STRAP TO BRACKET
158
CRANK SPARE WHEEL HOIST
161
BUSHING CRANK
164
CLAMPING SLEEVE CRANK TO BUSHING
