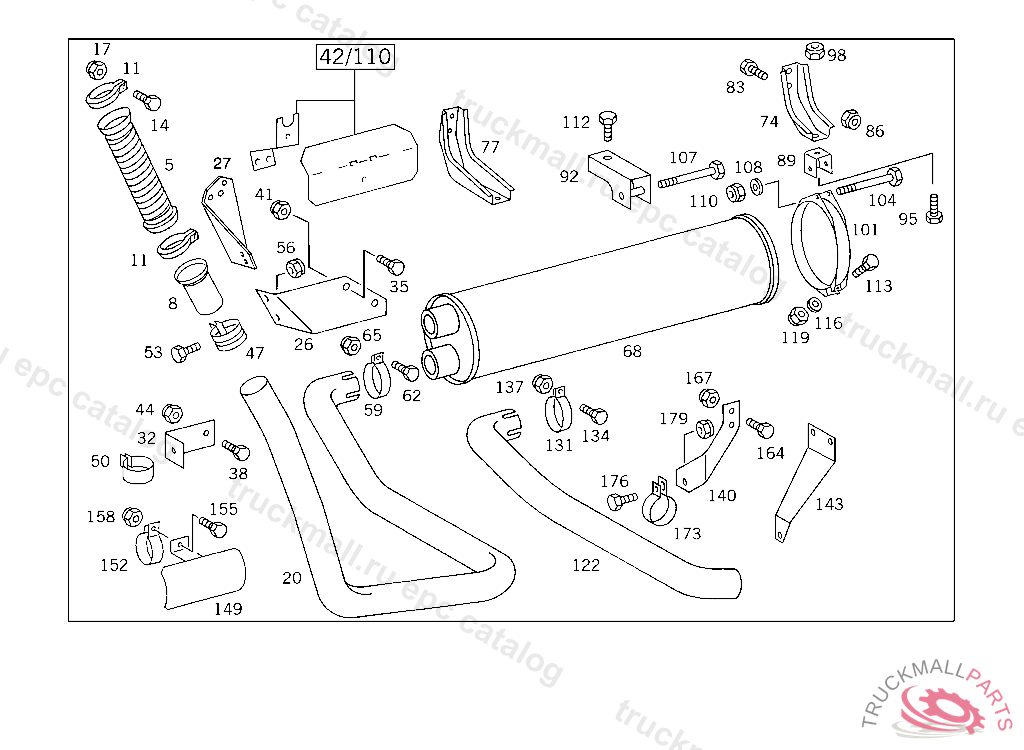

Поз.
Артикул
Описание
5
FLEXIBLE METAL TUBE FRONT LEFT
8
COLLAR (SLIDING COLLAR)
11
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
14
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
14
SCREW , Replaced By: N304017008028
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
EXHAUST PIPE FRONT
20
EXHAUST PIPE ,K 057137 EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 093235, Replaced By: A6554905620
20
EXHAUST PIPE FRONT
26
BRACKET FRONT EXHAUST PIPE TO SIDE MEMBER
27
BRACKET FRONT EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
32
BRACKET COVERING
32
BRACKET , Replaced By: A6205240140
38
SCREW , Replaced By: N304017008034
38
SCREW BRACKET TO CROSS CONNECTION STRUT
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
CLAMP EXHAUST PIPE TO BRACKET
50
CLAMP , Replaced By: N071555100501
50
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
53
SCREW EXHAUST PIPE TO BRACKET
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
59
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
62
SCREW BRACKET TO SIDE MEMBER
62
SCREW , Replaced By: N304017010002
65
NUT , Replaced By: N910113010000
65
NUT STRAP TO BRACKET
68
EXHAUST MUFFLER
74
CONSOLE EXHAUST MUFFLER,FRONT
77
CONSOLE REAR EXHAUST MUFFLER 132 MM
83
SCREW CONSOLE TO SIDE MEMBER
86
NUT SUPPORT TO SIDE MEMBER
89
BRACKET REAR EXHAUST PIPES
95
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
98
NUT , Replaced By: N910113010000
98
NUT STRAP TO BRACKET
101
STRAP EXHAUST MUFFLER TO BRACKET
101
STRAP , Replaced By: A6204900042, +001N000933008165
104
SCREW STRAP TO BRACKET
110
NUT , Replaced By: N910113010000
110
NUT STRAP TO BRACKET
113
SCREW EXHAUST MUFFLER TO STRAP
116
WASHER EXHAUST MUFFLER TO STRAP
116
WASHER , Replaced By: N000125008443
119
NUT , Replaced By: N913004008001
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
119
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
122
END PIECE (TAIL PIPE)
131
CLAMP EXHAUST PIPE TO BRACKET
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW , Replaced By: N304017010002
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
140
BRACKET TAIL PIPE TO SIDE MEMBER
149
PROTECTIVE PLATE FUEL TANK
152
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
155
SCREW BRACKET TO SIDE MEMBER
155
SCREW , Replaced By: N304017010002
158
NUT , Replaced By: N910113010000
158
NUT STRAP TO BRACKET
164
SCREW , Replaced By: N308676014020
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
164
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
167
NUT BRACKET TO SIDE MEMBER,K 035196
167
NUT , Replaced By: N910113010000
167
NUT , Replaced By: N308673014001
167
NUT STRAP TO BRACKET
173
CLAMP EXHAUST PIPE
173
CLAMP , Replaced By: N071555100501
173
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
176
SCREW BRACKET TO SIDE MEMBER
179
NUT STRAP TO BRACKET
999
BRACKET REAR EXHAUST PIPE SUSPENSION
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
