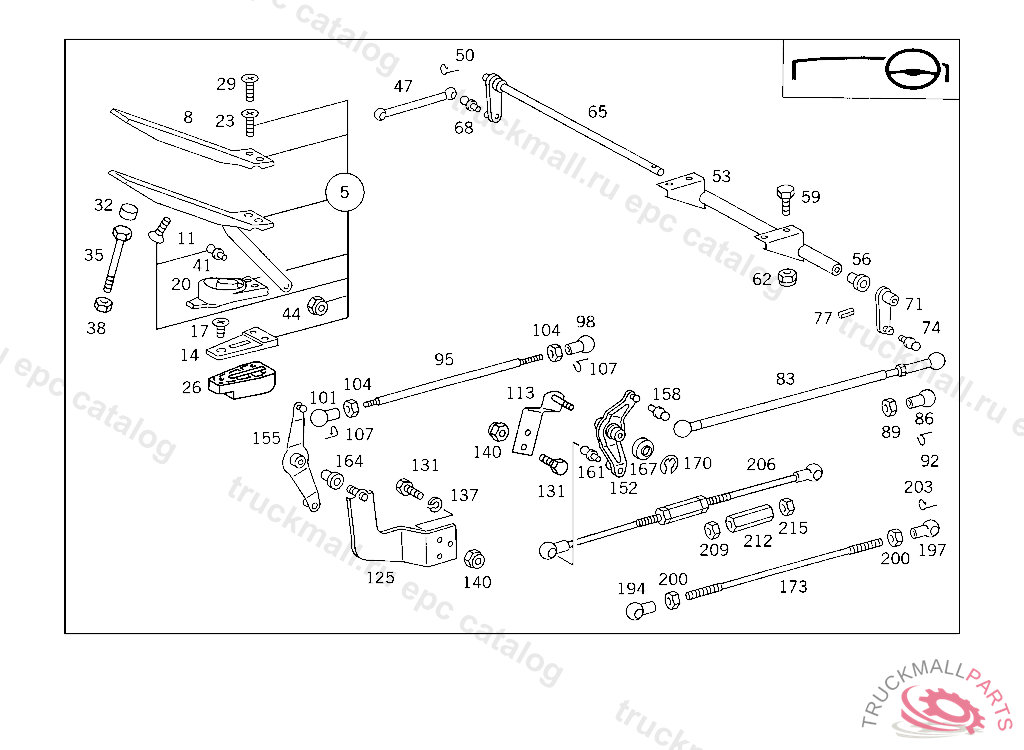

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
29
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
SCREW VALVE TO BRACKET
38
NUT
41
BALL PIVOT LOAD SENSOR
44
NUT PUMP TO BRACKET
44
NUT , Replaced By: N913004006001
47
BALL SOCKET ROD TO ACCELERATOR PEDAL
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING TUBE CONTROL SHAFT
56
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
SCREW , Replaced By: N304017008016
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
SHAFT (CONTROL SHAFT)
68
BALL PIVOT
71
LEVER (CONTROL LEVER)
74
BALL PIVOT
77
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
77
CLAMPING SLEEVE , Replaced By: N308752004001
86
BALL SOCKET PULL ROD TO LEVER
89
NUT BALL PIVOT TO LEVER
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
95
ROD LOAD SENSOR CONTROL
95
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
98
BALL SOCKET PULL ROD TO LEVER
101
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
104
NUT BALL PIVOT TO LEVER
107
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
125
BEARING BRACKET INTERMEDIATE BEARING,5 324164
125
BEARING BRACKET , Replaced By: A6583000036, +001A6583000228
131
SCREW , Replaced By: N304017008034
131
SCREW BRACKET TO CROSS CONNECTION STRUT
137
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
155
LEVER (INTERMEDIATE LEVER)
155
LEVER INTERMEDIATE BEARING
158
BALL STUD. BALL PIVOT TOP B10X4,5 MM
161
BALL PIVOT BOTTOM B13X5 MM
164
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
167
COVERING INTERMEDIATE BEARING
170
LOCK PLATE INTERMEDIATE BEARING
173
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
173
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
194
BALL SOCKET ROD TO BALL PIVOT
197
BALL SOCKET ROD TO BALL PIVOT
200
NUT
203
SECURING CLIP. CIRCLIP
