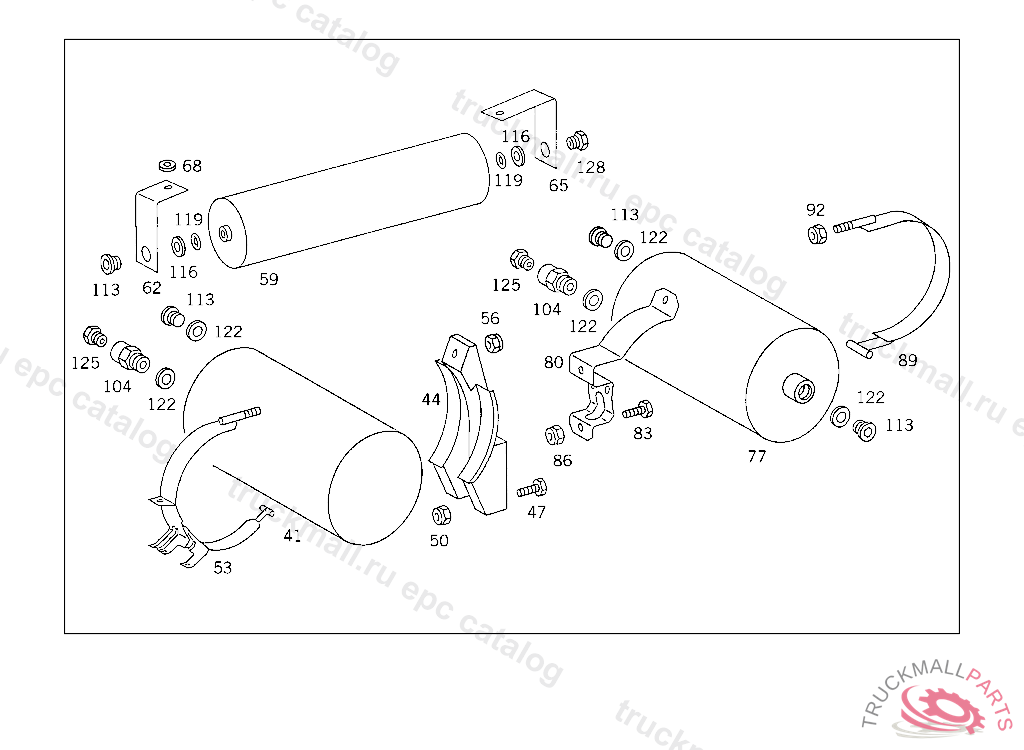

Поз.
Артикул
Описание
41
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
41
RESERVOIR20L,276 MM,8.5 BAR
44
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
47
SCREW , Replaced By: A0089907401
47
SCREW BRACKET TO SIDE MEMBER,K 168169
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
56
NUT , Replaced By: N910113010000
56
NUT STRAP TO BRACKET
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
59
RESERVOIR5.6L,114,3 MM,10 BAR
62
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
68
WASHER , Replaced By: N000125010532
68
WASHER RADIATOR TO RUBBER MOUNTING
77
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
77
RESERVOIR10L,206 MM,8.5 BAR
80
BRACKET AIR RESERVOIR TO CROSS MEMBER
83
SCREW , Replaced By: N304017008021
83
SCREW PIPE CLAMP
86
NUT , Replaced By: N913004008001
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
89
STRAP AIR RESERVOIR TO BRACKET
92
NUT , Replaced By: N910113010000
92
NUT STRAP TO BRACKET
104
FITTING LINE CONNECTION
104
FITTING LINE CONNECTION
113
SCREW PLUG , Replaced By: N000908022011
113
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
116
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
116
THRUST RING CHECK VALVE TO AIR RESERVOIR
119
O-RING CHECK VALVE TO AIR RESERVOIR
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
125
SCREW. UNION SCREW LINE CONNECTION
128
SCREW. UNION SCREW , Replaced By: A0009973734
128
SCREW. UNION SCREW LINE CONNECTION
