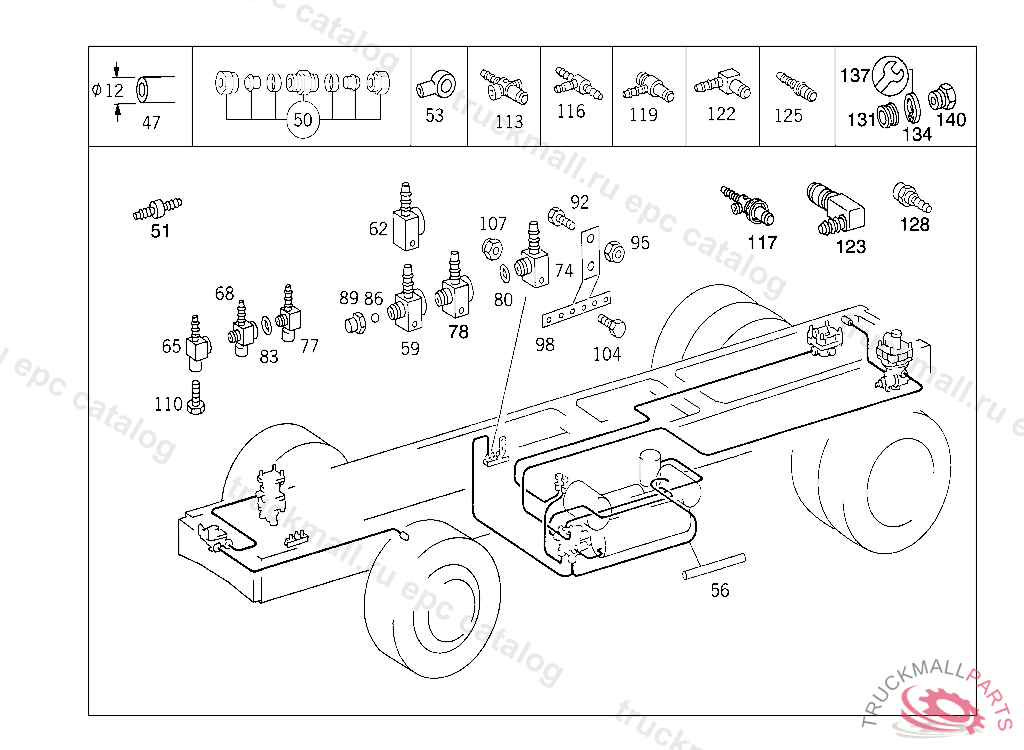

Поз.
Артикул
Описание
47
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
47
HOSE , Replaced By: A0009872827
50
FITTING (PARTS KIT),LINE RUPTURE
51
CONNECTOR REPAIR SIZE
53
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
56
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
59
CONNECTOR DISTRIBUTOR TO FRAME
59
CONNECTOR , Replaced By: A0019903978
62
CONNECTOR HOSE WIDTH, 9 MM,TO M22
65
CONNECTOR DISTRIBUTOR TO CAB
68
CONNECTOR DISTRIBUTOR TO CAB
74
CONNECTOR DISTRIBUTOR TO FRAME
77
CONNECTOR DISTRIBUTOR TO CAB
78
CONNECTOR DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION, WITH THROTTLE
80
SEAL RING CONNECTOR 11.8X2 MM
80
SEAL RING , Replaced By: A0229973948
83
SEAL RING
86
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
89
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
92
SCREW END PIECE TO EXHAUST PIPE M 12X30
92
SCREW , Replaced By: N304017012020
95
NUT END PIECE TO EXHAUST PIPE
98
BRACKET CONNECTOR TO FRAME
104
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
107
NUT PUMP TO BRACKET
107
NUT , Replaced By: N913004006001
110
SCREW EXHAUST BRAKE SEPARATION POINT
113
DISTRIBUTOR LINE CONNECTION
116
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
117
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
119
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
122
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
123
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
125
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
128
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
131
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
134
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
137
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
140
SCREW. UNION SCREW LINE CONNECTION
