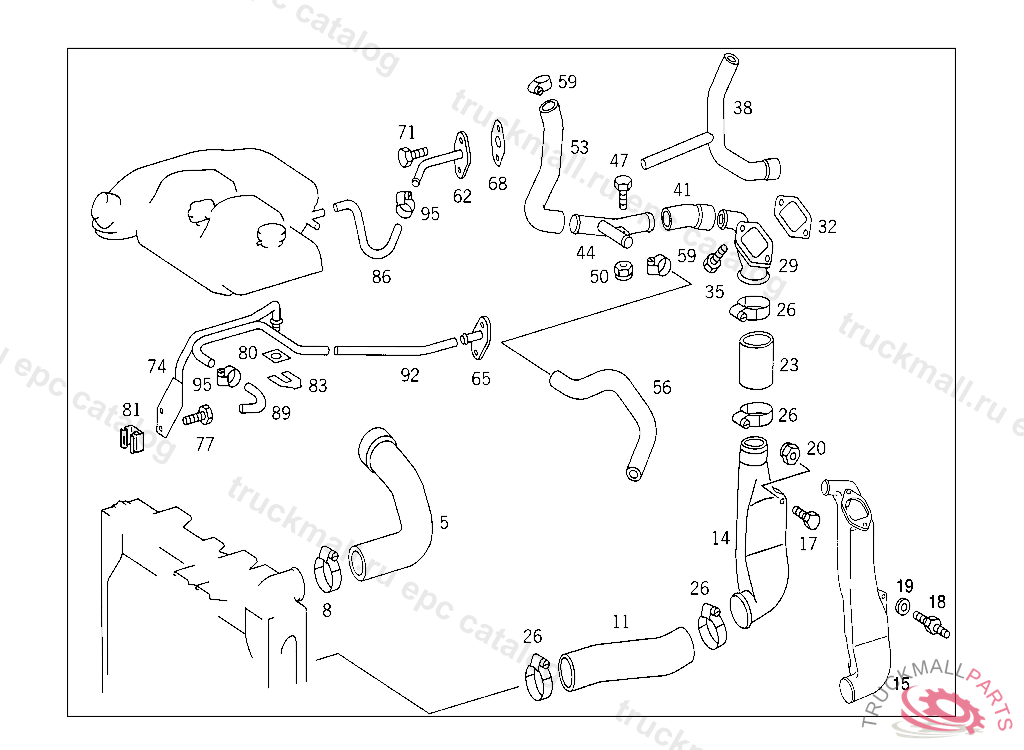

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP HOSE 70-90X13 MM
8
CLAMP , Replaced By: A0059972990
8
CLAMP , Replaced By: N000000000674
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
PIPE ELBOW AT WATER PUMP,5 1935955 510517
14
PIPE ELBOW AT WATER PUMP,5 510518
14
PIPE ELBOW , Replaced By: A6555010756
17
SCREW BRACKET TO FRAME SIDE MEMBER
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
26
CLAMP HOSE 70-90X13 MM
26
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
26
CLAMP , Replaced By: A0059972990
26
CLAMP , Replaced By: N000000000674
29
CONNECTOR AT WATER PUMP
29
CONNECTOR FOR SCREW FITTING
32
GASKET CONNECTOR
32
GASKET CONNECTOR, Replaced By: A0002011280
32
GASKET CONNECTOR, Replaced By: A0002011180
32
GASKET CONNECTOR, Replaced By: A0002011080
32
GASKET , Replaced By: A4422010480
35
SCREW STRAP TO BRACKET
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
HOSE , Replaced By: A3875011082
44
INTERMEDIATE PIECE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
47
SCREW BRACKET ON LOAD SENSOR
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
53
HOSE , Replaced By: A6555013382
53
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
56
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
59
CLAMP
59
CLAMP , Replaced By: N000000000667
59
CLAMP , Replaced By: N000000000670
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
FLANGE ENGINE BREATHING
68
GASKET. SEAL DE-AERATION PIPE TO ENGINE
71
SCREW END PIECE TO EXHAUST PIPE M 10X25
74
BREATHER PIPE ENGINE BREATHING
77
SCREW PUMP TO BRACKET
77
SCREW DE-AERATION LINE TO RADIATOR
77
SCREW , Replaced By: N304017006016
80
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
81
NUT RETAINER LICENSE PLATE TO BRACKET
81
NUT RETAINER , Replaced By: A0019906791
81
NUT , Replaced By: A0009902291
83
BRACKET. LOCK , Replaced By: A6525040038
83
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
89
HOSE DE-AERATION PIPE TO EXPANSION TANK
92
HOSE FROM FLANGE TO DE-AERATION PIPE
95
CLAMP HOSE TO FITTING AND TO OIL TANK
95
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
SCREW , Replaced By: A6739900032
