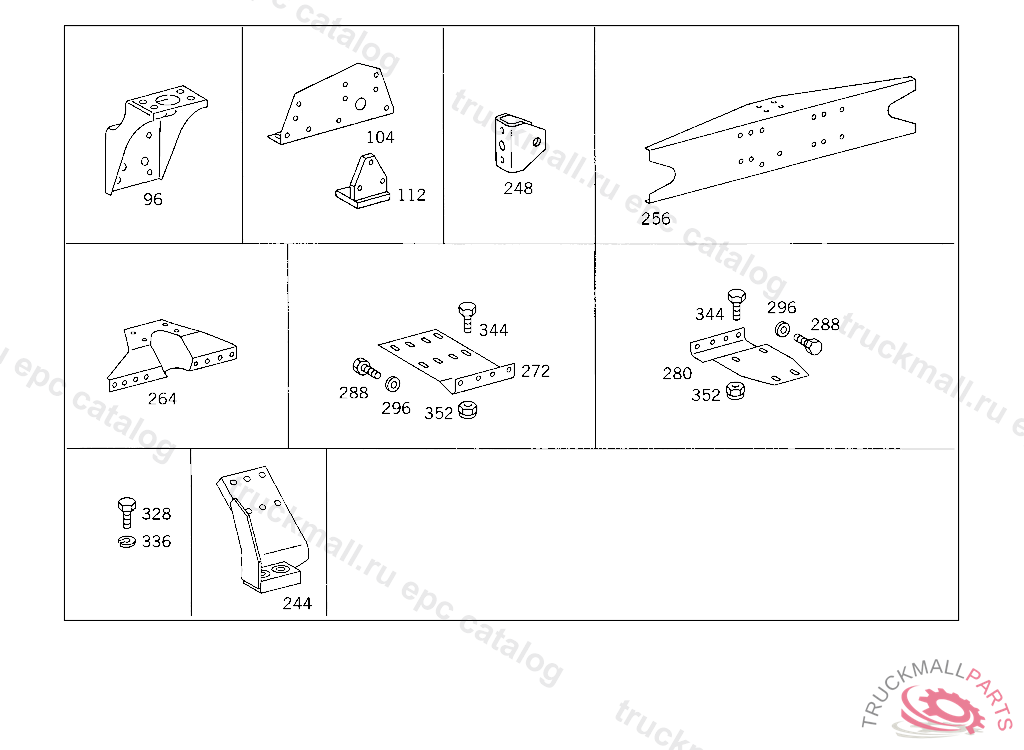

Поз.
Артикул
Описание
96
CONSOLE CAB SUSPENSION
96
CONSOLE , Replaced By: A3873170001
96
CONSOLE CAB SUSPENSION
104
CONSOLE RIGHT
104
CONSOLE LEFT
112
CONSOLE LEFT AND RIGHT
244
ENGINE SUPPORT ENGINE RIGHT REAR MOUNTING
244
ENGINE SUPPORT ENGINE LEFT REAR MOUNTING
248
BRACKET IN FRAME BEND
256
ANGLE RIGHT, TO BE ADAPTED DURING ASSEMBLY
256
ANGLE LEFT, TO BE ADAPTED DURING ASSEMBLY
256
ANGLE RIGHT, TO BE ADAPTED DURING ASSEMBLY
256
ANGLE , Replaced By: A6993121652
256
ANGLE LEFT, TO BE ADAPTED DURING ASSEMBLY
256
ANGLE , Replaced By: A6993121552
264
ANGLE BOTTOM RIGHT,5 297102
264
ANGLE BOTTOM LEFT,5 297102
272
ANGLE HEAT EXCHANGER TO BRACKET
280
ANGLE HEAT EXCHANGER TO BRACKET
288
SCREW PIPE CLAMP
288
SCREW , Replaced By: N304017008021
296
WASHER EXHAUST MUFFLER TO STRAP
296
WASHER , Replaced By: N000125008443
328
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
328
SCREW , Replaced By: N000961016065
328
SCREW BRACKET TO TRANSMISSION
336
LOCK WASHERROCKINGER TYP 59 G140,59 G150
336
LOCK WASHER FITTING TO BRACKET
344
SCREW CONSOLE TO SIDE MEMBER
352
NUT SUPPORT TO SIDE MEMBER
999
CROSS MEMBER LEFT NO.3
999
CROSS MEMBER RIGHT NO.3
999
STRUT RIGHT
999
STRUT , Replaced By: A6483120265
999
STRUT , Replaced By: A6483120261
999
CROSS MEMBER TRANSMISSION
999
SCREW , Replaced By: N308676012013
999
SCREW BRACKET TO FRAME M 12X35
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT , Replaced By: N910113012003
