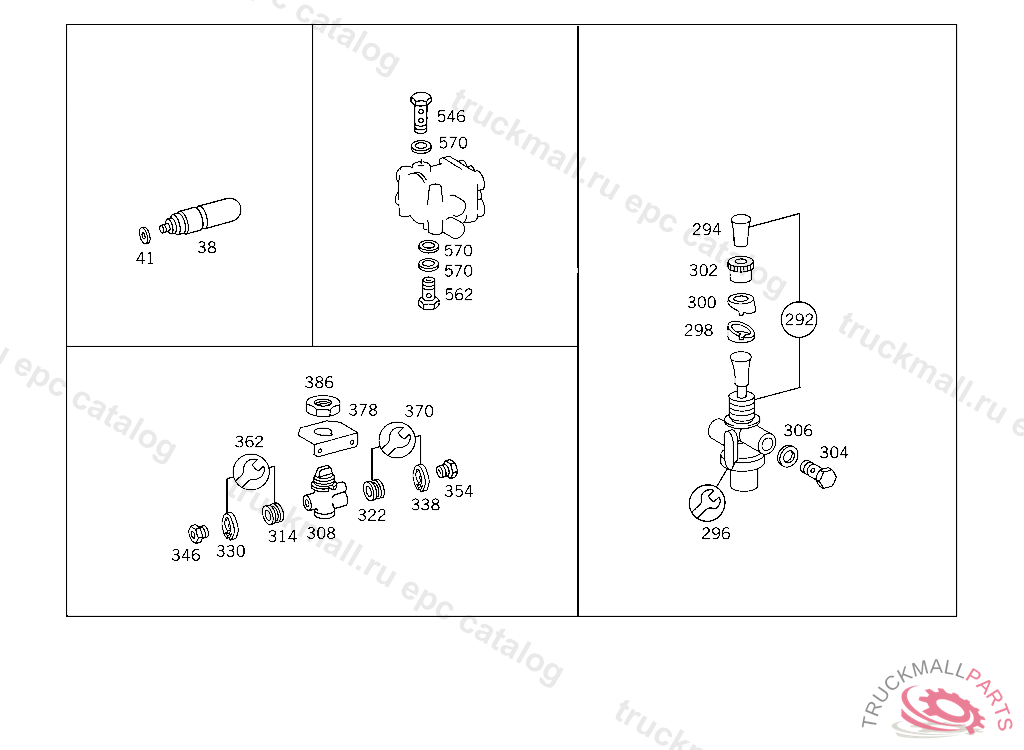

Поз.
Артикул
Описание
38
VALVE PRESSURE LIMIT,K 025180
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
292
VALVE TWO-WAY,4 685151
294
KNOB ,5 558612
294
KNOB
296
REPAIR KITTO 001 429 55 44
298
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
300
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
302
NUT STARTER PILOT PUMP TO WINDOW SILL
304
HOLLOW SCREW FUEL LINE TO FEED PUMP
304
HOLLOW SCREW , Replaced By: N915036010108
306
SEAL RINGTO 000 553 03 05,000 553 18 05,
308
VALVE 3/2-WAY
314
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
322
LOCK RING LINE CONNECTION
322
SEAL RING , Replaced By: A0009940747
330
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
338
LOCK LINE CONNECTION
338
LOCK , Replaced By: A0009945448
346
SCREW. UNION SCREW LINE CONNECTION
354
SCREW. UNION SCREW , Replaced By: A0009973734
354
SCREW. UNION SCREW LINE CONNECTION
362
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
370
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
370
REPAIR KIT , Replaced By: A0309971748
378
BRACKET BRACKET TO VALVE BRACKET, 969902 N 000000 P 000000
386
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
546
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
562
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
570
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING ,4 261891
