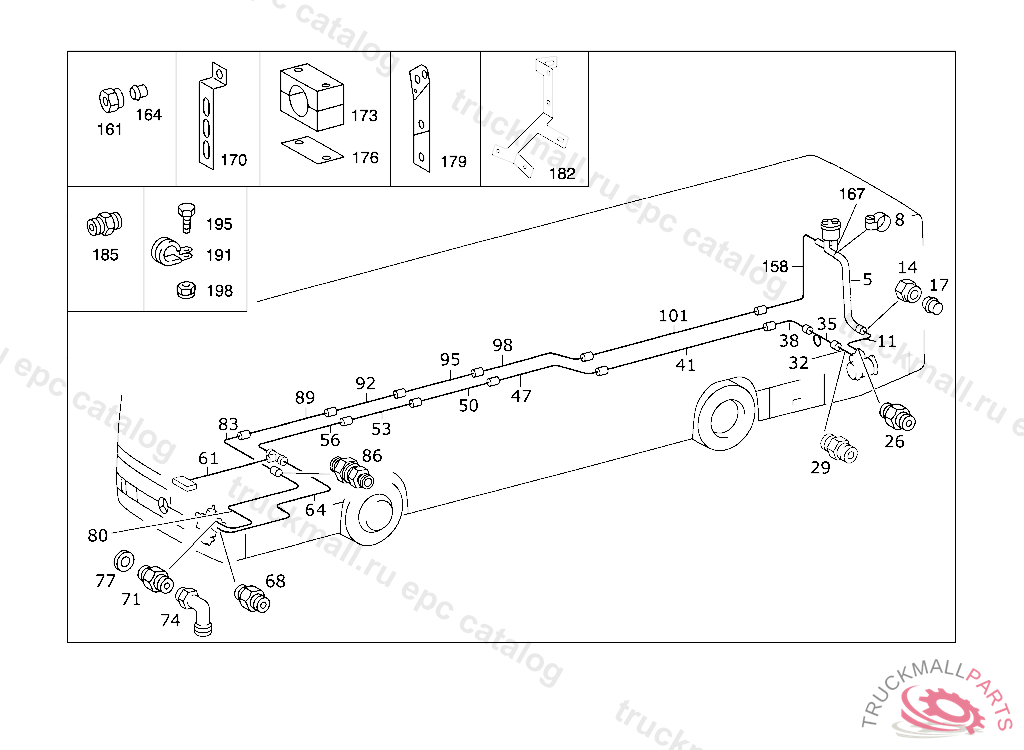

Поз.
Артикул
Описание
5
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
8
CLAMP20 - 32 MM
8
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
8
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
8
CLAMP25-40X13 MM
11
LOW-PRESSURE OIL LINE SUCTION LINE TO POWER STEERING PUMP 475 MM
14
UNION NUT LINE CONNECTION, Replaced By: N000000006243
14
UNION NUTAL22
17
CUTTING RINGBL22, Replaced By: A0019970317
17
GLAND , Replaced By: A0019901267
17
GLANDBL22
26
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
29
SCREW-IN FITTING , Replaced By: N003901015005
32
LOW-PRESSURE OIL LINE HIGH PRESSURE 490 MM
32
35
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
38
HIGH-PRESSURE OIL LINE1045 MM
41
LINE FROM CLUTCH TO CONNECTOR X
47
50
53
56
61
64
64
68
FITTING DELIVERY LINE TO STEERING GEAR,087560
71
SCREW-IN FITTING , Replaced By: N003901015005
74
FITTING OIL LINE CONNECTION
77
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
80
80
83
86
VALVE (CHECK VALVE),V 207570
89
92
95
98
101
158
161
UNION NUT LINE CONNECTION
161
UNION NUT LINE MOUNTING
161
NUT COMPRESSED AIR LINES
161
NUT LINE CONNECTIONS AL 15
164
GLAND , Replaced By: A0019901167
164
GLAND LINE CONNECTION
167
HOSE AT OIL TANK
170
BRACKET LOW PRESSURE LINES
173
RUBBER MOUNTING LINE MOUNTING 30 MM
173
RUBBER MOUNTING LINE MOUNTING 22 MM
176
PLATE MOUNTING FOR PRESSURE AND RETURN LINE TO A 000 553 17 86
176
TRAY
176
BACKPLATE MOUNTING FOR PRESSURE AND RETURN LINE TO A 000 553 17 86
179
BRACKET ON HIGH PRESSURE EXPANSION HOSE
182
BRACKET ON HIGH PRESSURE EXPANSION HOSE
182
BRACKET , Replaced By: A6284601840
185
CONNECTION FITTING , Replaced By: N003902018002
185
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
191
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
191
CLAMP LINE MOUNTING 15-18 MM,V 207570
191
CLAMP LINE MOUNTING
191
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
191
CLAMP DELIVERY AND SUCTION LINES TO FRAME
191
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
191
CLAMP BRAKE HOSE BRACKET
191
CLAMP PIPE ON FAN SHROUD
191
CLAMP HOSE TO FLANGE AND TO VALVE
195
SCREW BRACKET AND CLAMP M6X20
195
SCREW FROM THERMOSTAT TO RADIATOR
198
NUT BRACKET TO FIRE WALL
198
NUT
