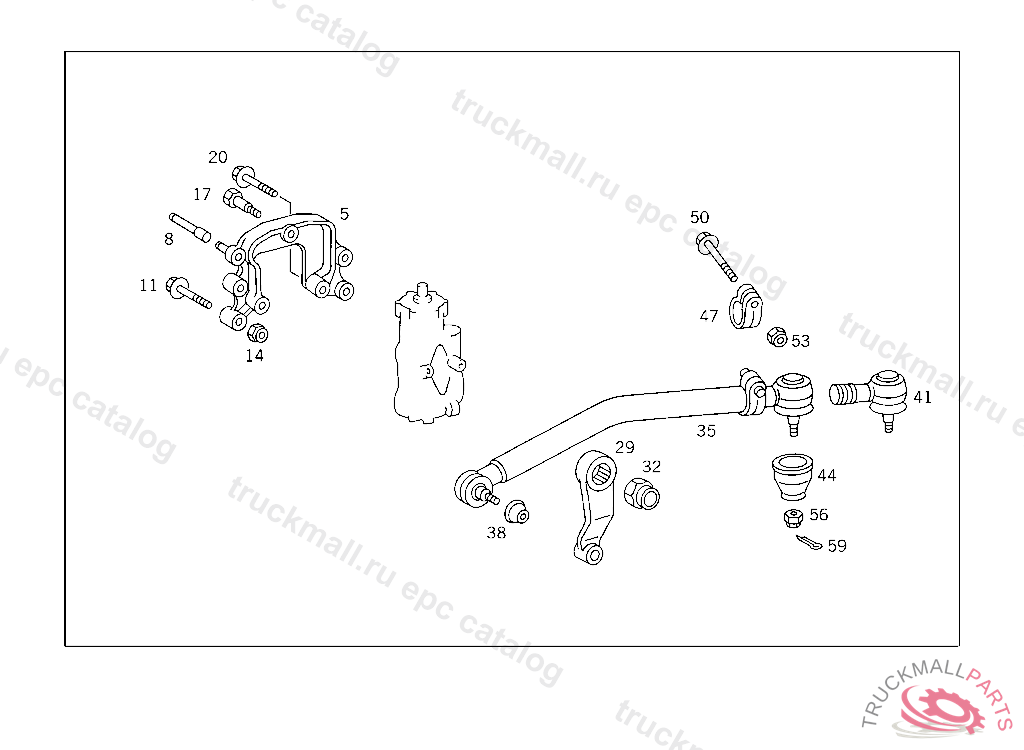

Поз.
Артикул
Описание
5
STEERING BRACKET
5
STEERING SUPPORT (STEERING BRACKET),K 244309
8
PIN
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW , Replaced By: N000960016206
14
NUT COMBINATION CYLINDER TO BEARING BRACKET
14
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
17
SCREW ,5 502947
20
SCREW , Replaced By: N308676014012
20
SCREW SUPPORT TO SIDE MEMBER M 14X45
29
PITMAN ARM ,K 244309
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKLEMFOERDER
35
DRAG LINKLEMFOERDER
35
DRAG LINKEHRENREICH
35
DRAG LINKEHRENREICH
38
BOOT FIXED PART OF JOINT
41
JOINT TO BE SCREWED INTO DRAG LINK LEMFOERDER
41
JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH, Replaced By: A0024601048
41
BALL JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH
44
BOOT
47
CLAMP CLAMP, ONE-HOLE
50
SCREW JOINT TO DRAG LINK M 10X1X60
53
NUT BRACKET TO CROSS MEMBER
56
NUT , Replaced By: N000979018005
56
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
59
COTTER PIN
