Поз.
Артикул
Описание

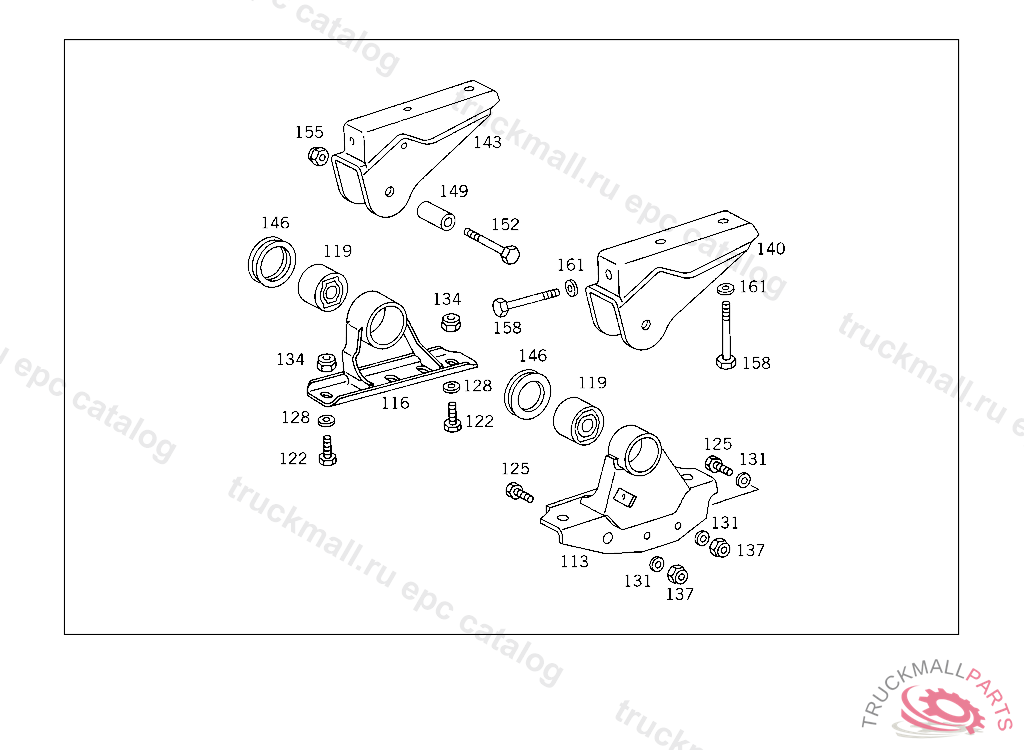

113
BRACKET LEFT SIDE MEMBER,5 725499-5 7999995 801938
116
CONSOLE RIGHT SIDE MEMBER,5 725499-5 7999995 801938
116
BRACKET , Replaced By: A6743101363
119
RUBBER BUFFER SIDE MEMBER,FRONT,5 725499-5 7999995 801938
122
SCREW BRACKET TO SIDE MEMBER
122
SCREW BRACKET TO CAB CONSOLE,K 035197
122
SCREW , Replaced By: N000961014064
125
SCREW , Replaced By: N308676012015
125
SCREW LEFT AND RIGHT CONSOLES TO CAB
125
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
128
WASHER SUPPORT TO SIDE MEMBER
128
WASHER , Replaced By: N007349015002
131
WASHER , Replaced By: N007349013003
131
WASHER , Replaced By: A3879900040
131
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
134
NUT BRACKET TO SIDE MEMBER
134
NUT , Replaced By: N910113014001
137
NUT SUPPORT TO SIDE MEMBER
140
BRACKET CAB,LEFT,5 725499-5 7999995 801938
143
BRACKET CAB, RIGHT,5 725499-5 7999995 801938
146
RUBBER BUFFER CAB,5 725499-5 7999995 801938
149
BUSHING CAB SUSPENSION,FRONT
152
SCREW CAB SUSPENSION,FRONT,5 725499-5 7999995 801938
155
NUT COMBINATION CYLINDER TO BEARING BRACKET
155
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
158
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
161
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
161
WASHER SUPPORT TO SIDE MEMBER
161
WASHER , Replaced By: N007349015002
