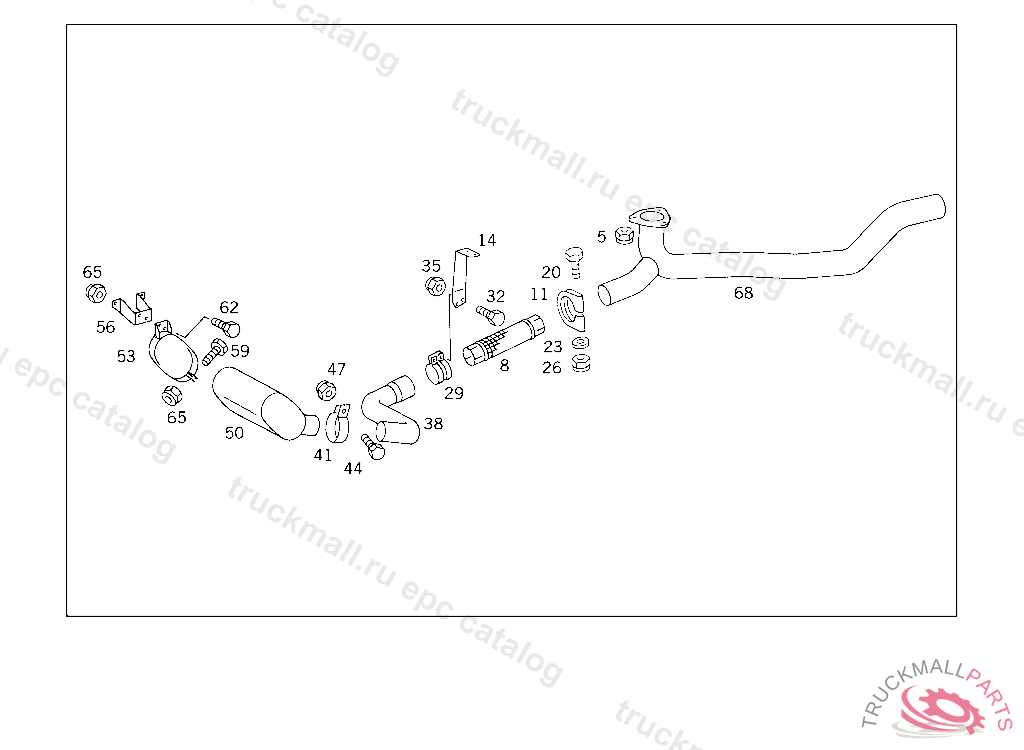

Поз.
Артикул
Описание
5
NUT SUPPORT TO SIDE MEMBER
8
FLEXIBLE METAL TUBE
11
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
14
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 812573 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 936552, Replaced By: A6754900140
14
BRACKET EXHAUST LINE FLEXIBLE METAL TUBE
14
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 812573 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 936552, Replaced By: A6794900240
20
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
20
SCREW , Replaced By: N304017008067
23
WASHER , Replaced By: N000125008443
23
WASHER EXHAUST MUFFLER TO STRAP
26
NUT , Replaced By: N913004008001
26
NUT , Replaced By: N913004008001
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
32
SCREW BRACKET TO SIDE MEMBER
32
SCREW , Replaced By: N304017010002
35
NUT , Replaced By: N910113010000
35
NUT STRAP TO BRACKET
38
EXHAUST PIPE RESONATOR
41
CLAMP RESONATOR TO FRONT EXHAUST PIPE
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
47
NUT , Replaced By: N913004008001
47
NUT , Replaced By: N913004008001
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
RESONATOR
53
CLAMP RESONATOR
56
BRACKET RESONATOR
59
SCREW BRACKET TO SIDE MEMBER
59
SCREW BRACKET TO SIDE MEMBER
59
SCREW , Replaced By: N304017010002
62
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
65
NUT , Replaced By: N910113010000
65
NUT STRAP TO BRACKET
65
NUT STRAP TO BRACKET
65
NUT STRAP TO BRACKET
68
EXHAUST PIPE RESONATOR,K 049384
68
EXHAUST PIPE RESONATOR,K 049383
68
EXHAUST PIPE RESONATOR,K 049384
68
EXHAUST PIPE RESONATOR,K 049384
68
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6764906419
68
EXHAUST PIPE RESONATOR,K 049383
68
EXHAUST PIPE , Replaced By: A6764904719
68
EXHAUST PIPE RESONATOR
68
EXHAUST PIPE RESONATOR,K 049384
68
EXHAUST PIPE RESONATOR,K 049383
68
EXHAUST PIPE ,K 049383, Replaced By: A6764905019
999
BRACKET RESONATOR
999
BRACKET RESONATOR
999
BRACKET RESONATOR
999
BRACKET RESONATOR, NOT USED
999
EXHAUST PIPE RESONATOR
999
BRACKET RESONATOR
999
BRACKET RESONATOR
999
BRACKET RESONATOR
999
EXHAUST MUFFLER. RESONATOR
999
BRACKET CONNECTING PIPE ON BRACKET
