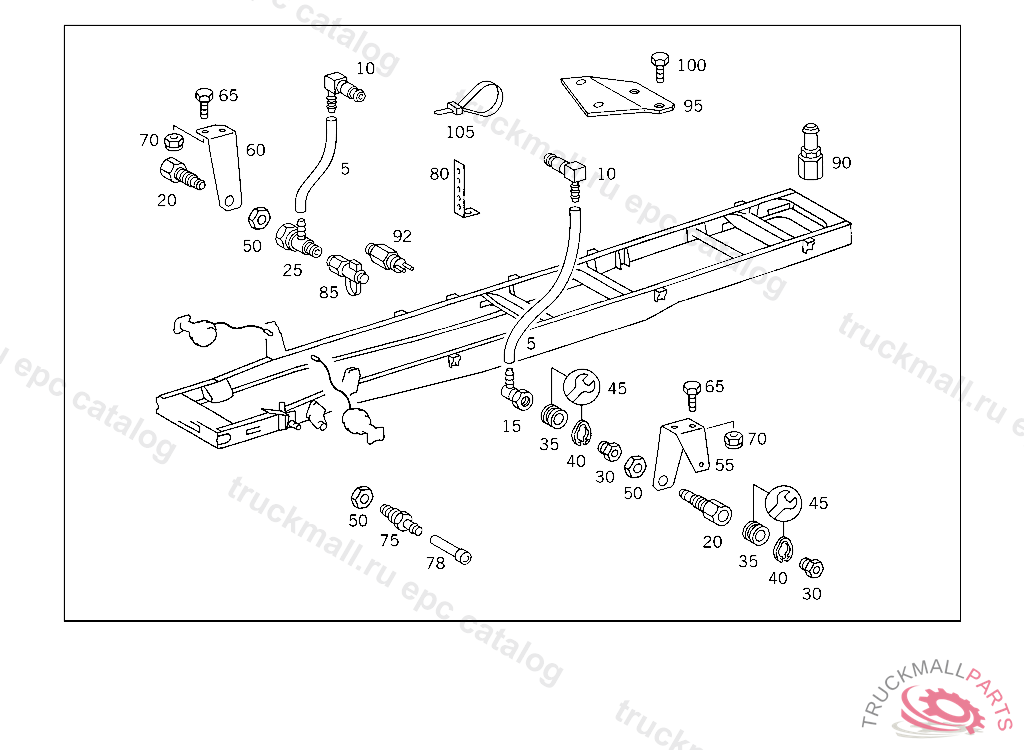

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
10
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
15
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
20
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
25
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
25
T-FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049907570
30
SCREW. UNION SCREW LINE CONNECTION
35
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
40
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
45
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
50
NUT BRACKET TO SIDE MEMBER
55
BRACKET COMPRESSED AIR LINE TO FRAME
60
BRACKET COMPRESSED AIR LINE TO FRAME
65
SCREW END PIECE TO EXHAUST PIPE M 10X25
70
NUT , Replaced By: N910113010000
70
NUT STRAP TO BRACKET
75
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
78
FITTING DIAPHRAGM CYLINDER,CONNECTION:
80
BRACKET , Replaced By: A3604292940
80
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
85
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
85
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
85
TEST CONNECTION
85
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
85
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
85
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
90
TEST CONNECTION
92
SWITCH SUPPLY PRESSURE
95
BRACKET DISTRIBUTOR TO REAR AXLE
100
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
100
SCREW , Replaced By: N304017008039
105
LOOM TIE LINE MOUNTING
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
T-FITTING HOSE WIDTH, 2X9 MM, TO M 22
