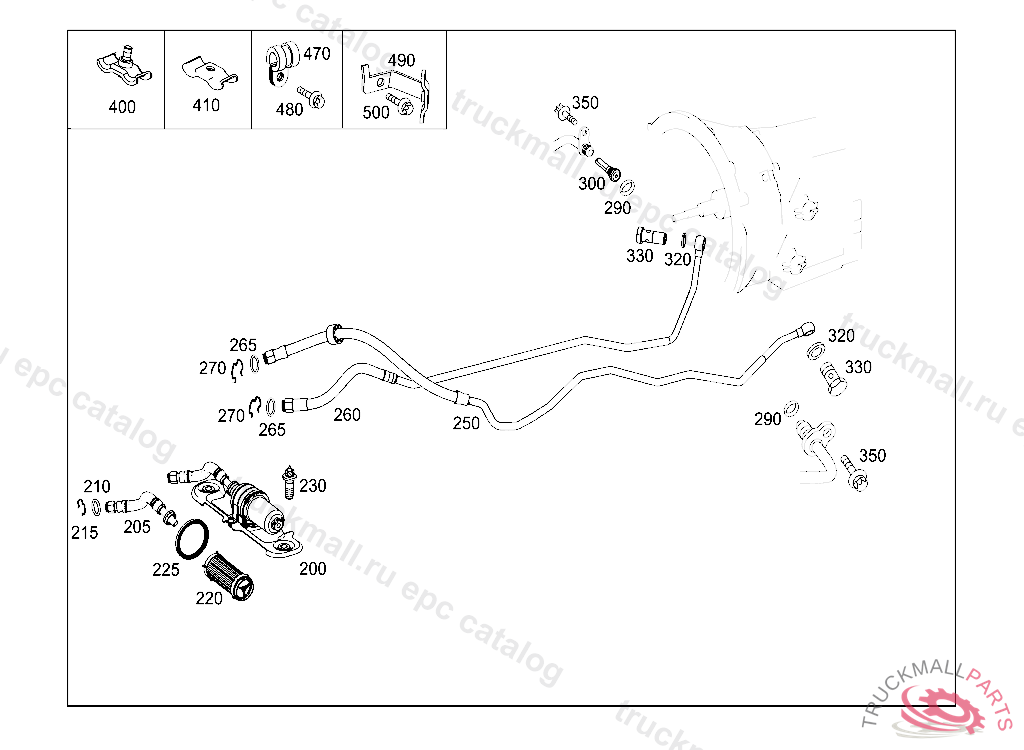

Поз.
Артикул
Описание
200
GEAR OIL FILTER
205
OIL LINE AT OIL FILTER
210
O-RING RIGHT 9.25X1.78
215
DETENT SPRING OIL LINE
220
GEAR OIL FILTER FILTER ELEMENT
225
PROFILE SEALING RING FILTER ELEMENT
230
HEXALOBULAR BOLT PLATE TO TRANSMISSION CASE M 10X25,TO A 970 260 02 46,04 46
250
OIL LINE FROM TRANSMISSION TO OIL COOLER,LEFT
250
OIL LINE
250
OIL LINE
260
OIL LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
260
OIL LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
260
OIL LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
260
OIL LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
265
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
270
DETENT SPRING OIL LINE
290
O-RING OIL LINE TO TRANSMISSION
320
SEAL RING OIL LINE TO TRANSMISSION 14X18
330
BANJO BOLT OIL LINE TO TRANSMISSION CASE
350
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
400
CLAMP FASTENING, TRANSMISSION FLUID LINES
400
FASTENING CLAMP TO OIL LINE
400
FASTENING CLAMP USED FOR PIPE LINES 12MM, M6X19
400
CLAMP OIL LINE ATTACHMENT
410
CLAMP OIL LINE ATTACHMENT
490
BRACKET OIL LINES TO TORQUE CONVERTER HOUSING
