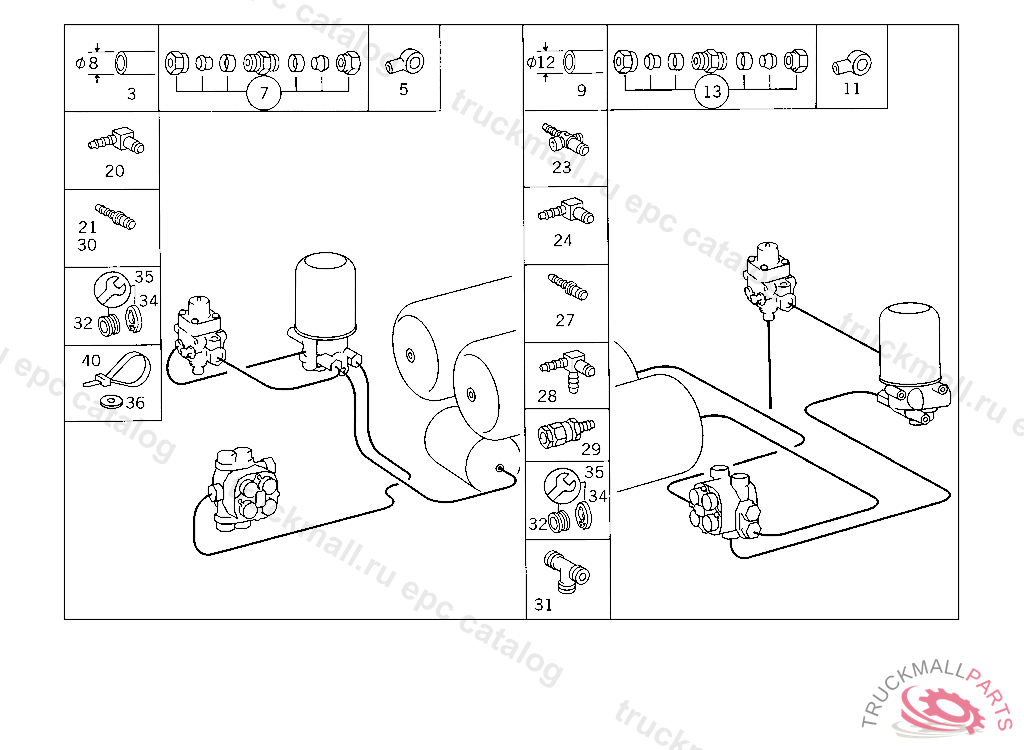

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
5
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
7
FITTING , Replaced By: A0029905971
7
FITTING (PARTS KIT),LINE RUPTURE
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
HOSE , Replaced By: A0009872827
11
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
11
BANJO UNION , Replaced By: N915052009009
13
FITTING (PARTS KIT),LINE RUPTURE
13
FITTING , Replaced By: A0029906171
20
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
20
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
20
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
20
ELBOW FITTING , Replaced By: A0049905371
20
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
20
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
20
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
21
CONNECTOR HOSE WIDTH, 6 MM, TO M22
21
CONNECTOR , Replaced By: A0029905478
21
CONNECTOR HOSE WIDTH, 6 MM,TO M16
23
DISTRIBUTOR LINE CONNECTION
23
DISTRIBUTOR LINE CONNECTION
23
DISTRIBUTOR LINE CONNECTION
24
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
24
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
24
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
27
CONNECTOR , Replaced By: A0029905478
27
CONNECTOR LINE CONNECTION
27
CONNECTOR HOSE WIDTH, 6 MM,TO M16
27
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
27
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
27
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
28
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
28
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
28
T-FITTING HOSE WIDTH, 6 MM
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
29
CONNECTOR HOSE WIDTH, 9 MM,TO M 16, NOT USED
30
CONNECTOR HOSE WIDTH, 6 MM,TO M16
30
CONNECTOR HOSE WIDTH, 6 MM,TO M16
30
CONNECTOR , Replaced By: A0029905478
30
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
30
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
31
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
31
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
31
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
32
LOCK RING LINE CONNECTION
32
LOCK RING LINE CONNECTION
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
SEAL RING , Replaced By: A0009940747
34
LOCK , Replaced By: A0009945448
34
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
34
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
34
LOCK LINE CONNECTION
34
LOCK LINE CONNECTION
35
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
35
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
35
REPAIR KIT , Replaced By: A0309971748
35
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
35
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
36
WASHER , Replaced By: A3609902340
36
WASHER BRACKET TO LEFT SIDE MEMBER
40
LOOM TIE LINE MOUNTING
40
LOOM TIE LINE MOUNTING 280 MM
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
AIR DEHYDRATOR"WABCO",5 9363665 812731
999
ANTI-FREEZE DEVICEWABCO
999
HEATER , Replaced By: A0005480870
999
HEATER , Replaced By: A0005480670
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
PROTECTIVE CAPWABCO
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
999
RESERVOIR , Replaced By: A0034322001
999
RESERVOIR ,5 934167, Replaced By: A0034320301
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
GASKET KIT SEAL RINGS KNORR,5 937586
999
SEAL HOLDER SEAL RINGS KNORR
999
VALVE (PRESSURE LIMIT VALVE)
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,K 186868
999
GASKET KITKNORR
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0049975736
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
999
FITTING LINE CONNECTION
999
SEAL RINGWABCO
999
SEAL RING , Replaced By: A0005480870
999
SEAL RING , Replaced By: A0179978148
999
SEAL RINGKNORR
999
BRACKET SOLENOID VALVE
999
BRACKET , Replaced By: A6764320240
999
BRACKET FLUID RESERVOIR,5 936365
999
SUPPORT FLUID RESERVOIR,5 287295SCHRAUBANSCHLUSS
999
BRACKET 3/2-WAY VALVE TO BRACKET,5 9363655 812730
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW , Replaced By: N304017008043
999
SCREW , Replaced By: N304017006016
999
SEAL RING LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW VALVE TO BRACKET
999
SCREW PUMP TO BRACKET
999
SCREW VALVE TO BRACKET M 8X55
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION HEATING CONNECTION,K 169122
