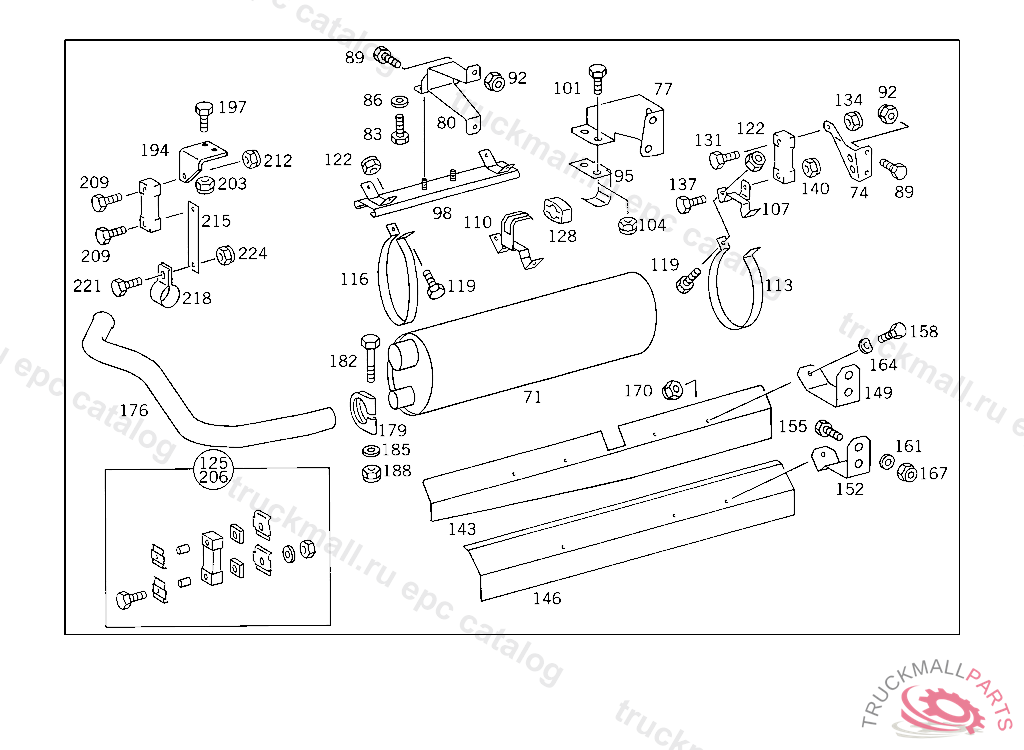

Поз.
Артикул
Описание
71
EXHAUST MUFFLER , Replaced By: A6764900501
71
EXHAUST MUFFLER
74
BRACKET EXHAUST MUFFLER,5 194472
77
BRACKET EXHAUST MUFFLER,5 1944735 337342
80
BRACKET ,5 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744904640, +001A6734901734
80
BRACKET EXHAUST MUFFLER
80
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
80
BRACKET , Replaced By: A6744902840
80
BRACKET EXHAUST MUFFLER TO BRACKET
80
BRACKET , Replaced By: A6744903740
80
BRACKET ,5 4783245 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744916241
80
BRACKET , Replaced By: A6744903840
80
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6744903140, +001A6744916241, +002N000933010145, +002N007349010003, +002N913004010008
80
BRACKET , Replaced By: A6744904440
83
SCREW REAR EXHAUST PIPE TO MUFFLER
86
WASHER , Replaced By: N007349010007
86
WASHER STRUT TO CROSS MEMBER
86
WASHER STRUT TO CROSS MEMBER
89
SCREW SUPPORT TO CROSS MEMBER M 10X28
92
NUT STRAP TO BRACKET
92
NUT STRAP TO BRACKET
92
NUT , Replaced By: N910113010000
95
SUPPORT REAR EXHAUST MUFFLER
98
SUPPORT EXHAUST MUFFLER TO BRACKET
98
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
98
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6734901434
101
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
107
BRACKET AT MUFFLER,5 194472
110
BRACKET AT MUFFLER,5 1944735 337342
113
BRACKET AT MUFFLER,5 337342
116
BRACKET , Replaced By: A6744914541
116
STRAP EXHAUST MUFFLER TO SIDE MEMBER
119
SCREW BRACKET TO SIDE MEMBER
119
SCREW BRACKET TO SIDE MEMBER
122
NUT EXHAUST PIPE TO SIDE MEMBER
122
NUT EXHAUST PIPE TO SIDE MEMBER
125
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
128
DAMPING PAD PARTICLE FILTER
131
SCREW VALVE TO BRACKET
131
SCREW VALVE TO BRACKET, Replaced By: N304014008002
134
NUT , Replaced By: N913004008001
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
SCREW VALVE TO BRACKET, Replaced By: N304014008002
137
SCREW VALVE TO BRACKET
140
NUT , Replaced By: A1201420072
140
HEXAGON NUT SCREENING PLATE,5 163561
143
PROTECTIVE PLATE , Replaced By: A6744901030, +001A6744922241
143
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
146
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
149
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744921941
149
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744922241, +001A6744901030
149
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
152
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
155
SCREW CONSOLE TO SIDE MEMBER
158
SCREW , Replaced By: A0079900801
158
SCREW CLAMP TO BRACKET AND TO PIPE
158
SCREW REDUCTION VALVE TO BRACKET
161
WASHER BRACKET TO FRAME
164
WASHER BRACKET TO LEFT SIDE MEMBER
164
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
164
WASHER , Replaced By: N009021008213
164
SPRING WASHER , Replaced By: N000137008212
167
NUT SUPPORT TO SIDE MEMBER
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT , Replaced By: N913004008001
176
REAR EXHAUST PIPE (TAIL PIPE),5 3373435 7435525 800001-5 803729
176
REAR EXHAUST PIPE ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764926004
176
REAR EXHAUST PIPE (TAIL PIPE),5 337342
176
REAR EXHAUST PIPE (TAIL PIPE),5 7435535 803730K 079962
176
REAR EXHAUST PIPE (TAIL PIPE),K 079963
179
CLAMP BRACKET TO EXHAUST PIPE
182
SCREW , Replaced By: N304014008021
182
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
185
WASHER , Replaced By: N000125008443
185
WASHER EXHAUST MUFFLER TO STRAP
188
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
188
NUT , Replaced By: N913004008001
194
BRACKET TAIL PIPE,FRONT,5 7435525 800001-5 803729
197
SCREW , Replaced By: N304017008034
197
SCREW BRACKET TO CROSS CONNECTION STRUT
203
NUT , Replaced By: N913004008001
203
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
203
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
206
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
209
SCREWM 8X40
212
NUT , Replaced By: N913004008001
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
218
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
218
CLAMP , Replaced By: N071555090502
221
SCREW BRACKET TO SIDE MEMBER
221
SCREW , Replaced By: N304017010002
224
NUT EXHAUST PIPE TO SIDE MEMBER
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET FUEL LINES TO TRANSMISSION
999
PROTECTIVE PLATE , NOT USED
999
WASHER , Replaced By: N006902011100
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3524920141
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
BRACKET BRACKET TO FILTER BRACKET
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N006902011102
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
WASHER HEAT SHIELD TO BRACKET
999
SCREW PIPE CLAMP
