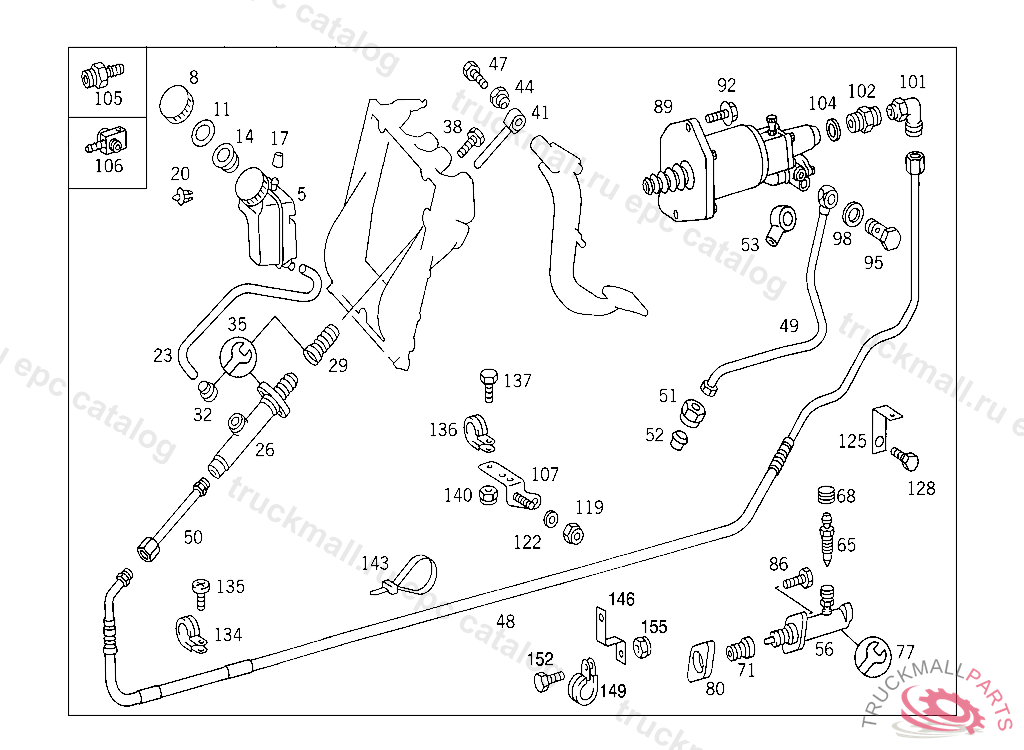

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
MASTER CYLINDER CLUTCH
26
MASTER CYLINDER , Replaced By: A0012959706
29
BOOT
32
PLUG
35
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
38
SCREW COVER PLATE TO BRACKET
41
ROD CLUTCH MASTER CYLINDER,5 366604
44
BUSHING PISTON ROD TO CLUTCH PEDAL
47
SCREW FITTING TO TRANSMISSION M8X32
48
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
48
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
51
UNION NUT LINE CONNECTION, Replaced By: N000000006239
51
UNION NUT LINE CONNECTION
52
SEAL CONE LINE CONNECTION
56
SLAVE CYLINDER CLUTCH ACTUATION
65
VALVE CLUTCH SLAVE CYLINDER
68
PROTECTIVE CAP ,5 962906
68
PROTECTIVE CAP , Replaced By: A0004217187
71
BOOT
77
REPAIR KIT CLUTCH SLAVE CYLINDER
80
FLANGE CLUTCH SLAVE CYLINDER TO BELL HOUSING
86
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X170
86
SCREW RADIATOR M 10X45
107
BRACKET CLUTCH LINE
119
NUT STRAP TO BRACKET
119
NUT , Replaced By: N910113010000
122
WASHER , Replaced By: N006902011100
122
WASHER , Replaced By: N006902011102
122
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
125
BRACKET CLUTCH LINE
128
SCREW BRACKET TO SUPPORT M 16X20
134
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
134
CLAMP ,K 147121, Replaced By: N000000000319
135
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
135
SCREW CLAMP TO BRACKET
136
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
136
CLAMP LINE MOUNTING
140
NUT , Replaced By: N913004006001
140
NUT PUMP TO BRACKET
143
LOOM TIE LINE MOUNTING 280 MM
146
BRACKET BRACKET ON SUPPORT,ENTRANCE,RIGHT
149
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
149
CLAMP ,K 147121, Replaced By: N000000000319
149
CLAMP PIPE ON FAN SHROUD
149
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
152
SCREW HOSE TO CAB M 6X25
152
SCREW AT FILTER BRACKET
155
NUT AT FILTER BRACKET
