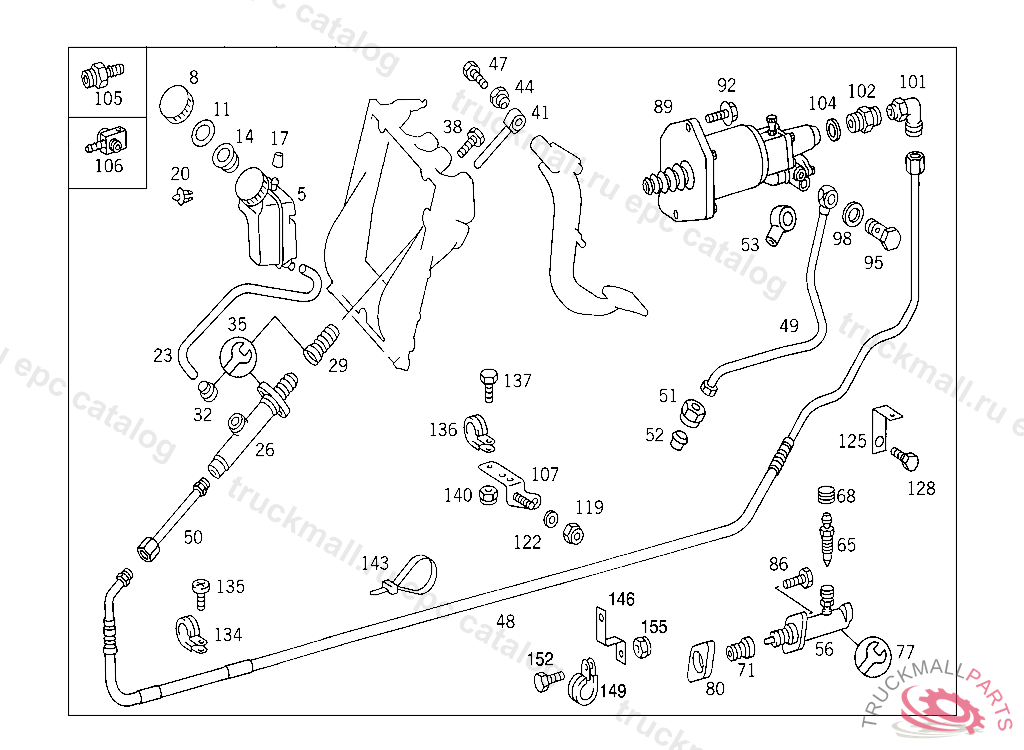

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
MASTER CYLINDER CLUTCH
26
MASTER CYLINDER CLUTCH,K 032902
29
BOOT
32
PLUG
35
REPAIR KIT CLUTCH MASTER CYLINDER,5 366604K 032902
35
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
38
SCREW COVER PLATE TO BRACKET
41
ROD CLUTCH MASTER CYLINDER,5 366604
44
BUSHING PISTON ROD TO CLUTCH PEDAL
47
SCREW FITTING TO TRANSMISSION M8X32
48
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
48
48
48
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
48
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
48
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
49
LINE FROM CLUTCH BOOSTER,CONNECTION "10",TO DISTRIBUTOR,CONNECTION: "20"
50
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
51
UNION NUT LINE CONNECTION
51
UNION NUT LINE CONNECTION, Replaced By: N000000006239
52
SEAL CONE LINE CONNECTION
53
BANJO UNION
56
SLAVE CYLINDER CLUTCH,5 599536
65
VALVE CLUTCH SLAVE CYLINDER
68
PROTECTIVE CAP , Replaced By: A0004217187
71
BOOT
77
REPAIR KIT CLUTCH SLAVE CYLINDER
80
FLANGE CLUTCH SLAVE CYLINDER,5 599536
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
86
SCREW , Replaced By: N304017010002
86
SCREW BRACKET TO SIDE MEMBER
89
CLUTCH BOOSTER ,5 962907
92
SCREW CLUTCH BOOSTER TO BELL HOUSING M 10X30,5 962907
95
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
98
SEAL RING. SEALING RING CLUTCH BOOSTER,CONNECTION: "10"
101
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
102
FITTING
104
SEAL RING FUEL LINE TO FEED PUMP
105
FITTING BULKHEAD FITTING,CONNECTION: "10"
106
CONNECTOR , Replaced By: A0019904078
106
CONNECTOR RELEASE BEARING LUBRICATION
107
BRACKET CLUTCH LINE
119
NUT STRAP TO BRACKET
122
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
125
BRACKET CLUTCH LINE
128
SCREW BRACKET TO SUPPORT M 16X20
134
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
135
SCREW CLAMP TO BRACKET
136
CLAMP LINE MOUNTING
136
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
137
SCREW PUMP TO BRACKET
140
NUT PUMP TO BRACKET
143
LOOM TIE LINE MOUNTING 280 MM
146
BRACKET BRACKET ON SUPPORT,ENTRANCE,RIGHT
149
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
149
CLAMP PIPE ON FAN SHROUD
149
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
149
CLAMP ,K 147121, Replaced By: N000000000319
152
SCREW HOSE TO CAB M 6X25
152
SCREW AT FILTER BRACKET
155
NUT AT FILTER BRACKET
