Поз.
Артикул
Описание

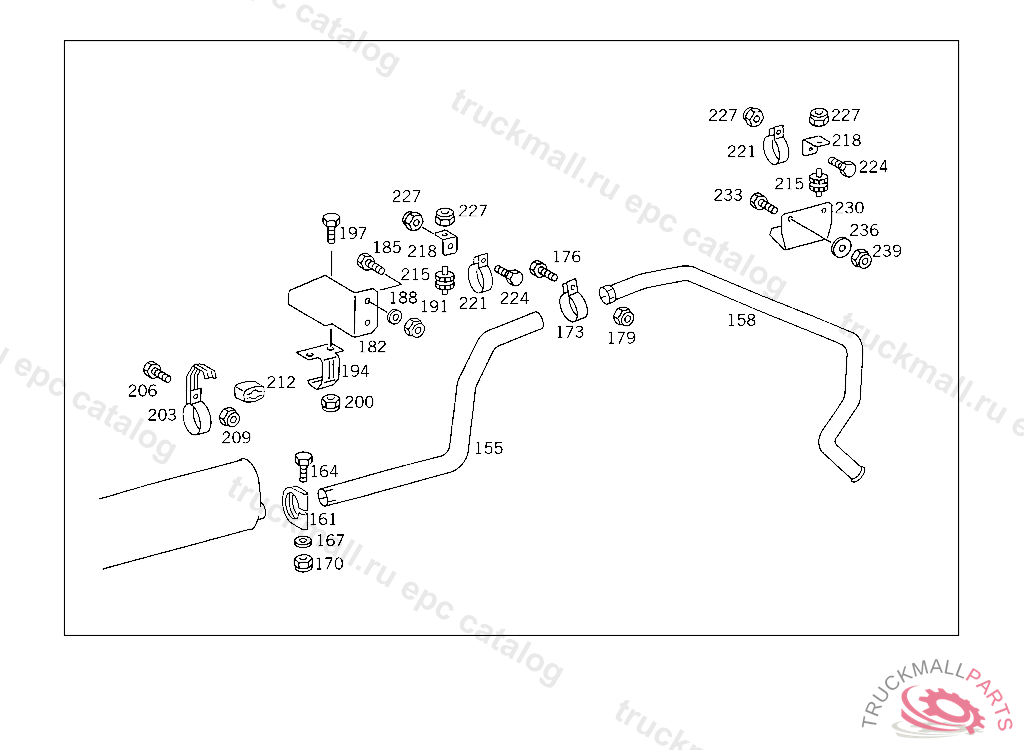

155
REAR EXHAUST PIPE FRONT PART
155
REAR EXHAUST PIPE ,5 337342, Replaced By: A6764923804
158
REAR EXHAUST PIPE (TAIL PIPE)
158
REAR EXHAUST PIPE REAR PART,5 337342
161
CLAMP BRACKET TO EXHAUST PIPE
164
SCREW , Replaced By: N304014008021
167
WASHER EXHAUST MUFFLER TO STRAP
167
WASHER , Replaced By: N000125008443
170
NUT , Replaced By: N913004008001
173
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
173
CLAMP , Replaced By: N071555094502
176
SCREW END PIECE TO EXHAUST PIPE M 10X25
179
NUT STRAP TO BRACKET
179
NUT , Replaced By: N910113010000
182
BRACKET CENTRAL EXHAUST PIPE TO LEFT SIDE MEMBER
185
SCREW BRACKET TO SIDE MEMBER
185
SCREW , Replaced By: N304017010002
188
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
188
WASHER , Replaced By: N006902011102
188
WASHER , Replaced By: N006902011100
191
NUT STRAP TO BRACKET
191
NUT , Replaced By: N910113010000
194
SUPPORT REAR EXHAUST MUFFLER
197
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
200
NUT STRAP TO BRACKET
200
NUT , Replaced By: N910113010000
203
BRACKET REAR EXHAUST PIPE TO BRACKET
206
SCREW BRACKET TO SIDE MEMBER
206
SCREW , Replaced By: N304017010002
209
NUT STRAP TO BRACKET
209
NUT , Replaced By: N910113010000
212
DAMPING PAD PARTICLE FILTER
215
RUBBER BUFFER BRACKET TO SUPPORT
215
RUBBER BUFFER BRACKET TO SUPPORT
218
BRACKET FUEL LINES TO TRANSMISSION
218
BRACKET FUEL LINES TO TRANSMISSION
218
BRACKET , Replaced By: A6205240340
221
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
224
SCREW BRACKET TO SIDE MEMBER
224
SCREW , Replaced By: N304017010002
227
NUT STRAP TO BRACKET
227
NUT STRAP TO BRACKET
227
NUT , Replaced By: N910113010000
230
BRACKET EXHAUST PIPE TO SIDE MEMBER
230
BRACKET EXHAUST PIPE TO SIDE MEMBER
233
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
233
SCREW , Replaced By: A0099900101
233
SCREW , Replaced By: N000933008337
236
WASHER BRACKET TO LEFT SIDE MEMBER
236
WASHER , Replaced By: N009021008213
239
NUT , Replaced By: N913004008001
999
WASHER HEAT SHIELD TO BRACKET
999
BRACKET HEAT SHIELD
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
PROTECTIVE PLATE , NOT USED
999
SCREW COVERING TO SUPPORT
