Поз.
Артикул
Описание
5

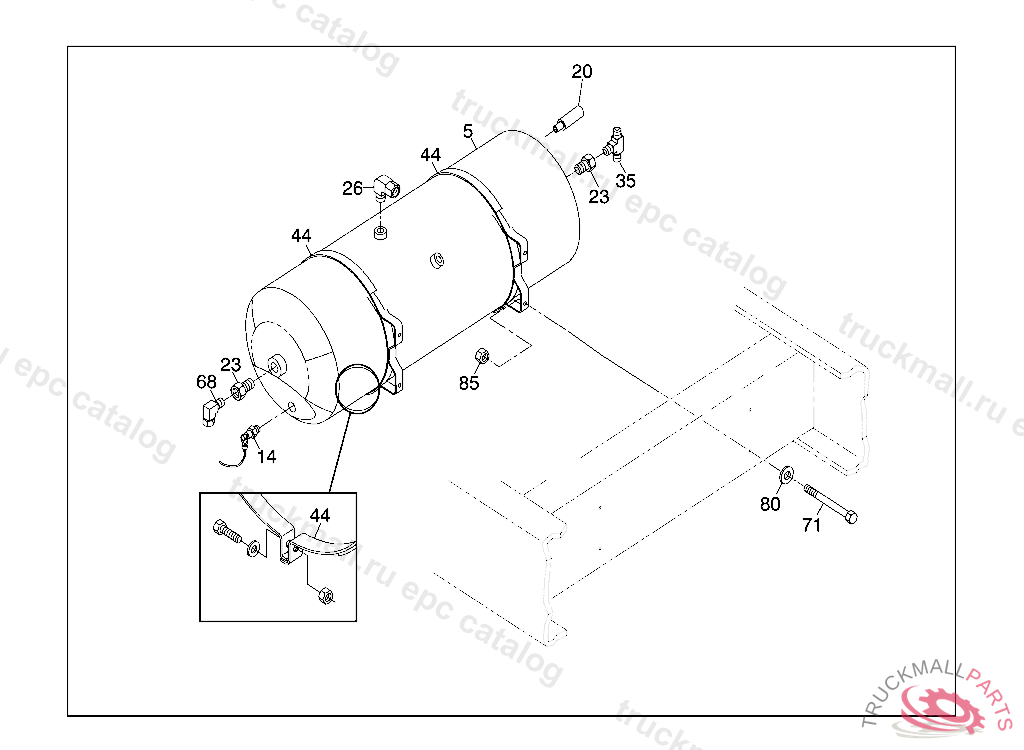

RESERVOIR AIR RESERVOIR 28.5 L
5
RESERVOIR AIR RESERVOIR, Replaced By: A6854300203
5
RESERVOIR AIR RESERVOIR4.5 LTS 276X1100MM
14
VALVE DRAIN VALVE
14
VALVE DRAIN VALVE
20
VALVE AT AIR RESERVOIR
23
FITTING AT AIR RESERVOIR
26
ELBOW FITTING REGENERATION TANK
26
ELBOW FITTING AT AIR RESERVOIR
35
T-FITTING
35
T-FITTING AT AIR RESERVOIR
35
T-FITTING , Replaced By: N210503000020
44
BRACKET AIR RESERVOIR
68
ELBOW FITTING45GR. NPTFM X 5/8T
71
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
80
WASHER SHIFTING ROD 3/8
85
NUT. PART NAME MISSING NUT
999
CLIP
999
METAL SECTION , ORDER BY THE METER
999
FITTING AT AIR RESERVOIR
999
FITTING AT AIR RESERVOIR, Replaced By: N210500000011
999
FITTING AT AIR RESERVOIR
999
PLUG OIL PRESSURE GAUGE
999
PLUG REGENERATION TANK BR 0,6MPT
999
WASHER HAND BRAKE VALVE 1/4
999
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
999
NUT AIR COMPRESSOR LINE 1/4X20
999
SCREW1/4 - 20
999
SCREW BRAKE LINE TO CROSS MEMBER5/16 - 18
999
CLAMP , Replaced By: QT01-27263-000
999
SCREW AIR RESERVOIR TO BRACKET 3/8-16
999
PART NAME MISSING SCREW
999
VALVE PRESSURE CONTROL VALVE
