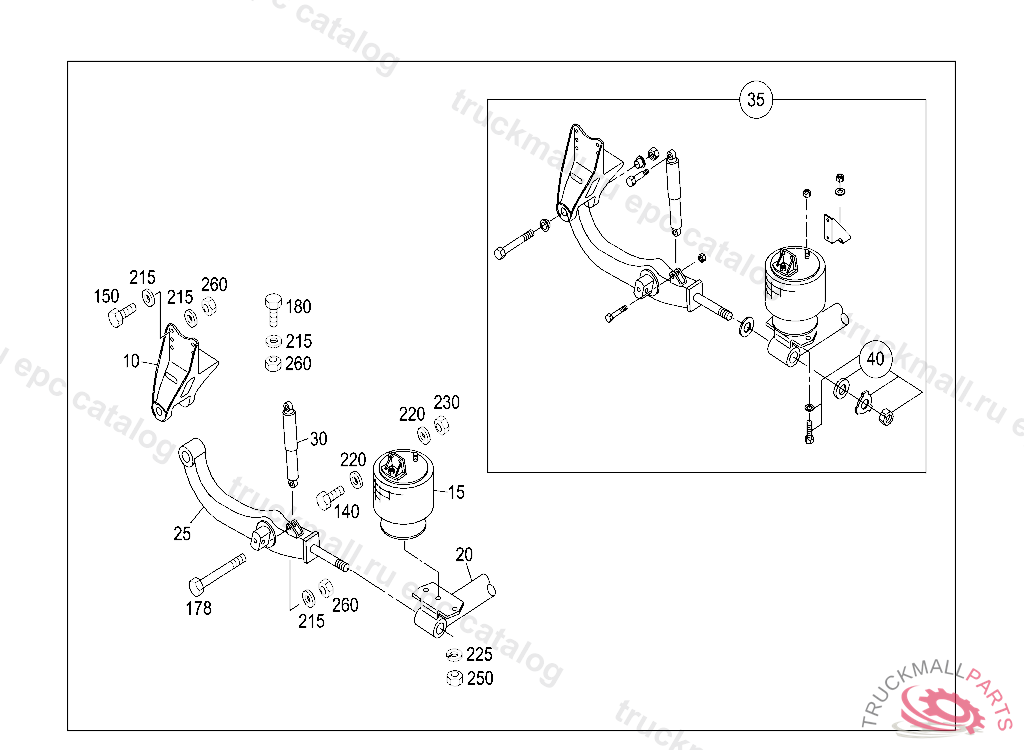

Поз.
Артикул
Описание
10
REAR SPRING BRACKET FRONT LEFT NEW 90520454
10
REAR SPRING BRACKET FRONT RIGHT NEW 90521463
10
SUPPORT
15
AIR SPRING BELLOWSNEW 90557313, WHEN REPLACING THE BELLOWS, ONLY USE PARTS FROM SAME SUPPLIERPER AXLE
15
AIR SPRING BELLOWSNEWAY 90557275, WHEN REPLACING THE BELLOWS, ONLY USE PARTS FROM SAME SUPPLIERPER AXLE
20
SUPPORT AIR SPRING BELLOWS NEW 90546255
25
SUPPORT RIGHT NEW 90516740
25
SUPPORT LEFT NEW 90516741
30
SHOCK ABSORBERNEW 90045416, M 006872
30
SHOCK ABSORBER , M 006873
35
REPAIR KIT MOUNTING PARTS NEW 33005216
40
REPAIR KIT MOUNTING PARTS NEW 33005217
140
STUD FRONT SPRING REAR BRACKET TO SIDE MEMBER 5/8-11
150
STUD3/4-10X2,75
178
SCREW3/4-10
180
SCREW3/4-10X3,5
215
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
220
WASHER5/8-1.312-.149 Z
225
LOCK WASHER1/2
230
NUT5/8-11,M 026123
250
NUT1/2-13
260
NUT3/4
999
LINK REPAIR KIT
999
PLATE
999
WASHER
999
STUD5/8-11,M 026123
999
SCREW3/4-10
999
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
999
PART NAME MISSING1/2-13
