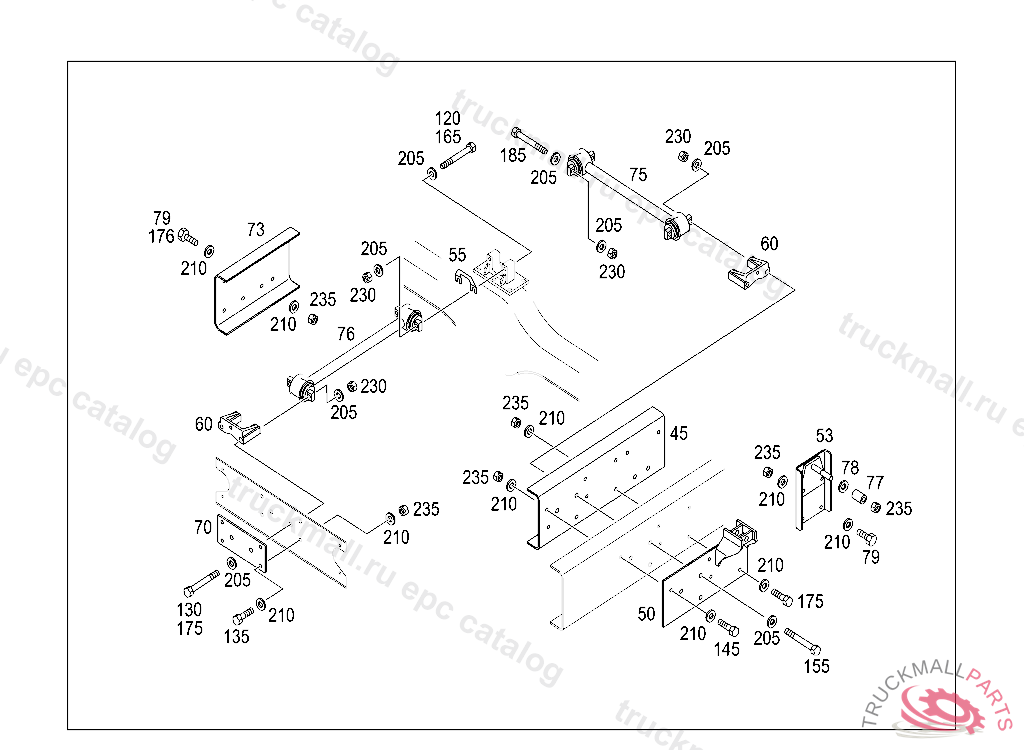

OMC 1419,1423,1425,1426,1623,1625,1626 - 685.521 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
45
BRACKET FRAME TRUSSING
45
BRACKET
45
BRACKET LEFT
50
BRACKET SHOCK ABSORBER
53
BRACKET SHOCK ABSORBER
55
BRACKET LINK
60
TRUSS LEFT
60
SHIM
70
TRUSS
70
PLATE , NOT USED
73
TRUSS RIGHT
75
LINK
75
LINK ,M 007660
76
TORSION BAR
77
SPACER TUBE
78
THRUST WASHER3/4
79
PART NAME MISSING1/2-13
120
SCREW5/8-11
130
STUD5/8-11
135
SCREW SUPPORT TO ALTERNATOR 1/2-13
145
SCREW1/2-13, NOT USED
155
STUD5/8-11, NOT USED
165
STUD5/8-11
175
SCREW1/2-13, NOT USED
175
PART NAME MISSING1/2-13
176
PART NAME MISSING1/2-13
185
SCREW5/8-11
185
STUD5/8-11, NOT USED
205
WASHER5/8, NOT USED
210
PART NAME MISSING CONSOLE TO FRAME 1/2
230
NUT5/8-11,M 026123
235
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
LINK REPAIR KIT
999
PLATE
999
WASHER
999
STUD5/8-11,M 026123
999
SCREW3/4-10
999
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
