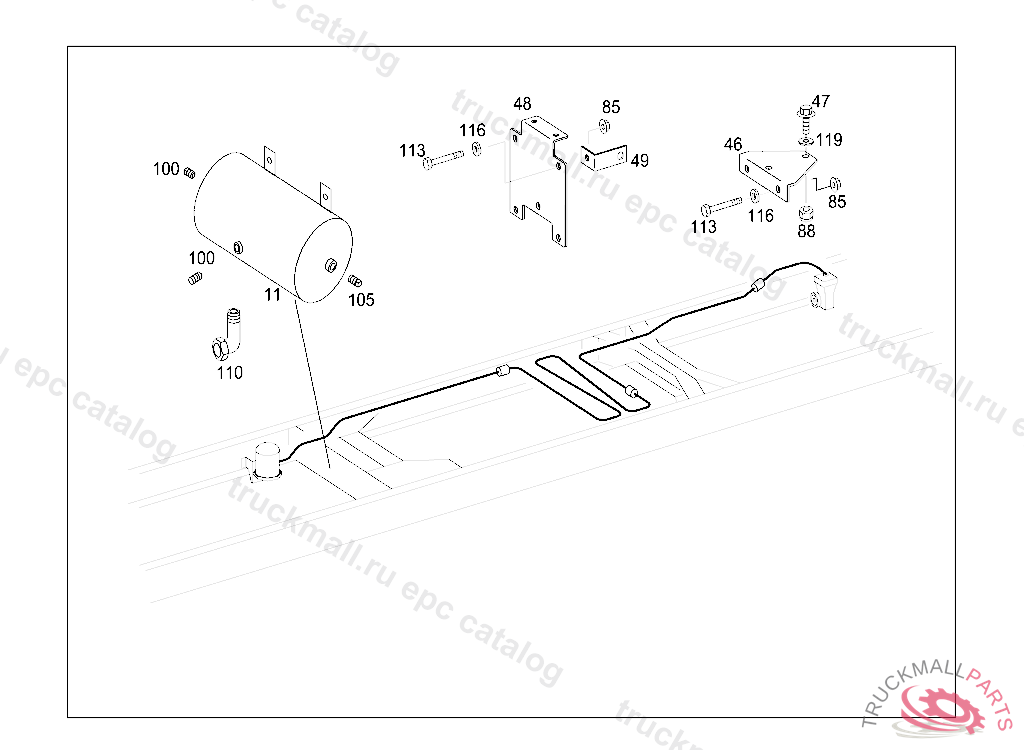

Поз.
Артикул
Описание
11
RESERVOIR AIR RESERVOIR4.5 LTS 276X1100MM
46
BRACKET AIR RESERVOIR
47
PART NAME MISSING SCREW
48
BRACKET AIR RESERVOIR OBEN
49
BRACKET AIR RESERVOIR UNTEN
85
NUT. PART NAME MISSING NUT
88
PART NAME MISSING NUT
100
PLUG OIL PRESSURE GAUGE
105
PLUG REGENERATION TANK BR 0,6MPT
110
ELBOW FITTING REGENERATION TANK
113
PART NAME MISSING SCREW
116
WASHER SHIFTING ROD 3/8
119
WASHER VALVE TO BRACKET 5/16-.640
999
CLIP
999
METAL SECTION , ORDER BY THE METER
999
FITTING AT AIR RESERVOIR
999
FITTING AT AIR RESERVOIR, Replaced By: N210500000011
999
FITTING AT AIR RESERVOIR
999
WASHER HAND BRAKE VALVE 1/4
999
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
999
NUT AIR COMPRESSOR LINE 1/4X20
999
SCREW1/4 - 20
999
SCREW BRAKE LINE TO CROSS MEMBER5/16 - 18
999
CLAMP , Replaced By: QT01-27263-000
999
SCREW AIR RESERVOIR TO BRACKET 3/8-16
999
VALVE PRESSURE CONTROL VALVE
