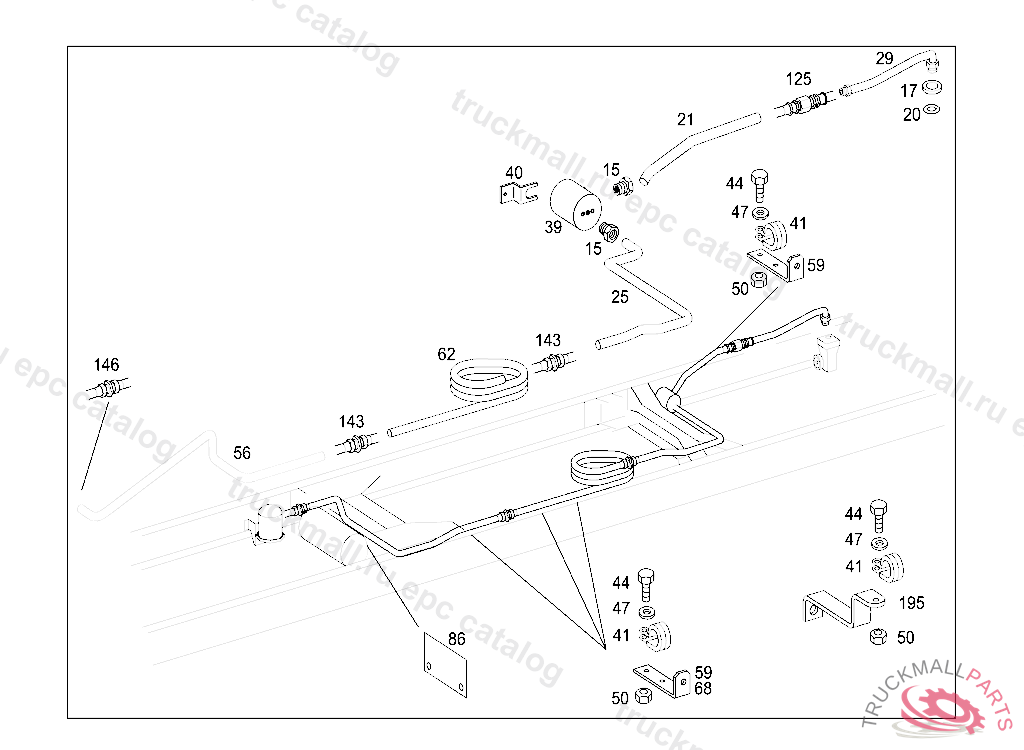

Поз.
Артикул
Описание
15
HOSE CONNECTION CONNECTION OF COMPRESSED AIR LINEM22X1.5MM / PARKER
17
THRUST RING SUCTION LINE TO OIL PUMP
20
SEAL RING LINE CONNECTION
21
COMPRESSED AIR LINE AIR COMPRESSOR LINE
21
COMPRESSED AIR LINE AIR COMPRESSOR LINE
21
COMPRESSED AIR LINE AIR COMPRESSOR LINE
21
COMPRESSED AIR LINE AIR COMPRESSOR LINE
25
COMPRESSED AIR LINE AIR COMPRESSOR LINE
25
COMPRESSED AIR LINE AIR COMPRESSOR LINE
29
BRAKE HOSE AIR COMPRESSOR LINE
29
HOSE , Replaced By: A6854290835
29
LINE AIR COMPRESSOR LINE
39
RESERVOIR AIR RESERVOIR V,D 196083
40
BRACKET AIR RESERVOIR BRACKET TO FRAME
41
CLAMP 19.05MM
44
PART NAME MISSING , Replaced By: A6889900001
44
SCREW HAND BRAKE VALVE 1/4-20
44
SCREW CABLE MOUNTING 1/4-20
44
SCREW BRAKE LINE TO CROSS MEMBER5/16 - 18
44
SCREW LINE MOUNTING 1/4-20
47
WASHER HAND BRAKE VALVE 1/4
47
WASHER VALVE TO BRACKET 5/16-.640
50
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
50
PART NAME MISSING NUT
56
COMPRESSED AIR LINE
56
COMPRESSED AIR LINE
59
BRACKET COMPRESSED AIR LINE BRACKET TO FRAME
59
BRACKET LINE MOUNTING
59
BRACKET344X281
62
COMPRESSED AIR LINE
68
BRACKET LINE MOUNTING
86
BACKPLATE 85X42MM
125
CONNECTOR AIR COMPRESSOR LINE
125
CONNECTOR CONNECTOR
125
FITTING CONNECTOR
125
HOSE CONNECTION CONNECTOR
143
CONNECTOR
143
HOSE CONNECTION AIR COMPRESSOR LINE
146
HOSE CONNECTION AIR COMPRESSOR LINEPARKER 12-8FBU-S
195
BRACKET LINE MOUNTING
999
LINE AIR COMPRESSOR LINE
999
LINE AIR COMPRESSOR LINE
999
LINE AIR COMPRESSOR LINE
999
LINE AIR COMPRESSOR LINE
999
LINE , Replaced By: A6854291301
999
ELBOW FITTING
999
ELBOW FITTING
999
HOSE AIR COMPRESSOR LINE
999
LINE AIR COMPRESSOR LINE
999
LINE AIR COMPRESSOR LINE
