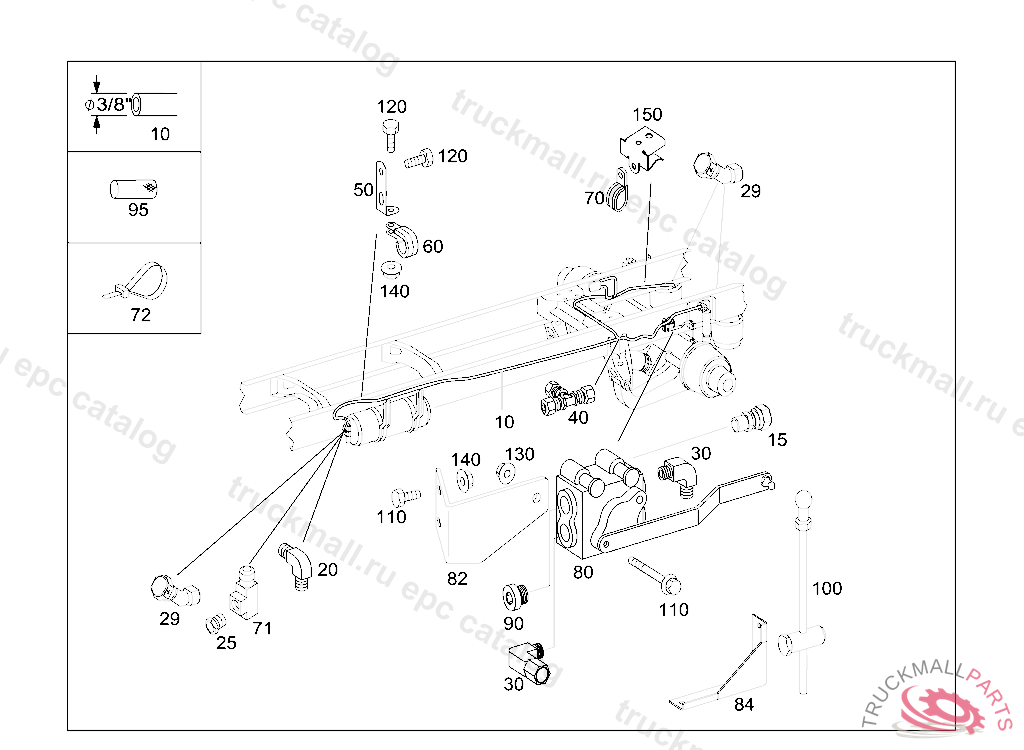

Поз.
Артикул
Описание
10
PLASTIC PIPE BLUE 3/8, ORDER BY THE METER
15
FITTING
20
ELBOW FITTING
25
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
29
ELBOW FITTING45 GR. 1/4 NPTFM X 3/8 T
30
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
40
FITTING90 GR. 1/4 NPTFM X 1/4 NPTH
50
ANGLE LINE CONNECTION,GLAND SCREW-CONNECTION
60
CLAMP BREATHER PIPE TO BRACKET 3/8,M 027567
70
CLAMP
70
CLAMP , Replaced By: QT01-27263-000
71
T-FITTING ,M 009558
72
STRAP TO HOSE
80
VALVEWABCO
82
BRACKET VALVE
84
BRACKET
90
PLUG OIL PRESSURE GAUGE
95
INSULATING HOSE
100
CONNECTOR
110
SCREW5/16-18
110
SCREW5/16
110
SCREW5/16" UNC 2.50"
110
PART NAME MISSING SCREW
120
SCREW HAND BRAKE VALVE 1/4-20
120
SCREW CABLE MOUNTING 1/4-20
130
PART NAME MISSING NUT
140
NUT AIR COMPRESSOR LINE 1/4X20
140
PART NAME MISSING NUT3/8" - 16
150
LOOM TIE BRAKE HOSE FIXTURE
999
VALVE
999
ELBOW FITTING
999
NUT LEVER TO SHIFTING SHAFT
999
FITTING1/8" NPT X 1/4" T
999
ELBOW FITTING ,M 027041
999
ELBOW FITTING AT AIR RESERVOIR
999
PLUG
999
BRACKET
999
LOOM TIE
999
VALVE
999
VALVE
999
VALVE
999
LINK
999
BRACKET VALVE
999
BRACKET
999
BRACKET
999
WASHER SHIFTING ROD 3/8
999
WASHER VALVE TO BRACKET 5/16-.640
999
SCREW BRACKET MOUNTING 1/4-20
999
SCREW LINE MOUNTING 5/16-18
999
SCREW 5/16 -1
999
LOOM TIE
999
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
999
NUT5/8-11,M 026123
999
NUT3/4
999
WASHER1/4
999
LOOM TIE
999
COTTER PIN3/32X1-1/4
999
PART NAME MISSING , Replaced By: A6889900040
999
NUT. PART NAME MISSING NUT
999
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
SLEEVEL00 SL13R
999
REPAIR KIT LINKAGE NEW 90554687
