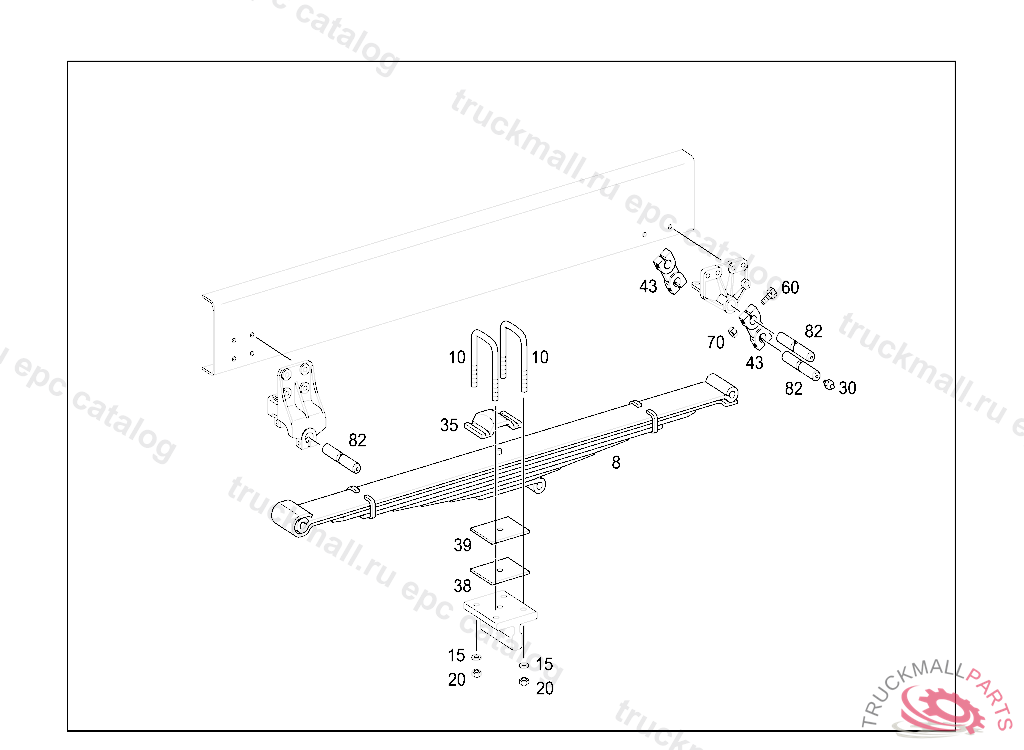

Поз.
Артикул
Описание
8
FRONT SPRING
8
PART NAME MISSING , Replaced By: A6853210101
8
FRONT SPRING
8
FRONT SPRING
10
CLAMP FRONT SPRINGS TO FRONT AXLE
10
CLAMP FRONT SPRINGS TO FRONT AXLE, Replaced By: A6853220325
10
CLAMP FRONT SPRINGS TO FRONT AXLE, Replaced By: A6853220225
10
CLAMP , Replaced By: A6853220125
10
CLAMP FRONT SPRINGS TO FRONT AXLE
10
CLAMP FRONT SPRINGS TO FRONT AXLE
10
CLAMP
15
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
20
NUT SHIM TO AXLE 3/4-16
20
NUT STEERING MOUNTING 3/4-16
20
NUT , Replaced By: QT23-13179-212
20
NUT FRONT SPRINGS TO FRONT AXLE 3/4-16, Replaced By: QT23-13833-212
20
PART NAME MISSING FRONT SPRINGS TO FRONT AXLE 3/4-16, Replaced By: QT23-00461-006
30
GREASE NIPPLE , Replaced By: HLM6859970488
30
GREASE NIPPLE SHACKLE PIN
35
PLATE
38
PLATE , Replaced By: A6853220084
38
SHIM
39
PLATE
43
SHACKLE
60
PART NAME MISSING. SCREW PIN IN SHACKLE 1/2-13
70
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
70
PART NAME MISSING1/2-13
82
PIN , Replaced By: A6853220030
82
SHACKLE PIN171,5X31,75MM
