Поз.
Артикул
Описание

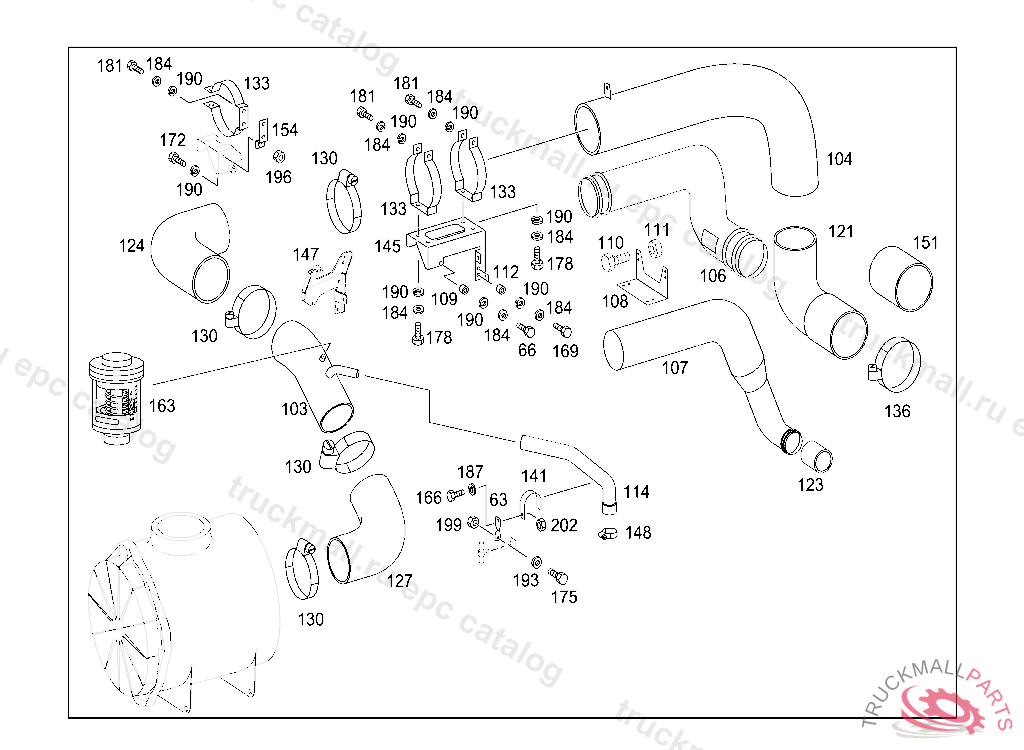

63
BRACKET
66
SCREW BRACKET M10X150MM
66
SCREW BRACKET M10X140MM
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE ,M 026123
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE ,M 032242
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE
103
AIR INTAKE PIPE , Replaced By: A6855202501
103
LINE ,M 006086
103
AIR INTAKE PIPE ,M 026122
103
AIR INTAKE PIPE ,M 006087
104
AIR INTAKE PIPE , Replaced By: A6855282907
104
AIR INTAKE PIPE , Replaced By: A6855200401
104
LINE
104
PIPE ELBOW
104
AIR INTAKE PIPE ,M 029319
104
AIR INTAKE PIPE ,M 033721
104
AIR INTAKE PIPE ,M 029318
104
AIR INTAKE PIPE
104
AIR INTAKE PIPE ,M 029318
104
AIR INTAKE PIPE
106
PIPE ELBOW ,M 028965
106
PIPE ELBOW
106
PIPE ELBOW
107
AIR INTAKE PIPE 457MM
107
AIR INTAKE PIPE ,M 029318
107
AIR INTAKE PIPE ,M 033721
107
PIPE ELBOW
108
BRACKET
109
PIPE73,5 MM,M 009291M 023436
109
BUSHING18,5MM,M 028547
109
BUSHING 65MM
109
BUSHING
109
SPACER TUBE
109
SPACER TUBE73,5 MM
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
111
NUT , Replaced By: N913023010002
112
BUSHING34MM,M 023437
112
SPACER TUBE
112
SPACER TUBE39MM
114
HOSE
114
HOSE , Replaced By: A6855287382
114
HOSE , Replaced By: A6855289282
114
HOSE 421MM
114
HOSE380 MM
114
HOSE AIR INTAKE 114MM
114
MOLDED HOSE 437MM
114
HOSE114MM
114
HOSE
114
HOSE480 MM
121
HOSE
121
HOSE ,M 007882
123
HOSE
124
HOSE AIR INTAKE
124
PIPE ELBOW
127
PIPE ELBOWHUN 90HL70R50C18,M 005658
127
HOSE AIR INTAKE
127
HOSE ,M 005659
130
CLAMP SCREENING PLATE
130
CLAMP
130
CLAMP
133
CLAMP5"
133
CLAMP HOSE FASTENING 4"
136
CLAMP SCREENING PLATE
136
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
136
CLAMP , Replaced By: N000000000674
141
CLAMP
145
AIR INTAKE PIPE BRACKET,M 023436
145
BRACKET ,M 023437
145
BRACKET ,M 023436
147
BRACKET
148
CLAMP HOSE FASTENING 73,5 MM
151
SLEEVE AIR INTAKE PIPE TO TURBOCHARGER
151
HOSE ,M 009291
151
HOSE
154
BRACKET AIR INTAKE
163
VACUUM BOX
166
SCREW , Replaced By: N304017010040
166
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
166
SCREW CABLE MOUNTING 1/4-20
169
SCREW , Replaced By: N000933010347
169
SCREW BRACKET TO TRANSMISSION,D 203092
169
SCREW
172
SCREW ANGLE TO CROSS MEMBER M 10X30
175
PART NAME MISSING SCREW
178
SCREW , Replaced By: N304017010040
181
SCREW BRACKET TO RETARDER
184
WASHER GROUND CABLE
187
LOCK WASHER , Replaced By: N912004010102
187
WASHER HAND BRAKE VALVE 1/4
190
LOCK WASHER , Replaced By: N912004010102
193
WASHER BRACKET MOUNTING 3/8
193
WASHER SHIFTING ROD 3/8
196
NUT BRACKET TO SIDE MEMBER,XB209706
199
NUT. PART NAME MISSING NUT
202
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
999
HOSE , Replaced By: A6855287382
999
WASHER HAND BRAKE VALVE 1/4
999
WASHER SHIFTING ROD 3/8
999
BRACKET OIL COOLER
999
BRACKET
999
SCREW CABLE MOUNTING 1/4-20
999
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
999
CLAMP
999
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
999
CLAMP
