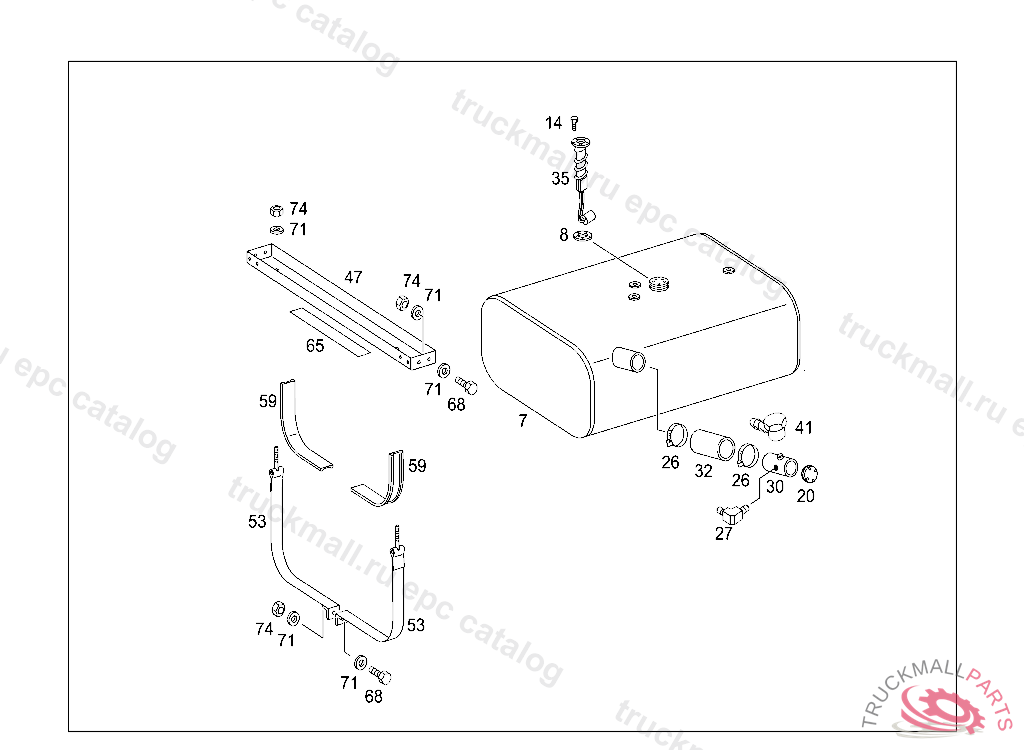

OMC 1419,1423,1425,1426,1623,1625,1626 - 685.521 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
7
FUEL TANK54 GAL
8
GASKET
14
SCREW10-32
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP
20
FILLER CAP , Replaced By: QT03-33903-001
26
CLAMP
27
ELBOW FITTING90GR 12NYLX12MPT
30
FILLER NECK
30
HOSE , Replaced By: A6854700020
32
HOSE
35
SENDER UNIT
35
SENDER UNIT
41
CHECK VALVE (RELIEF VALVE)
47
BRACKET
47
SUPPORT
47
BRACKET
47
SUPPORT , Replaced By: A6854700142
47
SUPPORT
53
STRAP
53
STRAP
53
STRAP
59
LEDGE
59
LEDGE
59
LEDGE
65
LEDGE
68
PART NAME MISSING1/2-13
68
PART NAME MISSING1/2-13
68
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
71
PART NAME MISSING CONSOLE TO FRAME 1/2
74
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
ANGLE STRAP
999
CLAMPING SCREW STRAP
999
STRAP STRAP
999
PROTECTIVE STRIP
